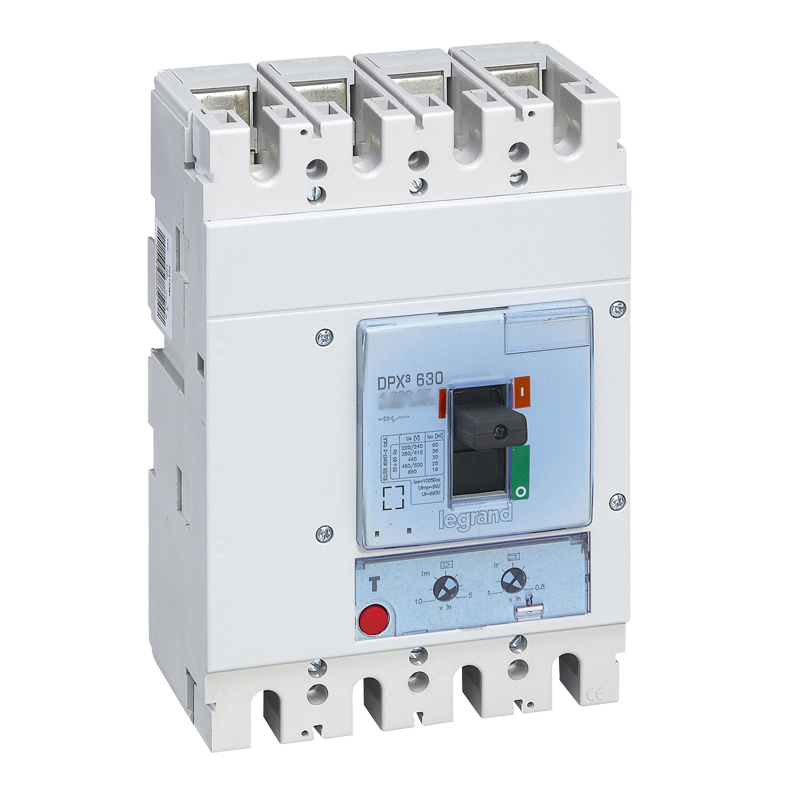

WYŁĄCZNIK DPX3 630 TM 4P 320A 36kA, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 422006 |
GTIN(EAN) | 3414970378026 |
Price unit | piece |
Catalog price | 7 720,54 zł (6 276,86 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Adjustment range short-term delayed short-circuit release: | 1600 - 3200 A |
Motor drive integrated: | no |
Type of control element: | Toggle |
Degree of protection (IP): | IP30 |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 36 kA |
Rated permanent current Iu: | 320 A |
Number of auxiliary contacts as change-over contact: | 2 |
With switched-off indicator: | yes |
Number of auxiliary contacts as normally closed contact: | 2 |
Integrated earth fault protection: | no |
Adjustment range undelayed short-circuit release: | 1600 - 3200 A |
Motor drive optional: | yes |
With integrated under voltage release: | yes |
Position of connection for main current circuit: | Front side |
Suitable for DIN rail (top hat rail) mounting: | no |
Device construction: | Built-in device fixed built-in technique |
Number of poles: | 4 |
Rated voltage: | 220 - 690 V |
Type of electrical connection of main circuit: | Screw connection |
Overload release current setting: | 256 - 320 A |
DIN rail (top hat rail) mounting optional: | no |
Complete device with protection unit: | yes |
