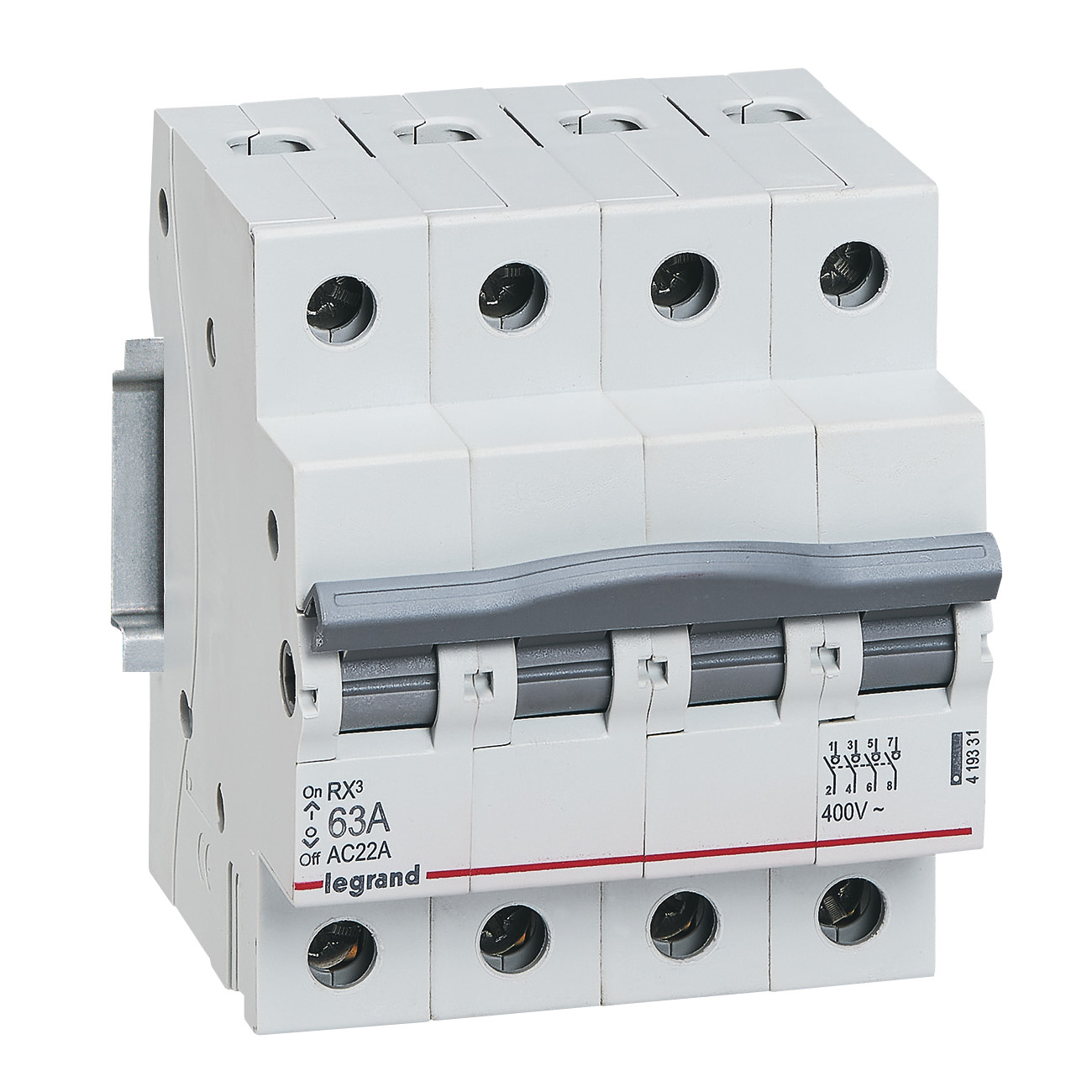

ROZŁĄCZNIK IZOLACYJNY RX3 63A 4P, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 419331 |
| GTIN(EAN) | 3414972038041 |
| Price unit | piece |
| Catalog price | 171,24 zł (139,22 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Polska |
| ETIM class: | Switch disconnector (low voltage) |
| Version as safety switch: | no |
| Version as maintenance-/service switch: | no |
| Version as main switch: | yes |
| Number of auxiliary contacts as normally open contact: | 0 |
| Max. rated operation voltage Ue AC: | 400 V |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Interlockable: | no |
| Rated short-time withstand current lcw: | 0.756 kA |
| Voltage release optional: | no |
| Degree of protection (NEMA): | 1 |
| Device construction: | Complete device in housing |
| Number of poles: | 4 |
| Type of electrical connection of main circuit: | Cable clamp |
| Version as emergency stop installation: | no |
| Motor drive integrated: | no |
| Number of switches: | 1 |
| Version as reversing switch: | no |
| Rated permanent current Iu: | 63 A |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Switching power at 400 V: | 25.2 kW |
| Suitable for intermediate mounting: | no |
| Motor drive optional: | no |
| Suitable for floor mounting: | no |
| Colour control element: | Grey |
| Suitable for distribution board installation: | yes |
| Rated operating voltage: | 400 - 400 V |
| Degree of protection (IP), front side: | IP20 |
