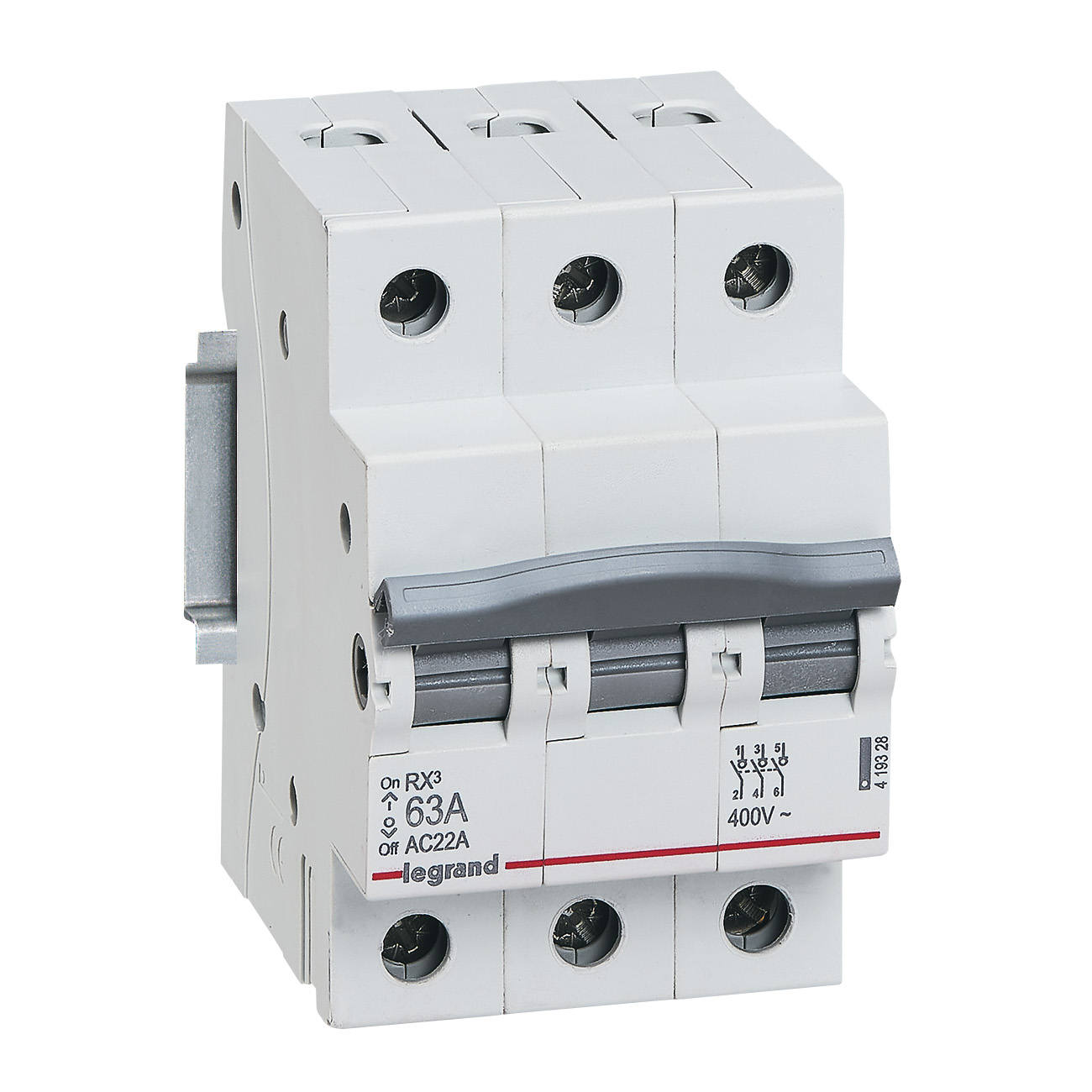

ROZŁĄCZNIK IZOLACYJNY RX3 63A 3P, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 419328 |
GTIN(EAN) | 3414972037952 |
Price unit | piece |
Catalog price | 131,36 zł (106,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Switch disconnector (low voltage) |
Version as safety switch: | no |
Version as maintenance-/service switch: | no |
Version as main switch: | yes |
Number of auxiliary contacts as normally open contact: | 0 |
Max. rated operation voltage Ue AC: | 400 V |
Number of auxiliary contacts as change-over contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Interlockable: | no |
Rated short-time withstand current lcw: | 0.756 kA |
Voltage release optional: | no |
Degree of protection (NEMA): | 1 |
Device construction: | Complete device in housing |
Number of poles: | 3 |
Type of electrical connection of main circuit: | Cable clamp |
Version as emergency stop installation: | no |
Motor drive integrated: | no |
Number of switches: | 1 |
Version as reversing switch: | no |
Rated permanent current Iu: | 63 A |
Suitable for front mounting 4-hole: | no |
Suitable for front mounting centre: | no |
Switching power at 400 V: | 25.2 kW |
Suitable for intermediate mounting: | no |
Motor drive optional: | no |
Suitable for floor mounting: | no |
Colour control element: | Grey |
Suitable for distribution board installation: | yes |
Rated operating voltage: | 400 - 400 V |
Degree of protection (IP), front side: | IP20 |
