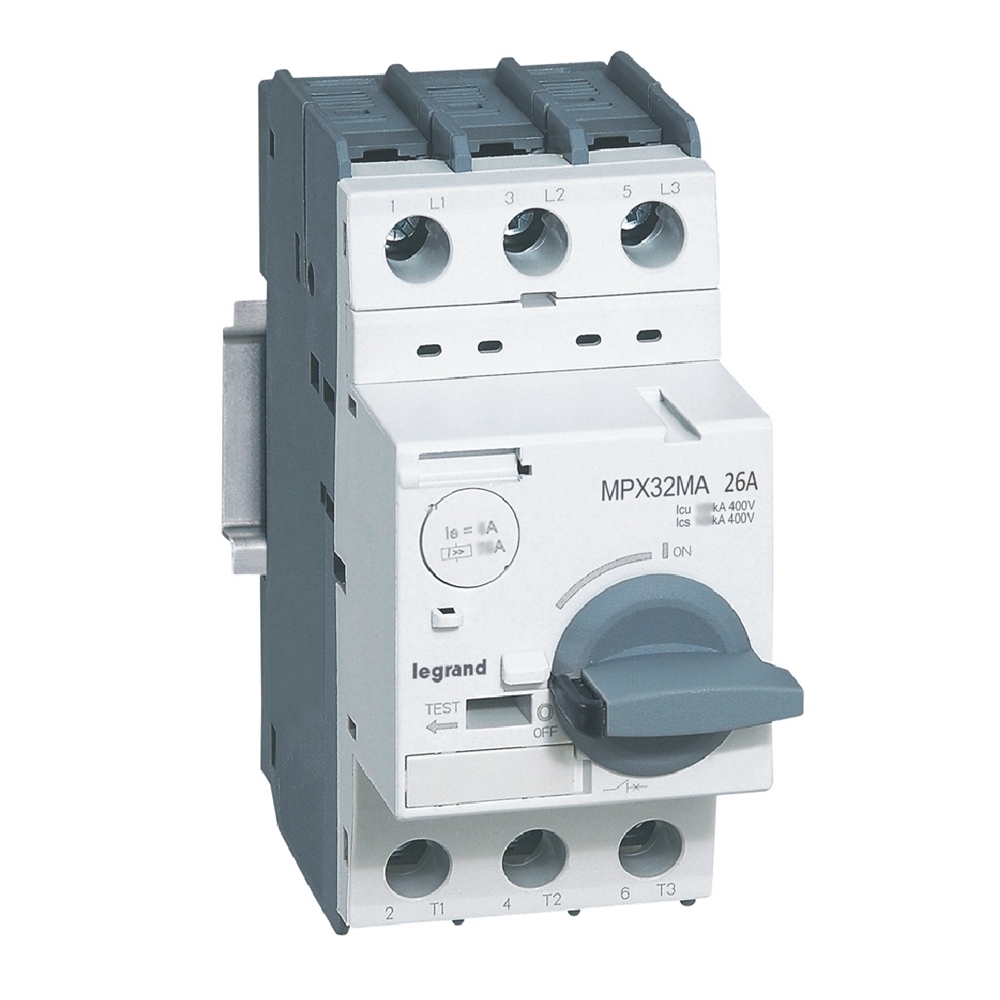

WYŁĄCZNIK SILNIKOWY MPX3 32MA 26A TYLKO Z WYZWALACZEM MAGNETYCZNYM, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 417354 |
GTIN(EAN) | 3414970395955 |
Price unit | piece |
Catalog price | 525,32 zł (427,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Motor protection circuit-breaker |
Switch off technique: | Magnetic |
Height: | 94 mm |
Type of control element: | Turn button |
With thermal overload protection: | no |
Degree of protection (IP): | IP20 |
Rated operation power at AC-3, 230 V: | 5.5 kW |
With integrated auxiliary switch: | yes |
Rated operation power at AC-3, 400 V: | 11 kW |
Phase failure sensitive: | no |
Rated permanent current Iu: | 26 A |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
Adjustment range undelayed short-circuit release: | 338 - 338 A |
With integrated under voltage release: | yes |
Device construction: | Built-in device fixed built-in technique |
Number of poles: | 3 |
Rated operating voltage: | 220 - 690 V |
Depth: | 99.6 mm |
Type of electrical connection of main circuit: | Frame clamp |
Width: | 45 mm |
