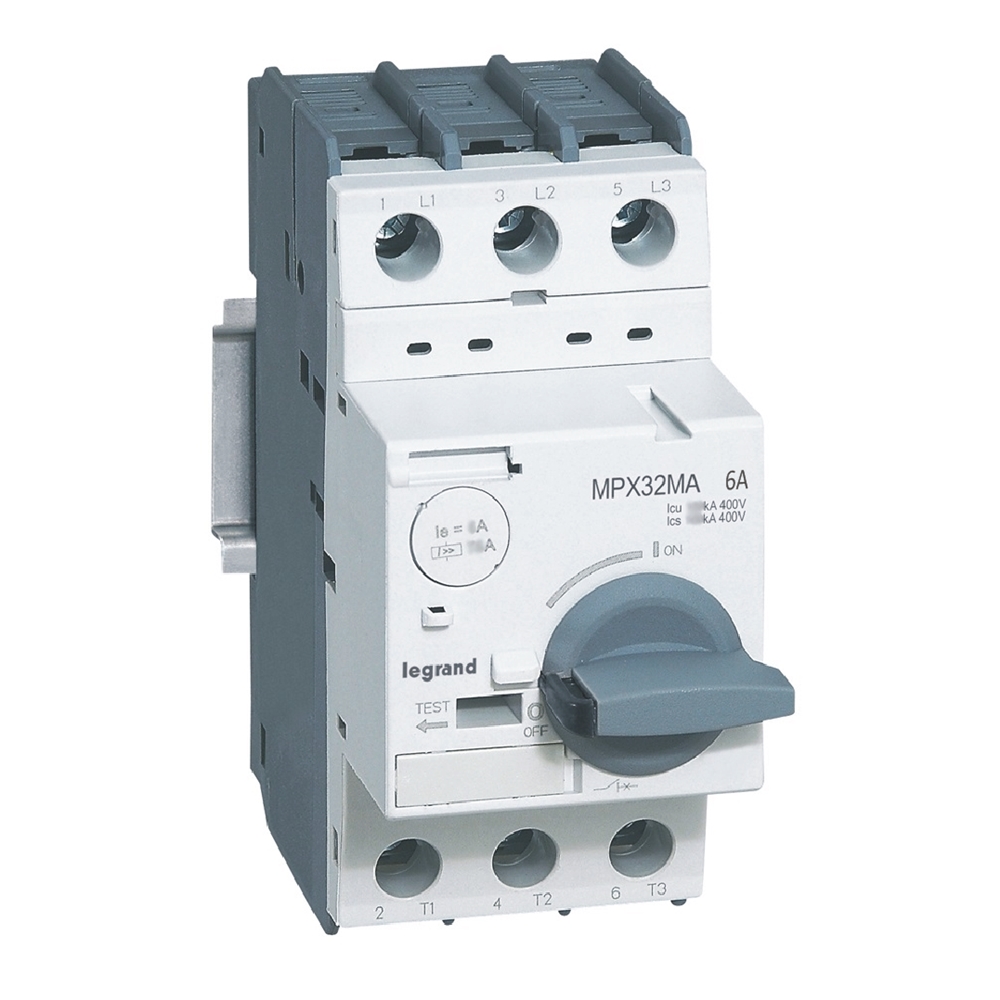

WYŁĄCZNIK SILNIKOWY MPX3 32MA 6A TYLKO Z WYZWALACZEM MAGNETYCZNYM, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 417348 |
| GTIN(EAN) | 3414970395832 |
| Price unit | piece |
| Catalog price | 493,70 zł (401,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Korea Południowa |
| ETIM class: | Motor protection circuit-breaker |
| Switch off technique: | Magnetic |
| Height: | 94 mm |
| Type of control element: | Turn button |
| With thermal overload protection: | no |
| Degree of protection (IP): | IP20 |
| Rated operation power at AC-3, 230 V: | 1.1 kW |
| With integrated auxiliary switch: | yes |
| Rated operation power at AC-3, 400 V: | 2.2 kW |
| Phase failure sensitive: | no |
| Rated permanent current Iu: | 6 A |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 100 kA |
| Adjustment range undelayed short-circuit release: | 78 - 78 A |
| With integrated under voltage release: | yes |
| Device construction: | Built-in device fixed built-in technique |
| Number of poles: | 3 |
| Rated operating voltage: | 220 - 690 V |
| Depth: | 99.6 mm |
| Type of electrical connection of main circuit: | Frame clamp |
| Width: | 45 mm |
