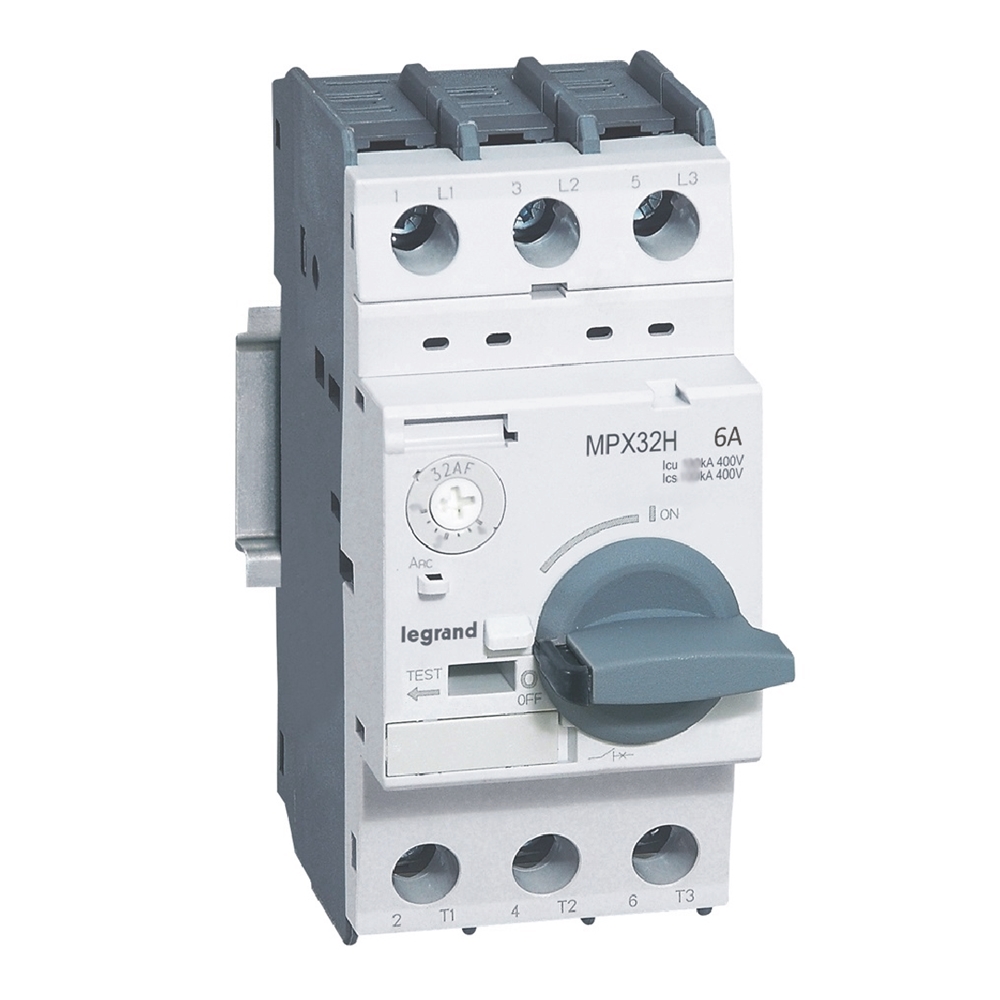

WYŁĄCZNIK SILNIKOWY MPX3 32H 4-6A WYSOKA ZDOLNOŚĆ ZWARCIOWA, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 417328 |
GTIN(EAN) | 3414970395511 |
Price unit | piece |
Catalog price | 457,97 zł (372,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Motor protection circuit-breaker |
Switch off technique: | Thermomagnetic |
Height: | 94 mm |
Type of control element: | Turn button |
With thermal overload protection: | yes |
Degree of protection (IP): | IP20 |
Rated operation power at AC-3, 230 V: | 1.1 kW |
With integrated auxiliary switch: | yes |
Rated operation power at AC-3, 400 V: | 2.2 kW |
Phase failure sensitive: | no |
Rated permanent current Iu: | 6 A |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 100 kA |
Adjustment range undelayed short-circuit release: | 78 - 78 A |
With integrated under voltage release: | yes |
Device construction: | Built-in device fixed built-in technique |
Number of poles: | 3 |
Rated operating voltage: | 220 - 690 V |
Depth: | 99.6 mm |
Overload release current setting: | 4 - 6 A |
Type of electrical connection of main circuit: | Frame clamp |
Width: | 45 mm |
