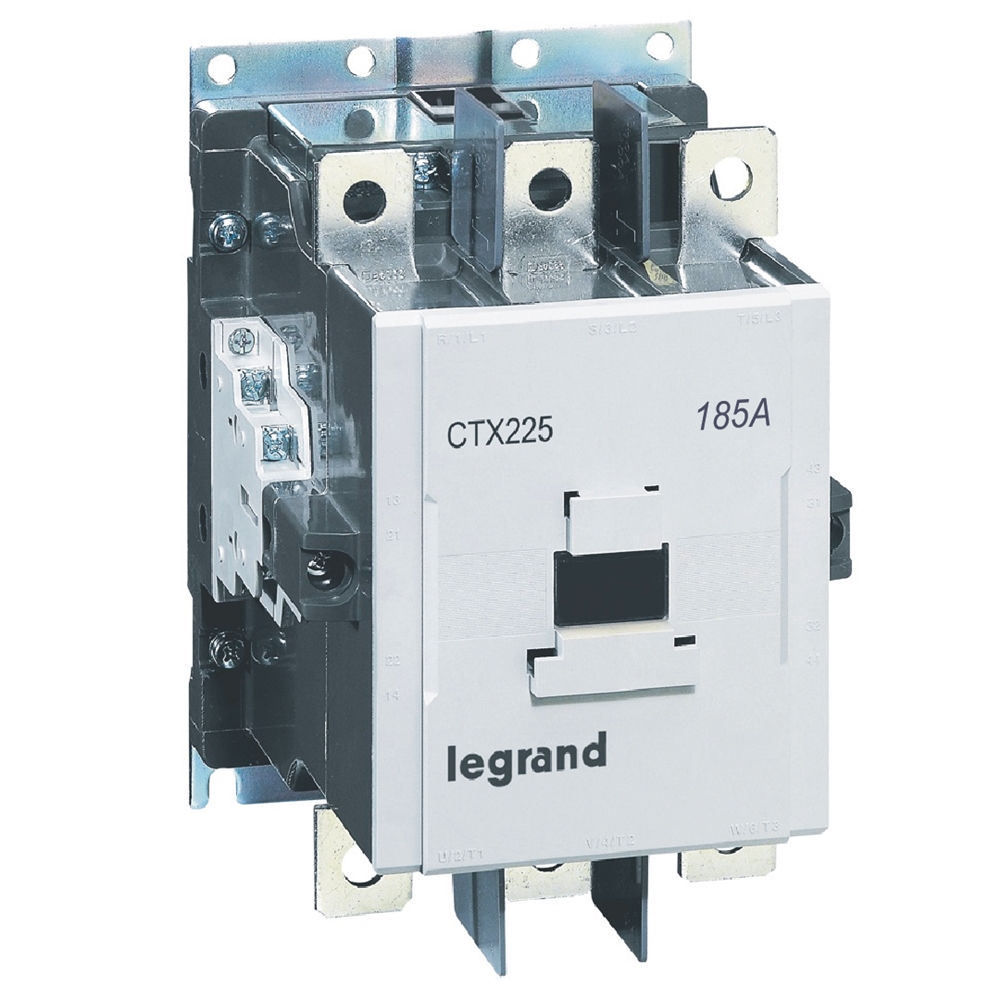

STYCZNIK CTX3 3P 185A 2NO2NC 24V AC/DC, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 416280 |
| GTIN(EAN) | 3414970403445 |
| Price unit | piece |
| Catalog price | 4 371,67 zł (3 554,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Korea Południowa |
| ETIM class: | Power contactor, AC switching |
| Modular version: | no |
| Rated operation power at AC-3, 400 V: | 90 kW |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 2 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Rated operation current Ie at AC-3, 400 V: | 185 A |
| Rated operation current Ie at AC-1, 400 V: | 230 A |
| Rated control supply voltage AC 50 Hz: | 20.4 - 26.4 V |
| Rated control supply voltage AC 60 Hz: | 20.4 - 26.4 V |
| Rated control supply voltage DC: | 20.4 - 26.4 V |
| Type of electrical connection of main circuit: | Screw connection |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie at AC-4, 400 V: | 150 A |
| Rated operation power at AC-4, 400 V: | 75 kW |
