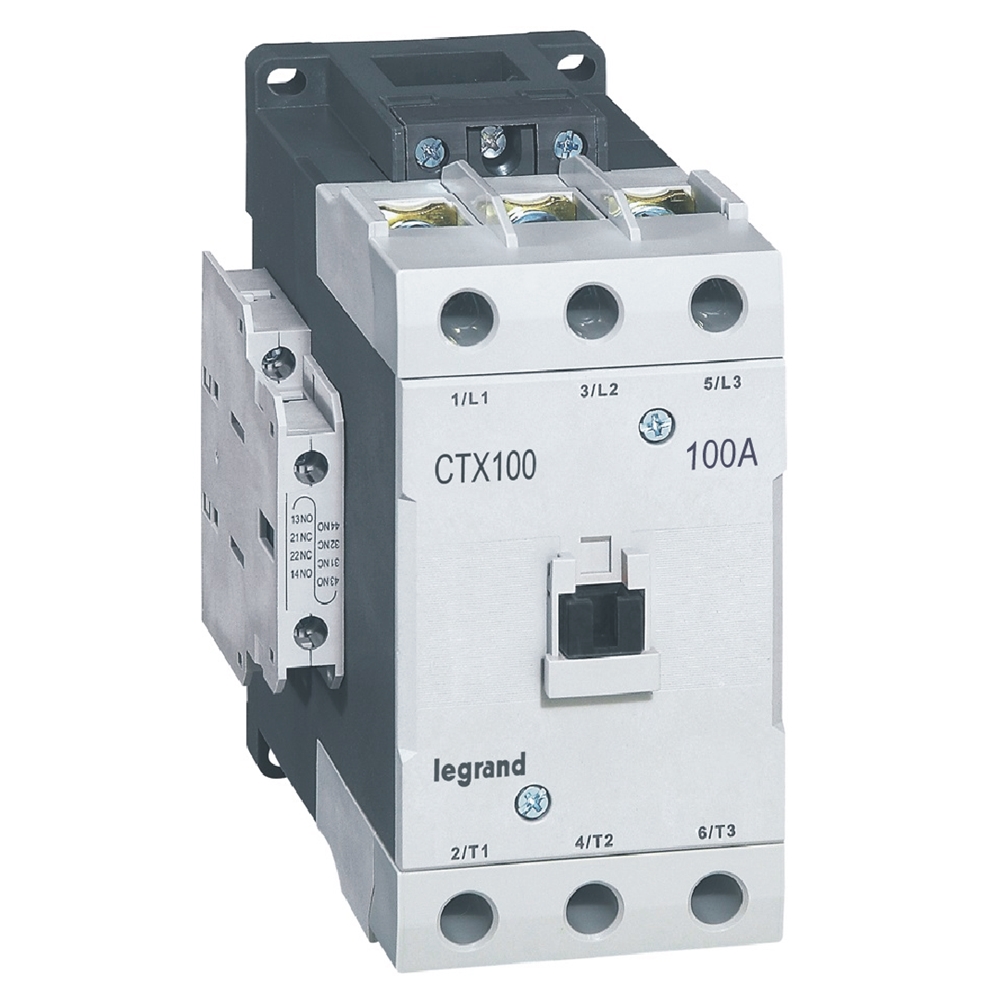

STYCZNIK CTX3 3P 100A 2NO2NC 48V DC, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 416223 |
| GTIN(EAN) | 3414970402301 |
| Price unit | piece |
| Catalog price | 2 335,77 zł (1 899,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Korea Południowa |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage DC: | 40.8 - 52.8 V |
| Rated operation current Ie at AC-1, 400 V: | 160 A |
| Number of normally open contacts as main contact: | 3 |
| Number of auxiliary contacts as normally open contact: | 2 |
| Number of normally closed contacts as main contact: | 0 |
| Rated operation power at AC-3, 400 V: | 55 kW |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Rated operation current Ie at AC-4, 400 V: | 75 A |
| Voltage type for actuating: | DC |
| Rated operation power at AC-4, 400 V: | 37 kW |
| Rated operation current Ie at AC-3, 400 V: | 105 A |
| Modular version: | yes |
| Type of electrical connection of main circuit: | Cable clamp |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-30 15:10:03 |
| Files to download: |
