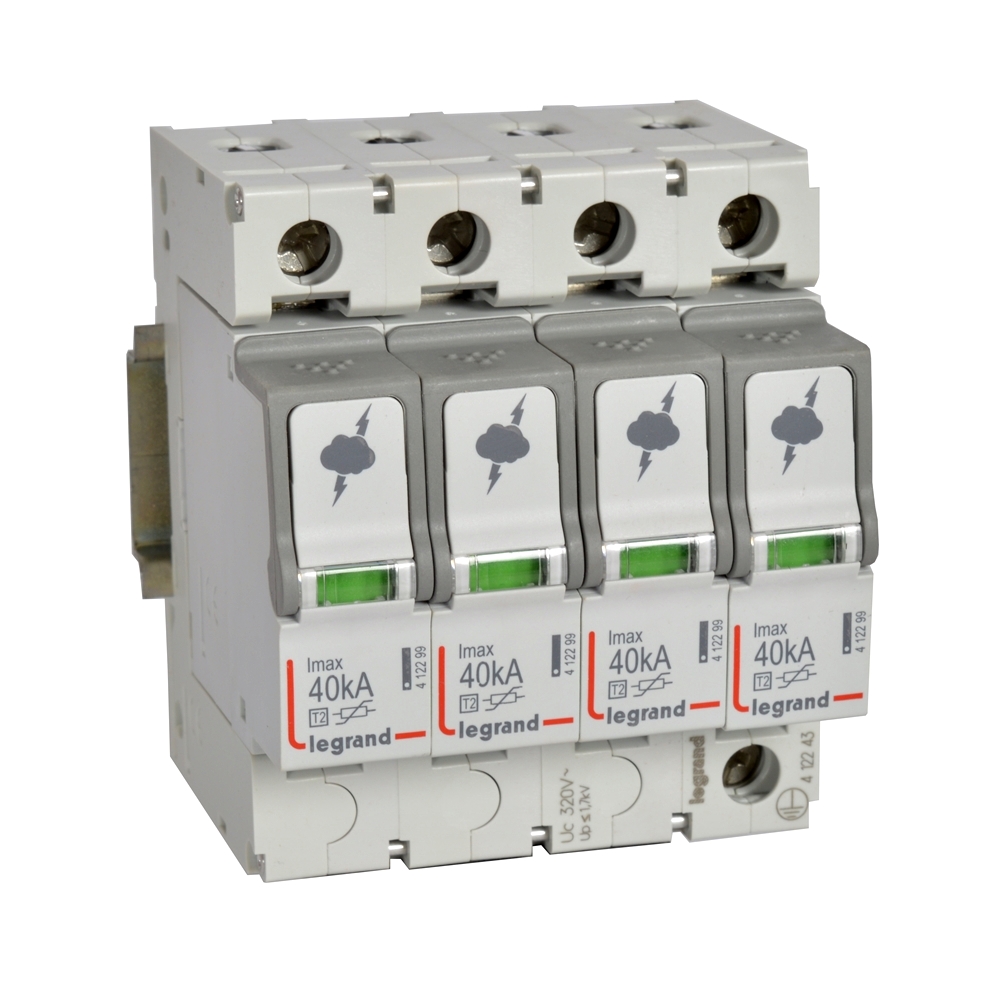

OGRANICZNIK PRZEPIĘĆ T2 40 KA 4P, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 412243 |
| GTIN(EAN) | 3414970517685 |
| Price unit | piece |
| Catalog price | 865,02 zł (703,27 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Polska |
| ETIM class: | Surge protection device for power supply systems |
| System configuration TN-C-S: | no |
| Nominal voltage AC: | 230 V |
| Degree of protection (IP): | IP20 |
| System configuration TN-S: | yes |
| Construction size: | 4 modular spacing |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| System configuration other: | no |
| System configuration TT: | no |
| Signalling at the device: | Optical |
| Number of conductors (without earthing): | 4 |
| Voltage protection level: | 1.7 kV |
| System configuration IT: | no |
| System configuration TN-C: | no |
| System configuration TN: | no |
| Max. continuous voltage AC: | 320 V |
| Integrated backup fuse: | no |
| Nominal discharge surge current (8/20): | 20 kA |
| Category type 2: | yes |
| With remote signalling contact: | no |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
