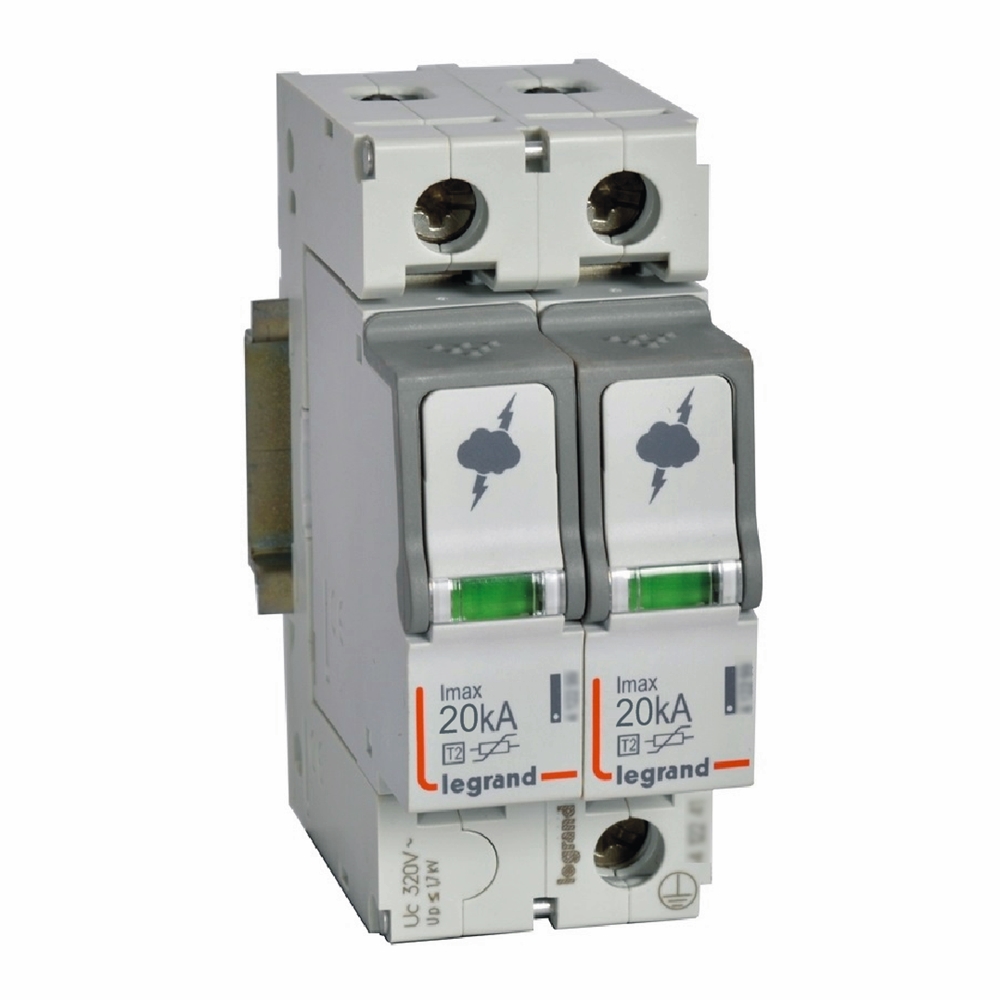

OGRANICZNIK PRZEPIĘĆ T2 20 KA 2P, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 412221 |
GTIN(EAN) | 3414970517968 |
Price unit | piece |
Catalog price | 409,43 zł (332,87 zł + 23% VAT) |
Sale price | from 98,86 zł (80,37 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Surge protection device for power supply systems |
System configuration TN-C-S: | no |
Nominal voltage AC: | 230 V |
Degree of protection (IP): | IP20 |
System configuration TN-S: | yes |
Construction size: | 2 modular spacing |
Mounting method: | DIN rail (top hat rail) 35 mm |
System configuration other: | no |
System configuration TT: | no |
Signalling at the device: | Optical |
Number of conductors (without earthing): | 2 |
Voltage protection level: | 1.2 kV |
System configuration IT: | no |
System configuration TN-C: | no |
System configuration TN: | no |
Max. continuous voltage AC: | 320 V |
Integrated backup fuse: | no |
Nominal discharge surge current (8/20): | 5 kA |
Category type 2: | yes |
With remote signalling contact: | no |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
