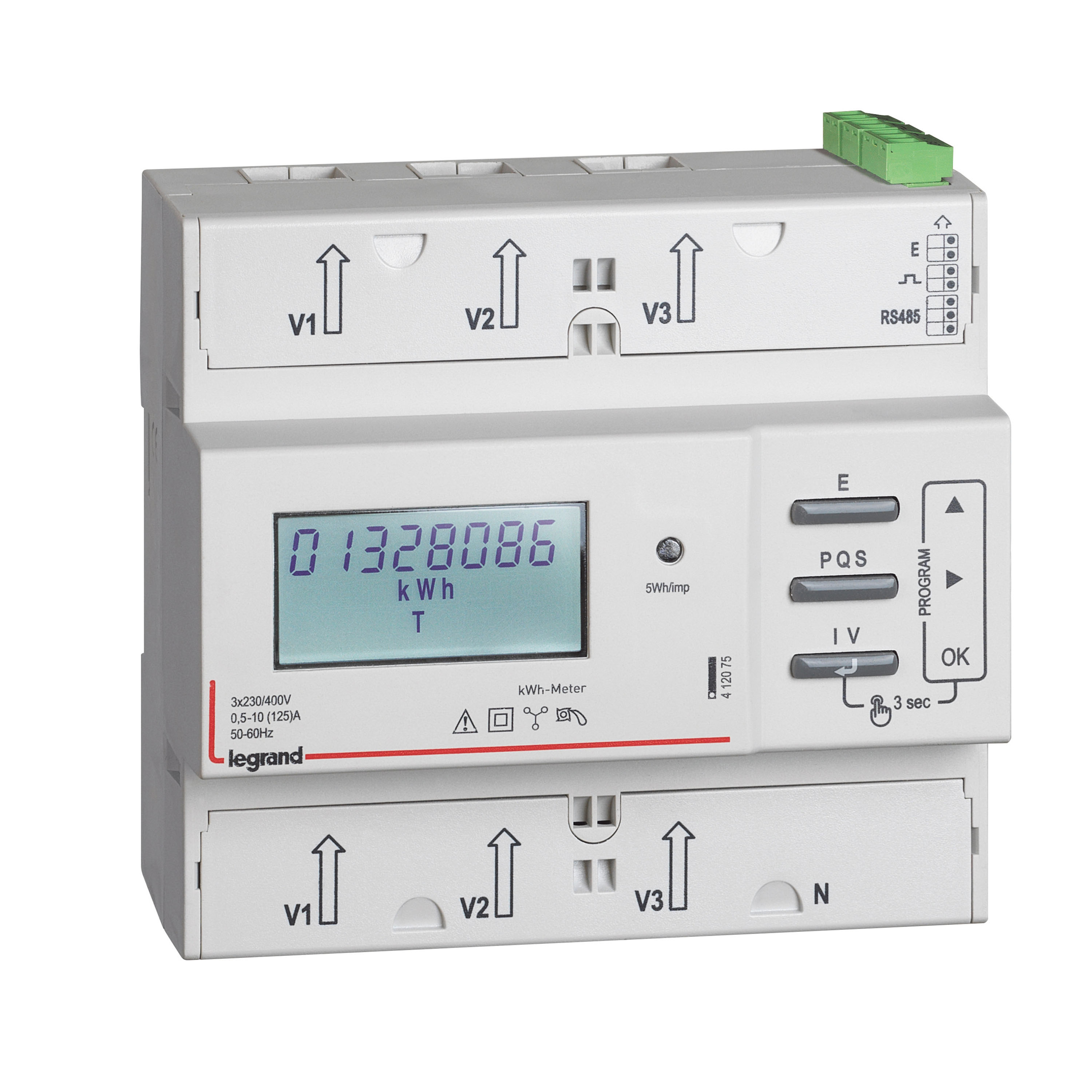

LICZNIK ENERGII POMIAR BEZPOŚREDNI 3 FAZOWY 125 A Z WYJŚCIEM IMPULSOWYM I RS485 Z MID, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 412075 |
| GTIN(EAN) | 3414970968388 |
| Price unit | piece |
| Catalog price | 4 149,58 zł (3 373,64 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Włochy |
| ETIM class: | Kilowatt-hour meter |
| Measurement type load profile: | no |
| Number of positions total (counter): | 8 |
| EEC40 signature: | no |
| Height: | 111.5 mm |
| With lock code: | yes |
| Degree of protection (IP): | IP54 |
| Pulse rate: | 0.001 - 100 Imp/kWh (kvarh) |
| Energy type: | Effective power and blind power |
| Mounting method: | DRA (DIN-rail adapter) |
| Accuracy class: | B |
| Pole type: | Four conductor |
| Tariff type: | Two-tariff |
| Approval: | Measuring Instruments Directive |
| Frequency: | 47 - 63 Hz |
| Max. current (Imax): | 125 A |
| Pulse output: | Optical |
| Pulse type: | S0 |
| Tariff control: | External |
| Suitable for: | Purchase |
| Escapement mechanism: | yes |
| Model: | Direct measurement |
| Type of interface: | RS-485 |
| Type of meter: | Electronic |
| Calibrated: | yes |
| Width in number of modular spacings: | 6 |
| Nominal current (In): | 20 A |
| Nominal voltage (Un) N-L: | 197 - 265 V |
| Nominal voltage (Un) L-L: | 340 - 465 V |
| Depth: | 65.6 mm |
| Type of indication: | Digital |
| Width: | 107.2 mm |
