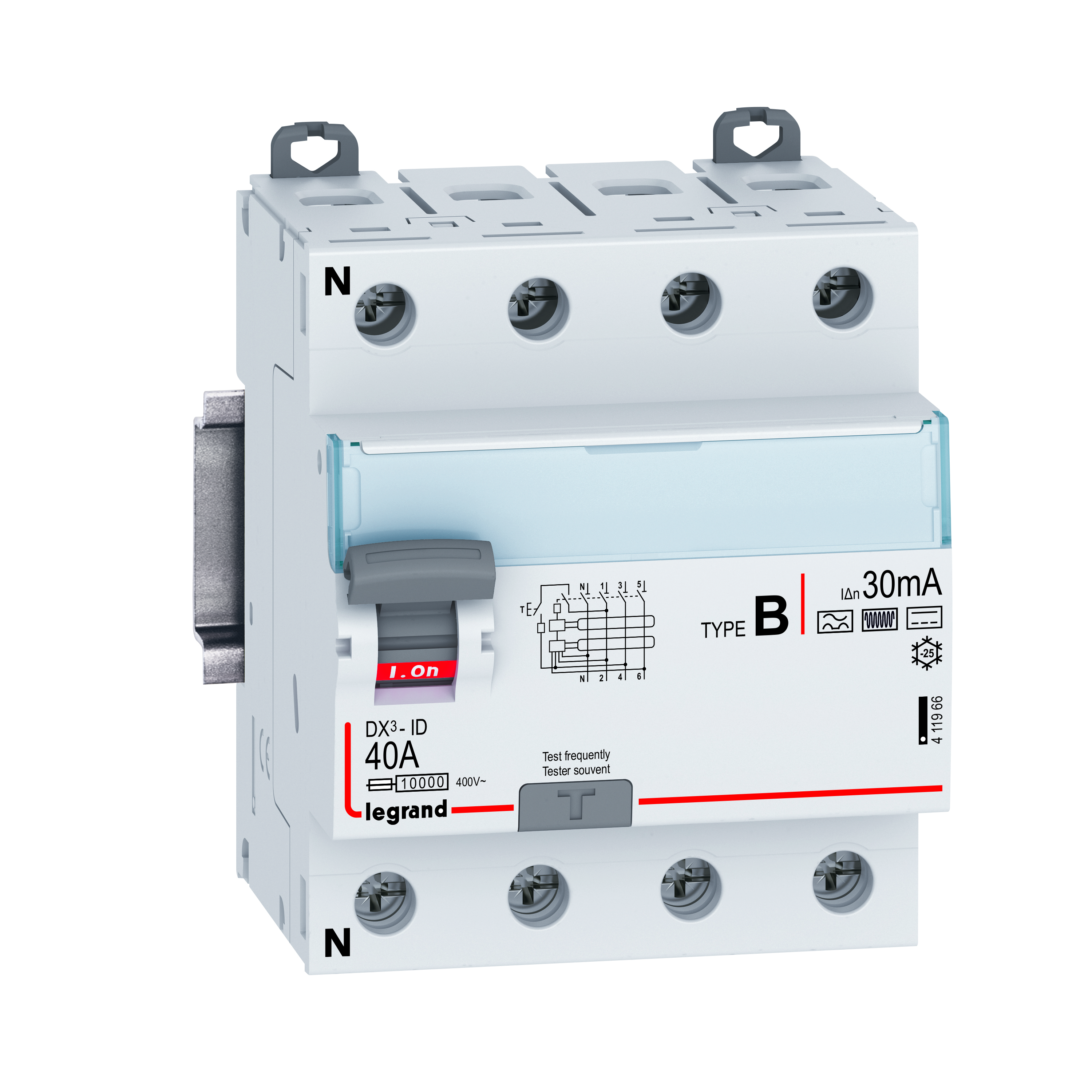

WYŁĄCZNIK RÓŻNICOWOPRĄDOWY P302 4P 40A 30MA TYP B SERII DX3, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 411966 |
GTIN(EAN) | 3414972087902 |
Price unit | piece |
Catalog price | 3 492,19 zł (2 839,18 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Residual current circuit breaker (RCCB) |
Selective protection: | no |
Explosion-proof: | no |
Connectable conductor cross section solid-core: | 0.75 - 50 mm² |
Frequency: | 50 Hz |
Short-circuit breaking capacity (Icw): | 10 kA |
Ambient temperature during operating: | -25 - 60 °C |
Pollution degree: | 2 |
Leakage current type: | B |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 4 |
Voltage type: | AC |
Additional equipment possible: | yes |
Mounting method: | DIN rail |
Rated insulation voltage Ui: | 500 V |
Surge current capacity: | 3 kA |
With interlocking device: | yes |
Connectable conductor cross section multi-wired: | 0.75 - 35 mm² |
Number of poles: | 4 |
Short-time delayed tripping: | yes |
Rated fault current: | 0.03 A |
Rated current: | 40 A |
Rated impulse withstand voltage Uimp: | 4000 kV |
Built-in depth: | 44 mm |
Rated voltage: | 400 V |
