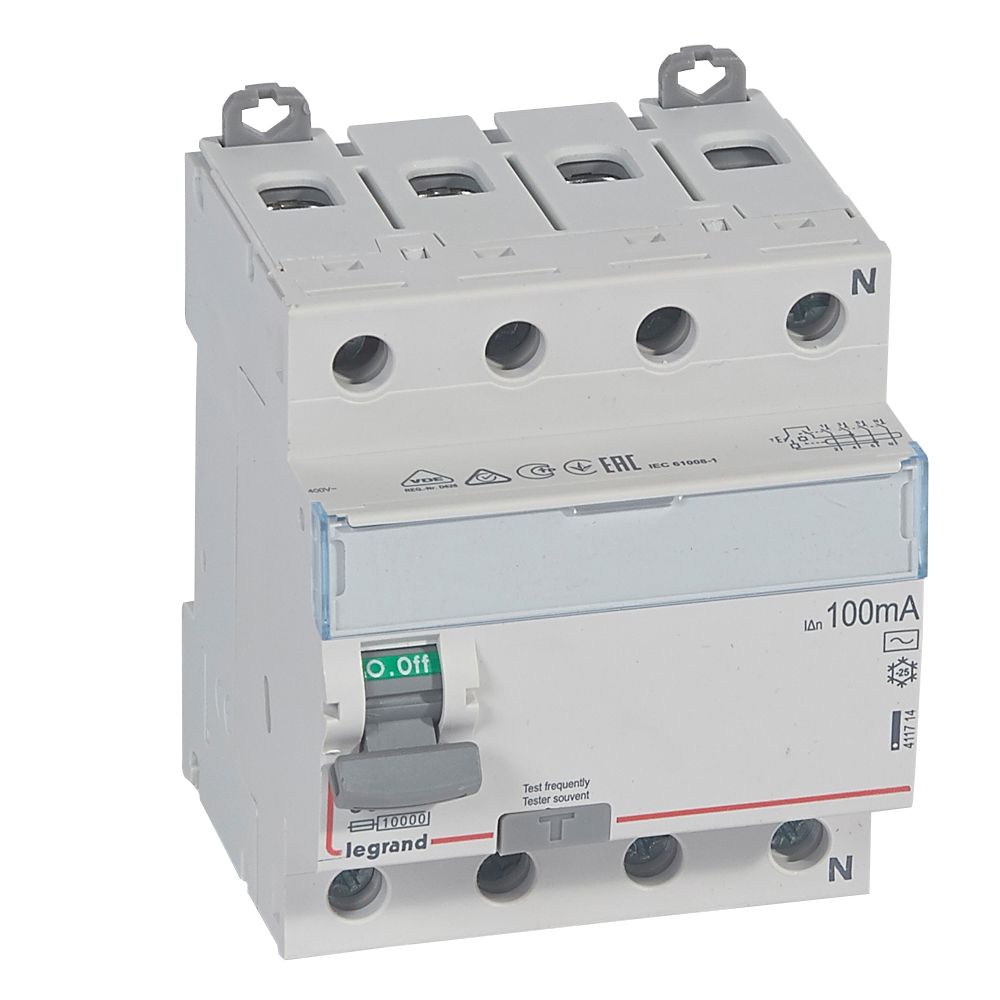

WYŁĄCZNIK RÓŻNICOWOPRĄDOWY P 304 4P 63A 100MA TYP AC SERII DX3, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 411714 |
GTIN(EAN) | 3245064117142 |
Price unit | piece |
Catalog price | 944,81 zł (768,14 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Residual current circuit breaker (RCCB) |
Selective protection: | no |
Explosion-proof: | no |
Connectable conductor cross section solid-core: | 0.75 - 50 mm² |
Frequency: | 50 Hz |
Short-circuit breaking capacity (Icw): | 10 kA |
Ambient temperature during operating: | -25 - 60 °C |
Pollution degree: | 2 |
Leakage current type: | AC |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 4 |
Voltage type: | AC |
Additional equipment possible: | yes |
Mounting method: | DIN rail |
Rated insulation voltage Ui: | 500 V |
Surge current capacity: | 0.25 kA |
With interlocking device: | yes |
Connectable conductor cross section multi-wired: | 0.75 - 35 mm² |
Number of poles: | 4 |
Short-time delayed tripping: | no |
Rated fault current: | 0.1 A |
Rated current: | 63 A |
Rated impulse withstand voltage Uimp: | 4 kV |
Built-in depth: | 44 mm |
Rated voltage: | 400 V |
