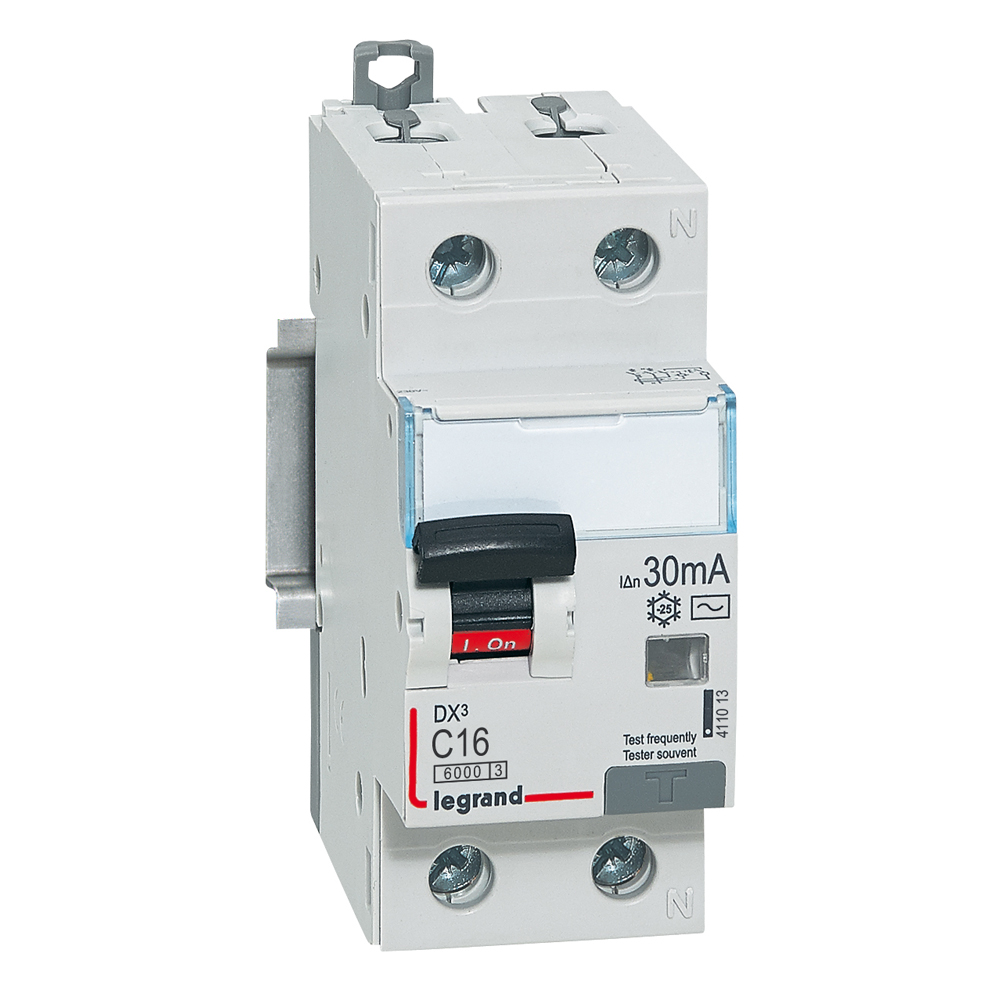

WYŁĄCZNIK RÓŻNICOWONADPRĄDOWY P 312 2P C 16A 30MA TYP AC SERII DX3, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 411013 |
GTIN(EAN) | 3414970351623 |
Price unit | piece |
Catalog price | 504,85 zł (410,45 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Country of origin | Francja |
ETIM class: | Earth leakage circuit breaker |
Frequency: | 50 Hz |
Connectable conductor cross section solid-core: | 0.75 - 16 mm² |
Leakage current type: | AC |
Degree of protection (IP): | IP20 |
Concurrently switching neutral conductor: | yes |
Voltage type: | AC |
Surge current capacity: | 0.25 kA |
Anti-nuisance tripping version: | no |
Rated short-circuit breaking capacity according to IEC 60947-2: | 6 kA |
Rated short-circuit breaking capacity according to EN 61009: | 6 kA |
Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
Rated fault current: | 0.03 A |
Number of protected poles: | 1 |
Built-in depth: | 44 mm |
Number of poles (total): | 2 |
Pollution degree: | 2 |
Width in number of modular spacings: | 2 |
With interlocking device: | yes |
Connectable conductor cross section multi-wired: | 0.75 - 10 mm² |
Rated current: | 16 A |
Current limiting class: | 3 |
Release characteristic: | C |
Flush-mounted installation: | yes |
Rated voltage: | 230 V |
