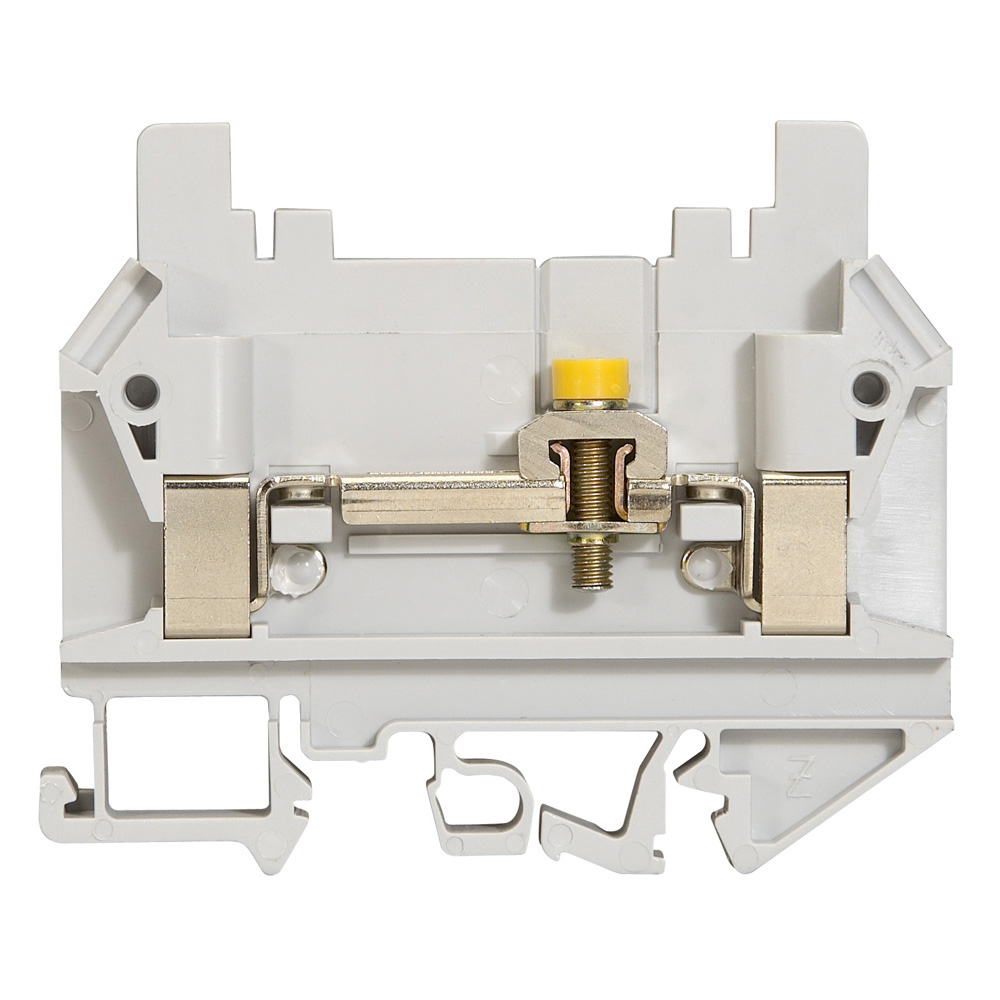

ZŁĄCZKA VIKING ROZŁĄCZANA POMIAROWA 4MM2, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 037192 |
| GTIN(EAN) | 3245060371920 |
| Price unit | piece |
| Catalog price | 102,67 zł (83,47 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Niemcy |
| ETIM class: | Feed-through terminal block |
| Number of clamp positions per level: | 2 |
| Connectable conductor cross section solid-core: | 0.25 - 4 mm² |
| Height: | 62 mm |
| Internally connected stages: | no |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 4 mm² |
| Inflammability class of insulation material according to with UL94: | V2 |
| Material insulation body: | Thermoplastic |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
| Connectable conductor cross section multi-wired: | 0.25 - 4 mm² |
| Explosion-tested version 'Ex e': | no |
| Operating temperature: | -5 - 40 °C |
| Rated current In: | 24 A |
| Depth: | 73.5 mm |
| Closing plate required: | yes |
| Type of electrical connection 1: | Screw connection |
| Colour: | Grey |
| Rated voltage: | 800 V |
| Width: | 8 mm |
| Number of levels: | 1 |
| Type of electrical connection 2: | Screw connection |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-30 15:12:17 |
| Files to download: |
