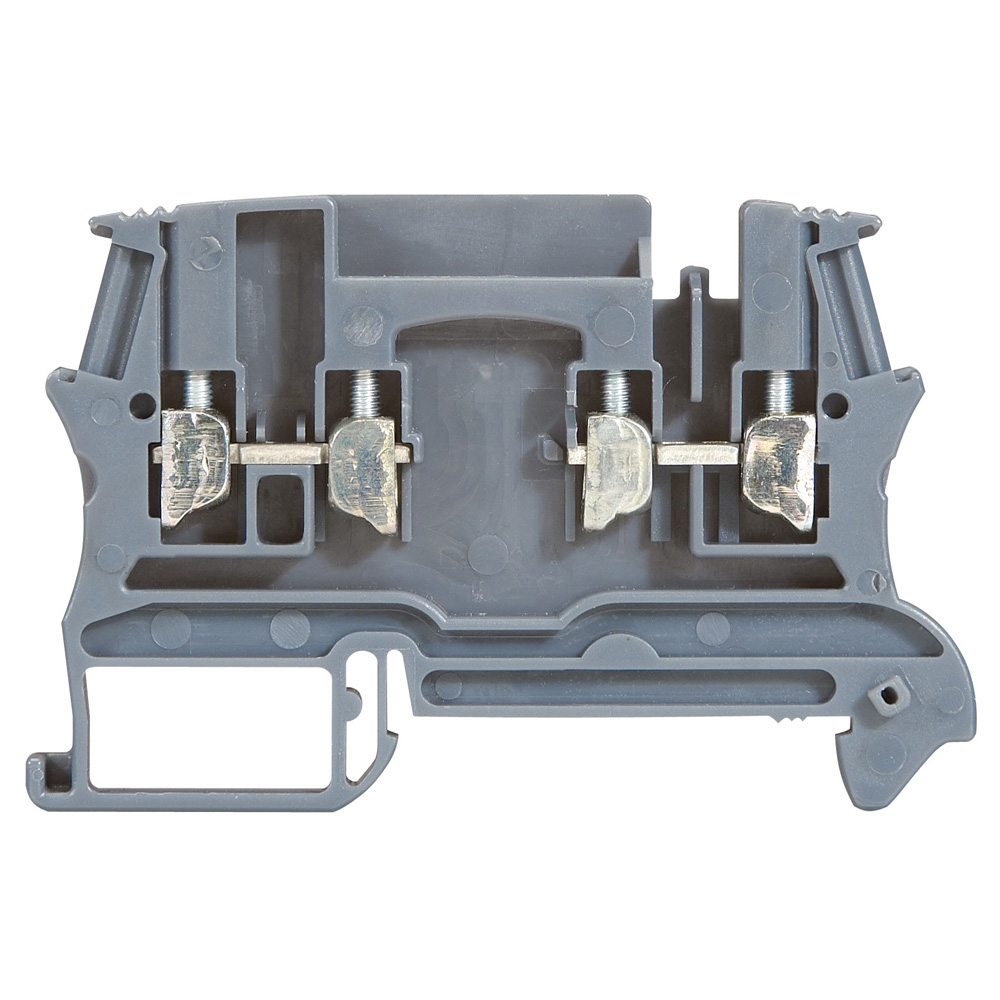

ZŁĄCZKA VIKING 1 TOROWA MODUŁOWE 2,5MM2 SZEROKOŚĆ 5, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 037153 |
| GTIN(EAN) | 3245060371531 |
| Price unit | piece |
| Catalog price | 44,88 zł (36,49 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Francja |
| ETIM class: | Feed-through terminal block |
| Number of clamp positions per level: | 2 |
| Connectable conductor cross section solid-core: | 0.25 - 4 mm² |
| Height: | 46.5 mm |
| Internally connected stages: | no |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 2.5 mm² |
| Inflammability class of insulation material according to with UL94: | V2 |
| Material insulation body: | Thermoplastic |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
| Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
| Explosion-tested version 'Ex e': | no |
| Operating temperature: | -5 - 40 °C |
| Depth: | 71.5 mm |
| Closing plate required: | yes |
| Type of electrical connection 1: | Screw connection |
| Colour: | Other |
| Rated voltage: | 250 V |
| Width: | 5 mm |
| Number of levels: | 1 |
| Type of electrical connection 2: | Screw connection |
