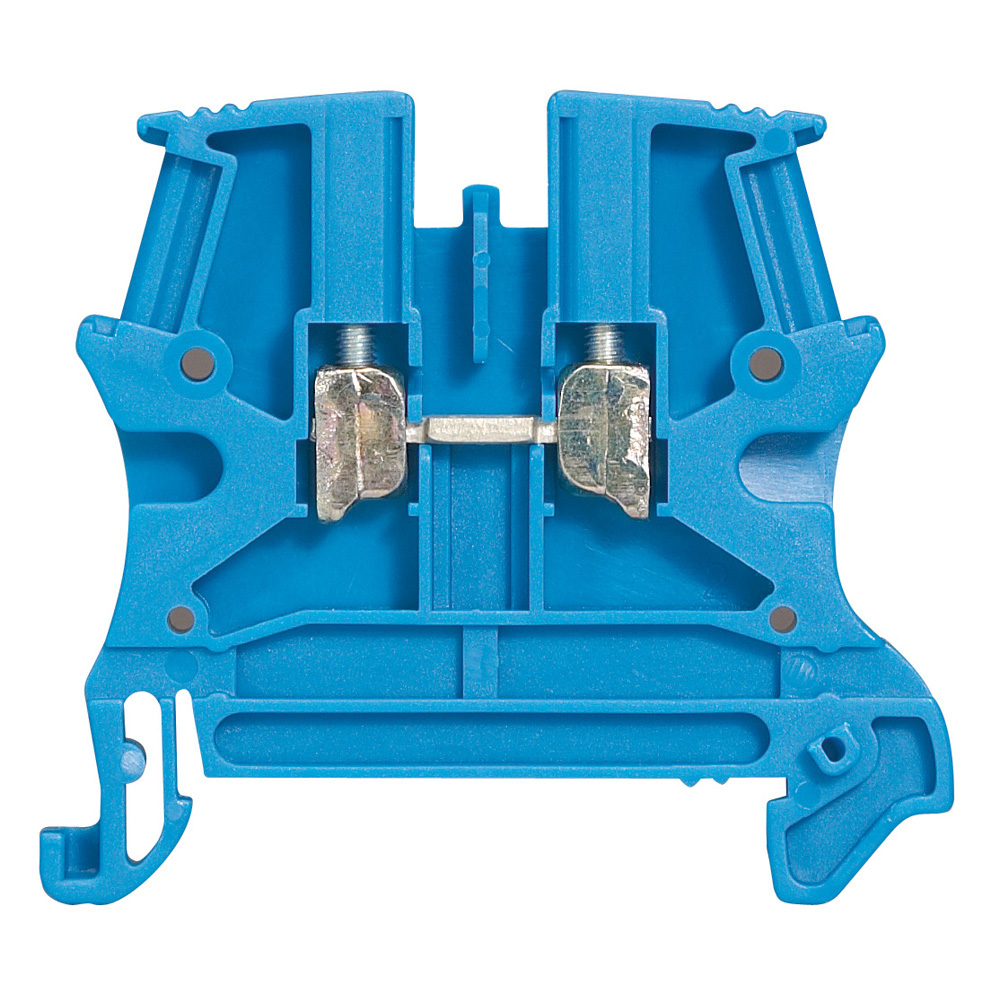

ZŁĄCZKA VIKING 1 TOR 10MM2 NIEBIESKA, Legrand
| Information | Value |
|---|---|
| Supplier | Legrand Polska Sp. z o.o. |
| Symbol | 037103 |
| GTIN(EAN) | 3245060371036 |
| Price unit | piece |
| Catalog price | 17,98 zł (14,62 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Country of origin | Francja |
| ETIM class: | Feed-through terminal block |
| Number of clamp positions per level: | 2 |
| Connectable conductor cross section solid-core: | 1.5 - 16 mm² |
| Height: | 46.5 mm |
| Internally connected stages: | no |
| Connectable conductor cross section fine-strand with cable end sleeve: | 2.5 - 10 mm² |
| Inflammability class of insulation material according to with UL94: | V2 |
| Material insulation body: | Thermoplastic |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1.5 - 16 mm² |
| Connectable conductor cross section multi-wired: | 2.5 - 10 mm² |
| Explosion-tested version 'Ex e': | yes |
| Operating temperature: | -5 - 40 °C |
| Rated current In: | 57 A |
| Depth: | 52.5 mm |
| Closing plate required: | yes |
| Type of electrical connection 1: | Screw connection |
| Colour: | Blue |
| Rated voltage: | 800 V |
| Width: | 10 mm |
| Number of levels: | 1 |
| Type of electrical connection 2: | Screw connection |
