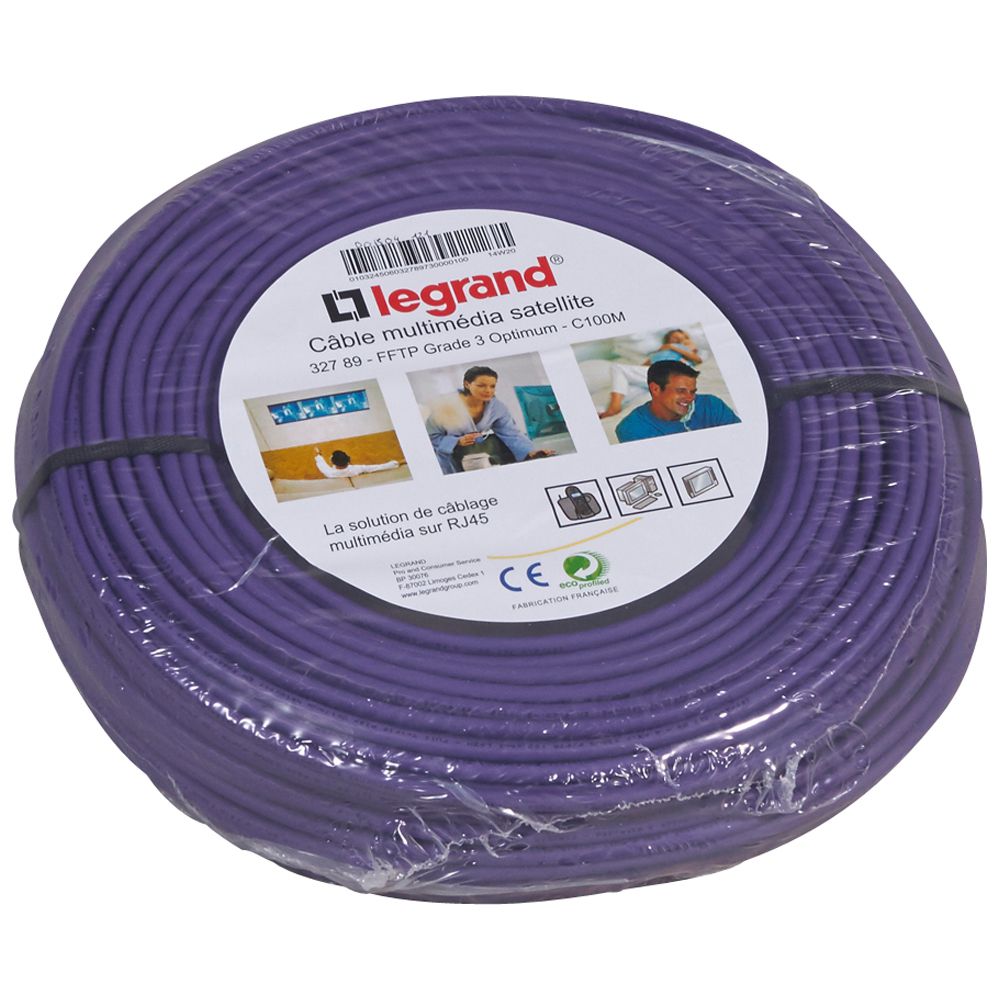

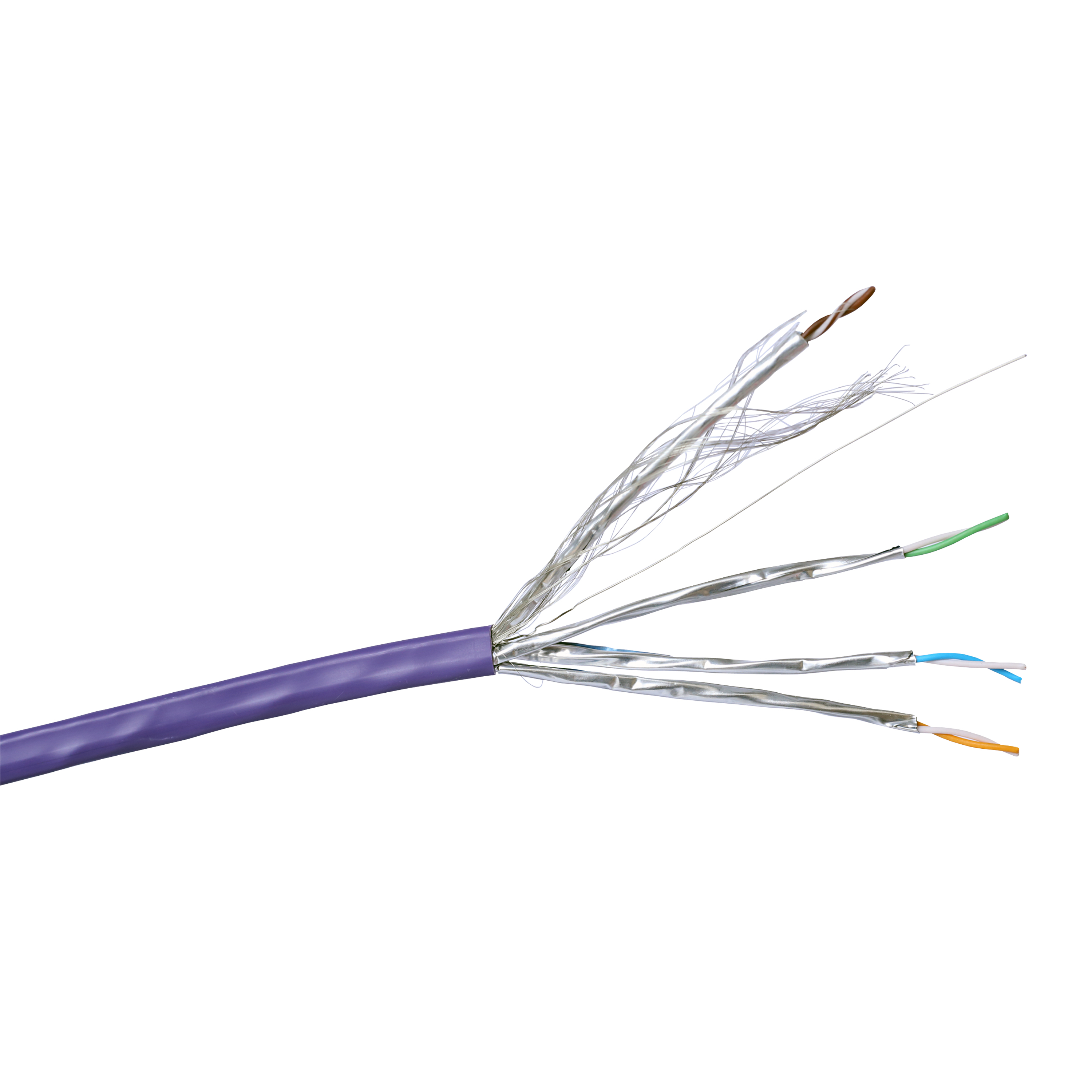

KABEL F/FTP (2150 MHZ), TV + SATELITA, DŁUGOŚĆ 100 M, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 032789 |
GTIN(EAN) | 3245060327897 |
Price unit | kilometer |
Catalog price | 16 789,50 zł (13 650,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Data and communication cable |
Protective sheath: | None |
Insulation integrity according to IEC 60331: | no |
Halogen free according to EN IEC 60754-2: | yes |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | d2 |
Reaction-to-fire according to EN 13501-6: Smoke production: | s2 |
Reaction-to-fire according to EN 13501-6: Class: | Dca |
Weight: | 56 kg/km |
Conductor surface: | Bare |
Number of stranding elements: | 4 |
Reaction-to-fire according to EN 13501-6: Acidity: | a2 |
Min. permitted bending radius, moving application with forced guidance: | 63 mm |
Specification material outer sheath: | Polyethylene (PE) |
Specification core insulation: | Polyethylene (PE) |
Category: | Other |
Colour outer sheath: | Other |
Approved type of underground installation: | Other |
Radial water blocking cable: | yes |
Circuit integrity: | None |
Low smoke according to EN IEC 61034-2: | yes |
Longitudinal water blocking cable: | no |
Stranding element: | Pairs |
Number of cores: | 8 |
Core identification: | Colour |
Low smoke (according to EN 61034-2): | yes |
UV resistant: | no |
NVP value: | 78 % |
Material core insulation: | Other |
Nominal cross section conductor: | 0.25 mm² |
Conductor material: | Copper |
Diameter conductor: | 0.56 mm |
Stranding: | Bundle |
Screen over stranding: | None |
Suitable for underground installation: | no |
Screen over stranding element: | Foil |
Outer diameter approx.: | 7.8 mm |
Material outer sheath: | Other |
Halogen free according to EN 60754-1/2: | yes |
Flame retardant: | According to IEC/EN 60332-1-2 |
AWG size: | 23 |
Armouring/reinforcement: | None |
Permitted cable outer temperature after assembling without vibration: | -20 - 60 °C |
Permitted cable outer temperature during assembling/handling: | 0 - 50 °C |
Compatible with Grade3TV according to XP-C 90-483: | yes |
Core identification according to HD 308 S2: | no |
Compatible with Grade2TV according to XP-C 90-483: | no |
Suitable as telephone cable: | yes |
Suitable as computer data cable: | yes |
Certified for shipboard application: | no |
Cable geometry: | Round |
Conductor category: | Class 1 = solid |
