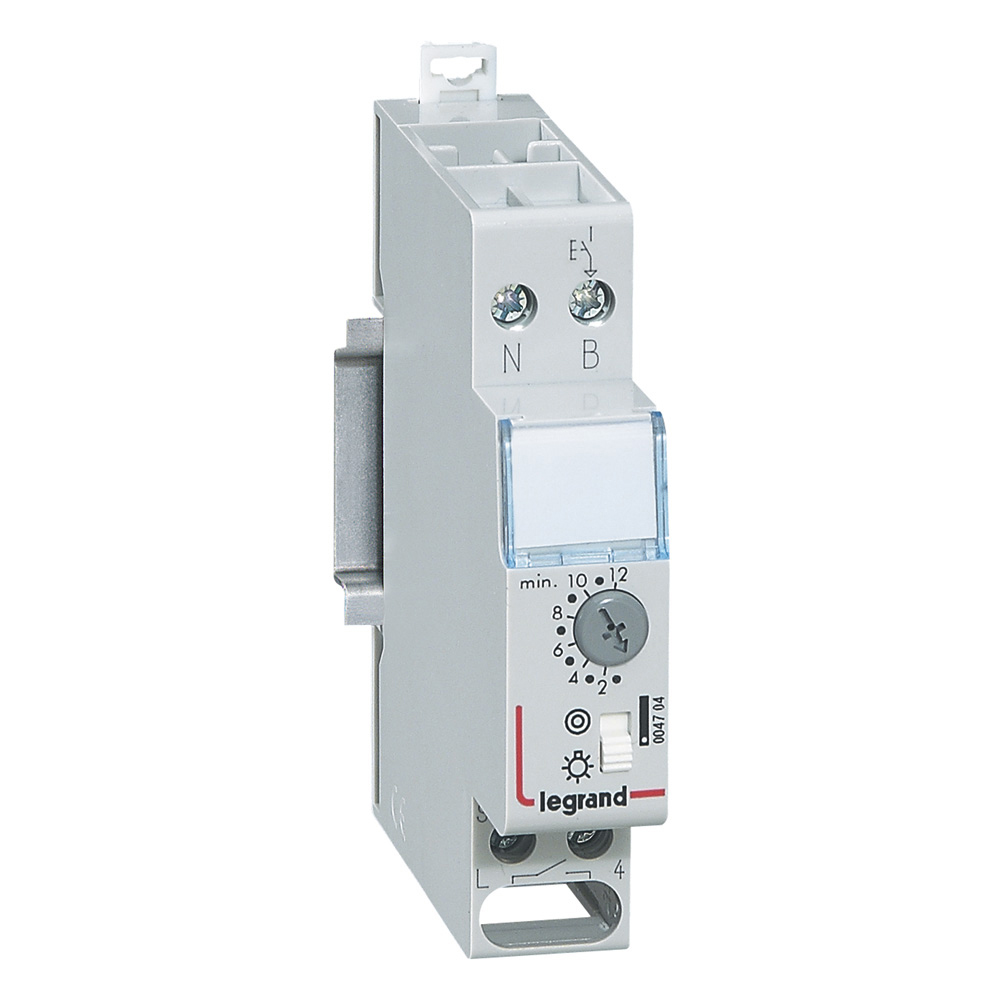

WYŁĄCZNIK SCHODOWY FUNKCYJNY, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 004704 |
GTIN(EAN) | 3245060047047 |
Price unit | piece |
Catalog price | 514,68 zł (418,44 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłączniki schodowe - Zasilanie 230 V~ - 50/60 Hz - Posiada zabezpieczenie w przypadku zablokowania przycisku
Additional features:
Information | Value |
---|---|
Country of origin | Włochy |
ETIM class: | Staircase lighting timer |
Number of contacts as normally closed contact: | 0 |
Mounting method: | DIN rail |
Width in number of modular spacings: | 1 |
Number of contacts as change-over contact: | 0 |
Voltage type (supply voltage): | AC |
Function: | Electronic with multi function |
Built-in depth: | 70 mm |
Number of contacts as normally open contact: | 1 |
Wiring system: | 3 and 4 wire configuration |
Max. load fluorescent lamp: | 1000 VA |
Pre-warning of switching-off: | Flickering |
Max. switching current (cos phi = 0.6): | 13 A |
Max. incandescent lamp load: | 2000 W |
Repetitive: | Repetitive |
Max. load fluorescent lamp (parallel compensated): | 1000 VA |
Max. load fluorescent lamp (Duo circuit): | 1000 VA |
Current surge function selectable: | yes |
Type of control voltage 1: | AC |
Rated switch current: | 16 A |
Type of control voltage 2: | AC/DC |
Control voltage 1: | 8 - 230 V |
Release-delay: | 0.5 - 12 min |
Control voltage 2: | 8 - 230 V |
Frequency control voltage 1: | 50 - 60 Hz |
Push button glow-lamp current: | 50 mA |
Frequency control voltage 2: | 50 - 60 Hz |
Supply voltage: | 250 - 250 V |
