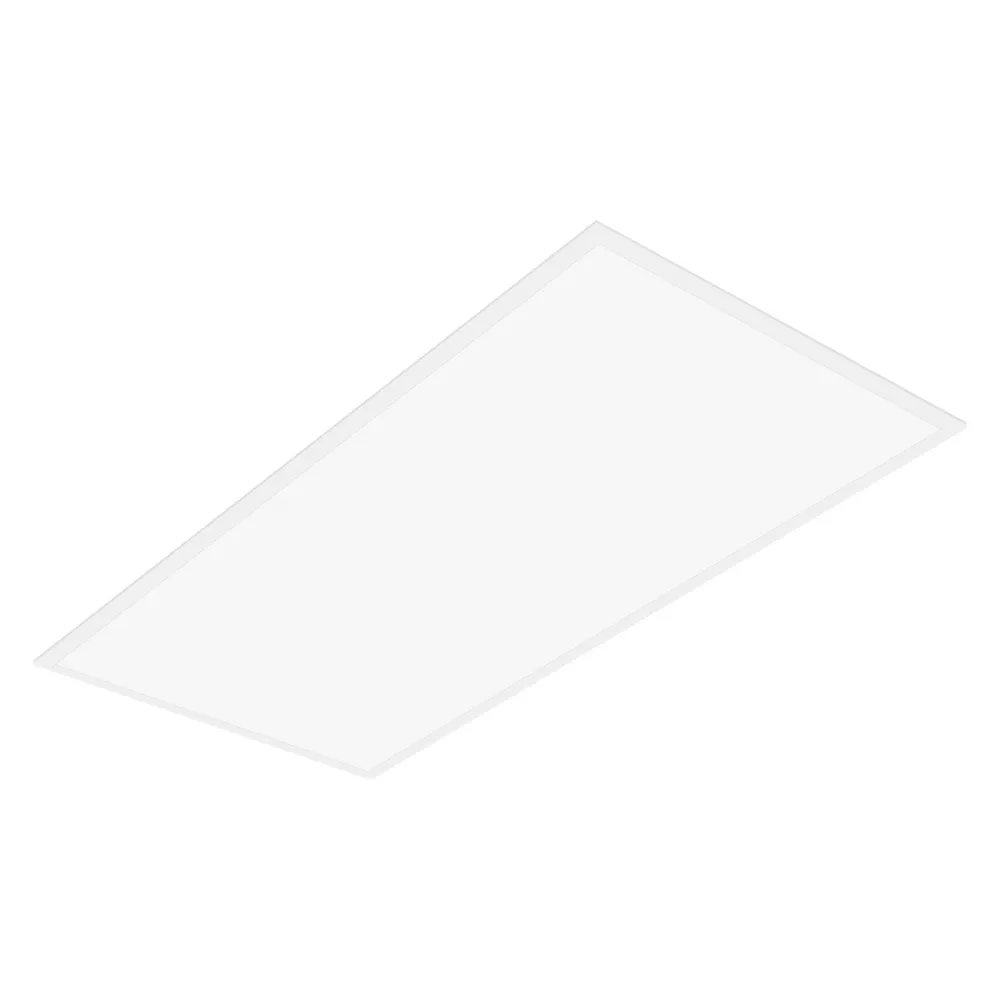

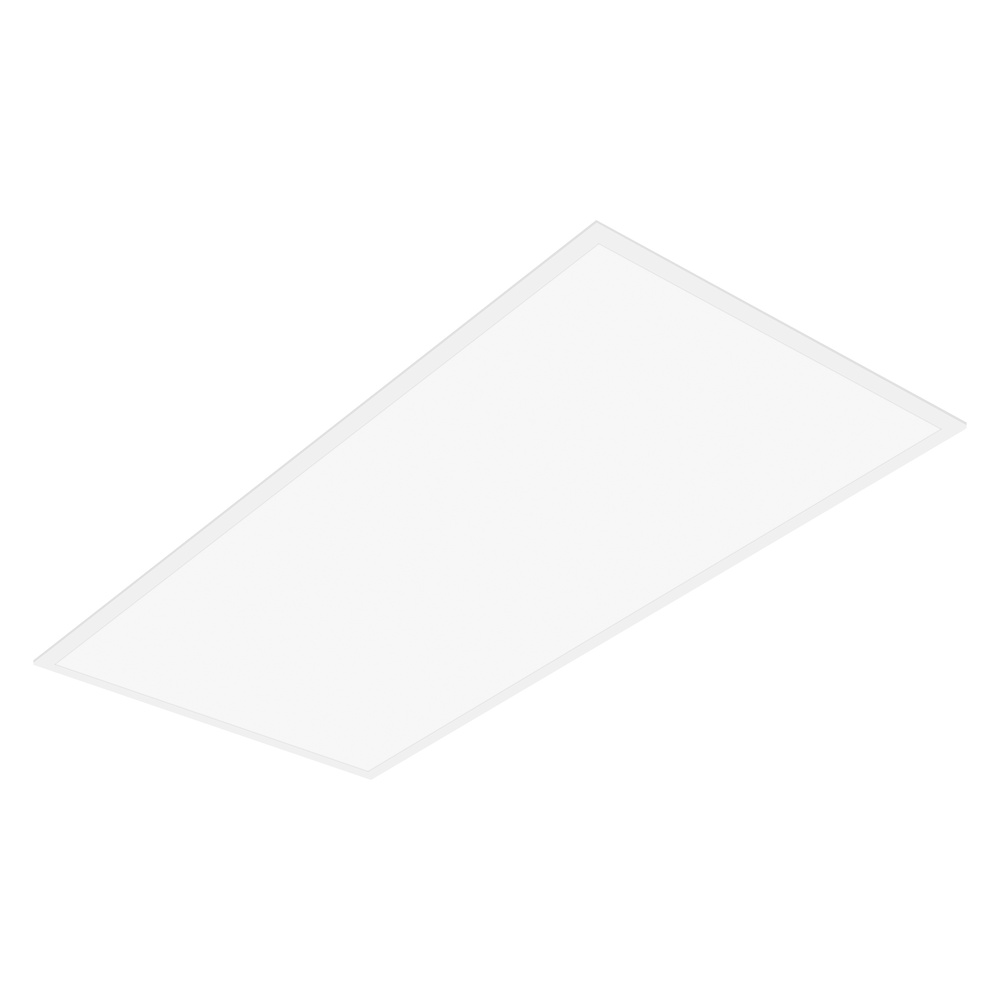

Oprawa PANEL COMPACT 1200 X 600 DALI 53W 840 DALI
| Information | Value |
|---|---|
| Supplier | LEDVANCE Sp z o.o |
| Symbol | 4099854113703 |
| GTIN(EAN) | 4099854113703 |
| Price unit | piece |
| Catalog price | 855,42 zł (695,46 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Prostokątne oprawy panelowe wpuszczane, do systemów sufitowych o wymiarach 1200 x 600 mm i technologii DALI-2. Cechy produktu: Nadaje się do instalacji awaryjnych centralnej baterii wg. EN 60598-2-22. Funkcja Push DIM do ściemniania i przełączania bezpośrednio za pomocą przycisku. Rama z wytłaczanego aluminium. Dyfuzor z polistyrenu. Trwałość (L80/B50): do 50 tys. godzin (przy 25°C). Zalety produktu: Niewielkie tętnienie światła dzięki specjalnemu statecznikowi elektronicznemu. Zewnętrzny zasilacz zwiększa uniwersalność i zapewnia łatwą instalację. Możliwość zastosowania w oświetleniu awaryjnym. 5-letnia gwarancja. Obszary zastosowań: Bezpośredni zamiennik świetlówkowych opraw oświetleniowych. Biura, sale konferencyjne. Recepcje, hole, korytarze, windy. Odpowiednie oprawy do zabudowy w suficie 1200 x 600 mm. Wyposażenie / Akcesoria: Dostępne są akcesoria do kilku typów montażu. Linka zabezpieczająca oprawę oświetleniową w zestawie. Wstępnie zainstalowane wsporniki zabezpieczające. Stateczniki zewnętrzne w zestawie. Nadaje się do użytku z Emergency Conversion Box. Puszka przyłączeniowa z 5-biegunowym zaciskiem do okablowania przelotowego dostępna oddzielnie dla przewodów o przekroju do 2,5 mm².
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,5 kg |
| Country of origin | Chiny |
| ETIM class: | Ceiling-/wall luminaire |
| Suitable for wall mounting: | no |
| Suitable for suspended mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Suitable for built-in mounting: | yes |
| Suitable for surface mounting: | yes |
| Suitable for light line configuration: | no |
| Suitable for workplace according to EN 12464-1: | no |
| With light source: | yes |
| Housing material: | Steel |
| Housing colour: | White |
| Type of grid: | Matt |
| Voltage type: | AC/DC |
| Nominal voltage: | 220 - 240 V |
| Nominal current: | 230.000 - 230.000 mA |
| Type of control gear: | Electronic ballast |
| With control gear: | yes |
| Exchangeable control gear: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI-2: | yes |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer's proprietary system: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase cut-off: | no |
| Dimming phase cut-on: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | yes |
| Dimming Zigbee: | no |
| Dimming with push-button: | no |
| No dim function: | no |
| Light distributor: | Diffuser lens/optic/panel |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Light outlet: | Direct |
| Energy efficiency class of the light source according to EU regulation 2019/2015: | D |
| Rated life time L70/B50 at 25 °C: | 70000 h |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 55 |
| Degree of protection (IP): | IP40 |
| Impact strength: | IK02 |
| Protection class: | II |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | -10 - +50 °C |
| Suitable for emergency lighting: | yes |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| With air slots: | no |
| Max. system power: | 53.00 W |
| Luminaire efficacy: | 110 lm/W |
| Rated luminous flux according to IEC 62722-2-1: | 5830 lm |
| Colour of light: | White |
| Colour temperature: | 4000 - 4000 K |
| Colour rendering index CRI: | 80-89 |
| Power factor: | 0.90 |
| Constant light output (CLO): | no |

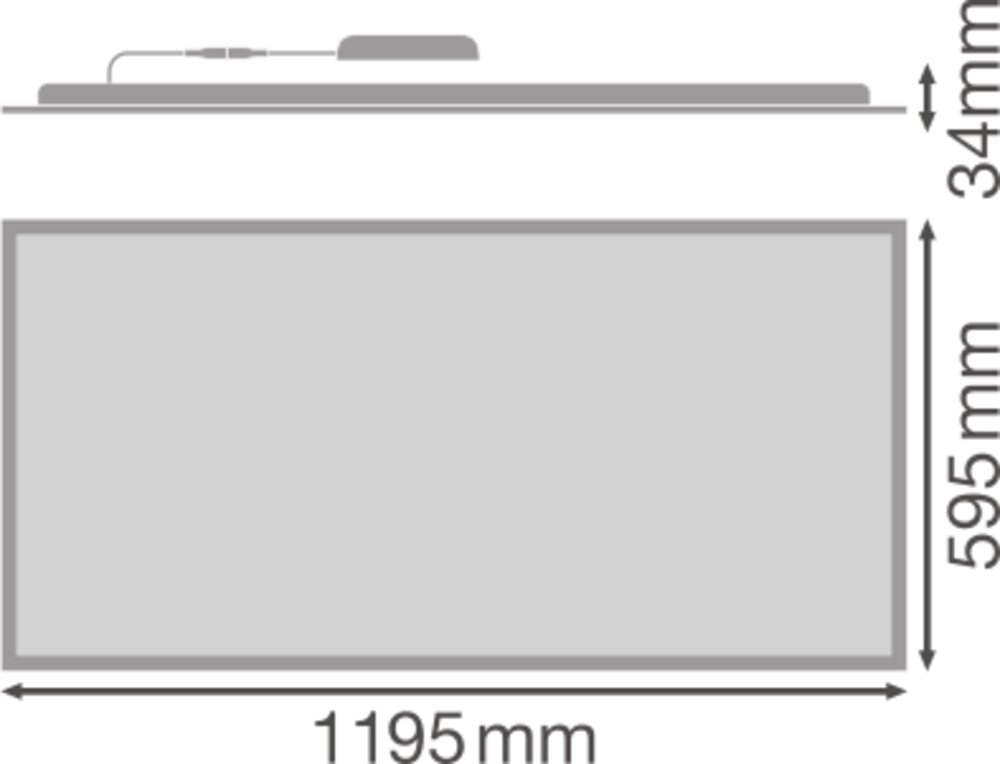

| Width: | 595.00 mm |
| Height/depth: | 34.00 mm |
| Length: | 1195.00 mm |
| Built-in length: | 1175 mm |
| Built-in width: | 575 mm |
| Built-in height/depth: | 50 mm |

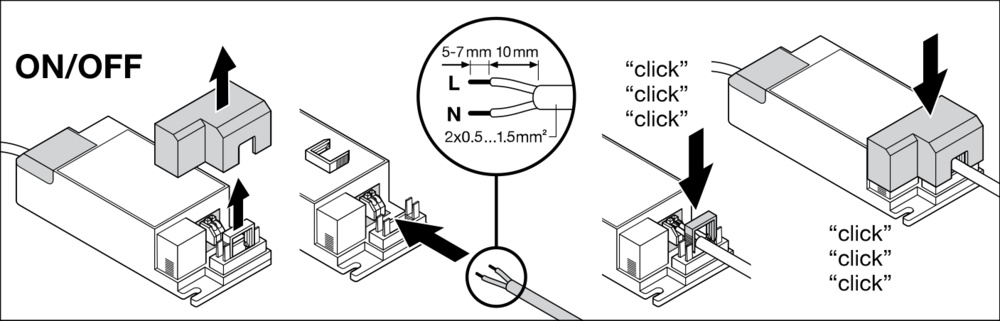

| Type of wiring: | Suitable for through wiring |
| Number of poles: | 4 |
| Connection type: | Push-in clamp |
| Photobiological safety according to EN 62471: | RG0 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
| Operation by Bluetooth: | no |
| Compatible with Casambi: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C): | no |
