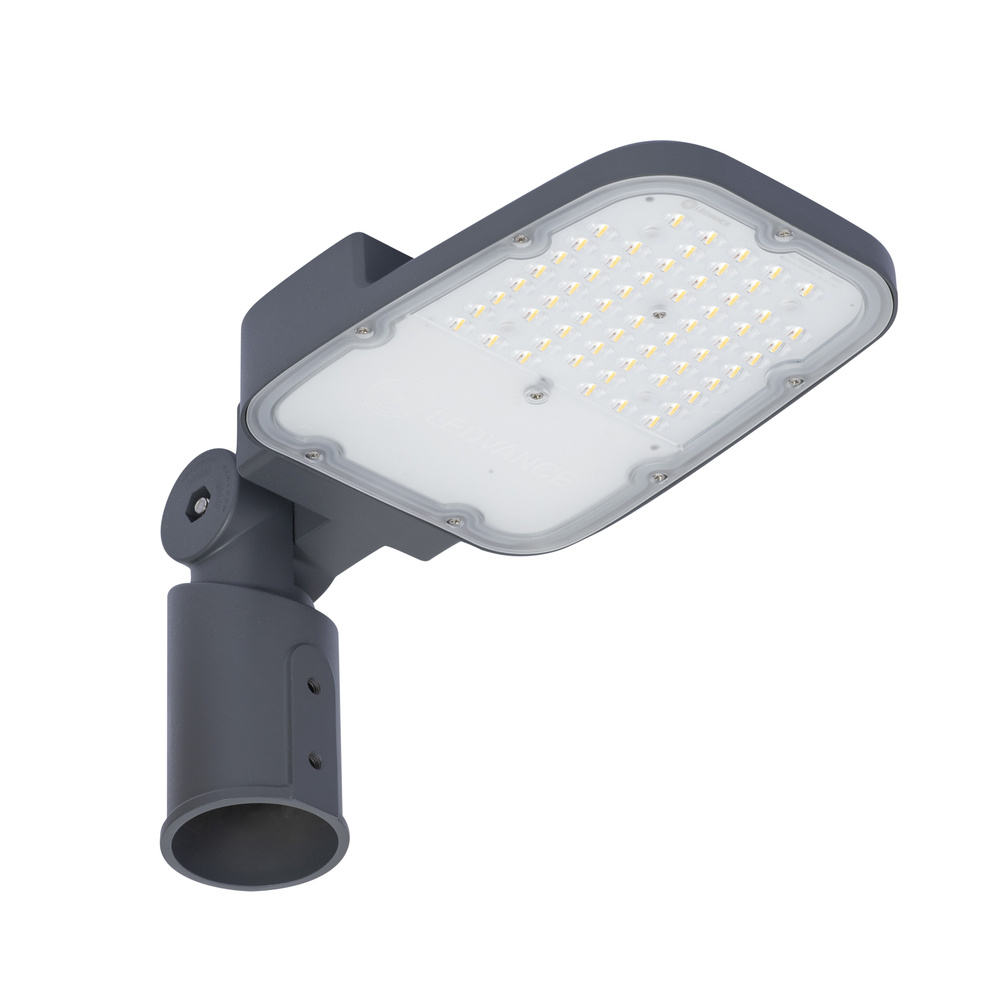

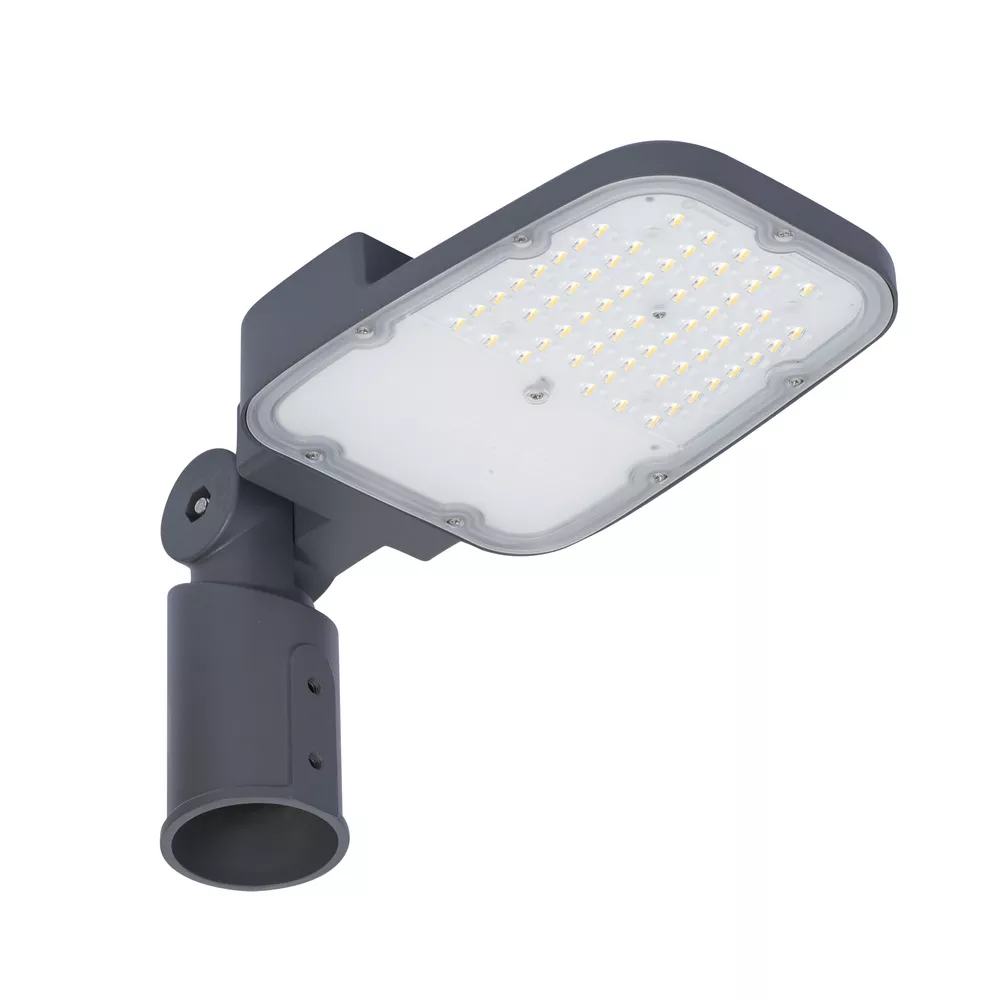

Oprawa uliczna STREETLIGHT AREA SMALL RV20ST 30W 730 RV20ST GY
Information | Value |
---|---|
Supplier | LEDVANCE Sp z o.o |
Symbol | 4099854030055 |
GTIN(EAN) | 4099854030055 |
Price unit | piece |
Catalog price | 470,33 zł (382,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

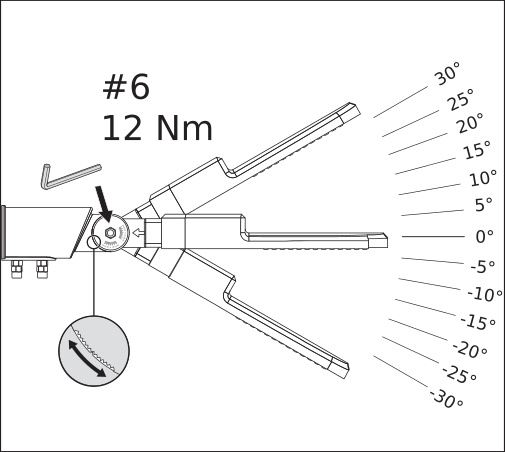

Możliwość zastosowania do oświetlenia ulicznego i obszarów zewnętrznych. Cechy produktu: Rozsył światła zoptymalizowany dla ulic o szerokości zbliżonej do wysokości słupa. W zestawie adapter montażowy, odpowiedni do wysięgników o średnicy 48...60 mm. Oprawa przystosowana do montażu bocznego lub na szczycie słupa. Regulacja kąta nachylenia +/- 30° bez otwierania obudowy. Wysoka skuteczność świetlna: do 135 lm/W. Zakres temperatury pracy: -30…50 °C. Wysoka ochrona przeciwprzepięciowa: dostępne wersje 2 kV i 10 kV (L/N-PE). Zalety produktu: Funkcjonalna konstrukcja i minimalistyczny wygląd. Niskie koszty konserwacji i eksploatacji dzięki długiej trwałości lamp LED. 5-letnia gwarancja. Obszary zastosowań: Zastosowania zewnętrzne (IP66). Drogi klasy M, C i P wg. Wymagań PN- EN 13201. Parkingi. Oświetlenie przestrzeni.
Additional features:
Information | Value |
---|---|
Net weight: | 1,4 kg |
Country of origin | Chiny |
ETIM class: | Luminaire for streets and places |
Mounting method: | Post top |
Lamp type: | LED not exchangeable |
With light source: | yes |
Suitable for number of light sources: | 0 |
Lamp holder: | None |
Housing material: | Aluminium |
Surface protection: | Powder coating |
Housing colour: | Grey |
Material cover: | Plastic, opal |
Voltage type: | AC |
Nominal voltage: | 100 - 240 V |
Nominal current: | 135.000 - 135.000 mA |
With control gear: | yes |
Exchangeable control gear: | yes |
Dimming 0-10 V: | no |
Dimming 1-10 V: | no |
Dimming DALI: | no |
Dimming DMX: | no |
Dimming DSI: | no |
Dimming potentiometer (integrated): | no |
Dimming LineSwitch: | no |
Dimming manufacturer's proprietary system: | no |
Dimming mains voltage modulation: | no |
Dimming phase cut-off: | no |
Dimming phase cut-on: | no |
Dimming programmable: | no |
Dimming RF: | no |
Dimming Sine Wave Reduction: | no |
Dimming Touch and Dim: | no |
Dimming Zigbee: | no |
Dimming with push-button: | no |
No dim function: | yes |

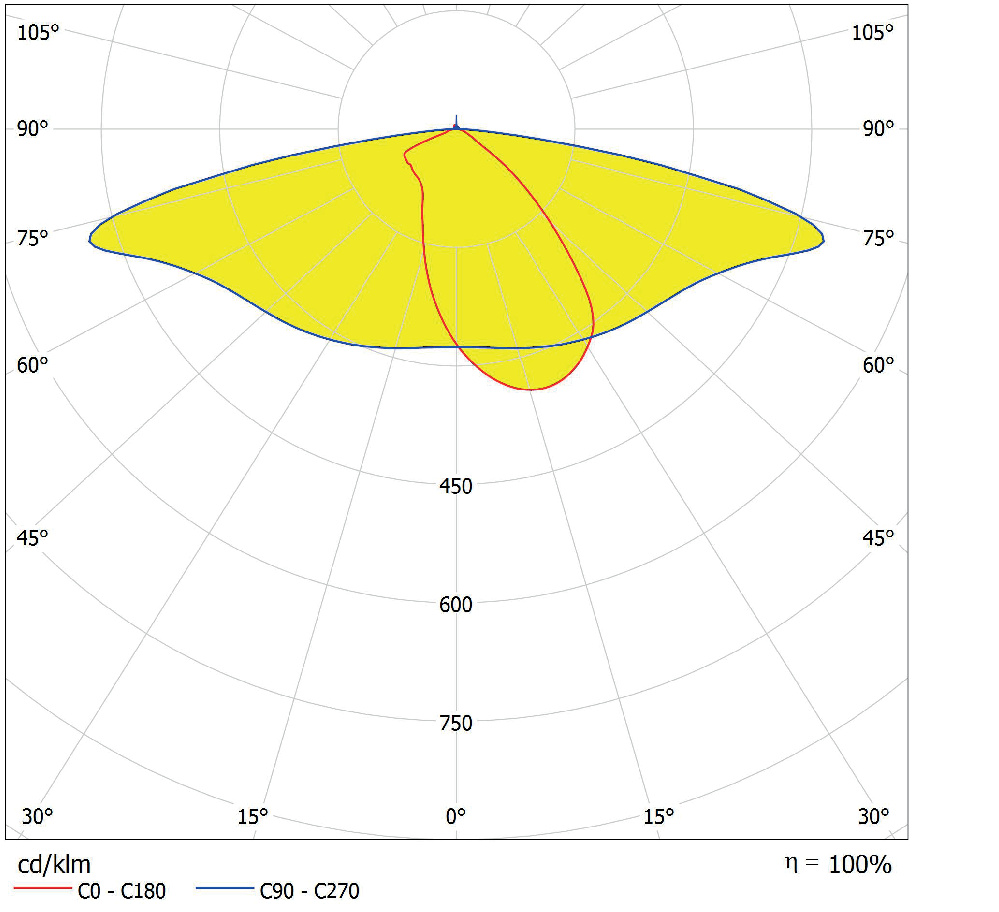

Light distributor: | Focal lens |
Energy efficiency class of the light source according to EU regulation 2019/2015: | E |
Rated life time L70/B50 at 25 °C: | 100000 h |
Max. number of luminaires per miniature circuit breaker B16 (MCB): | 88 |
Max. number of luminaires per miniature circuit breaker C16 (MCB): | 40 |
Degree of protection (IP): | IP66 |
Adjustable optics: | no |
Suitable for spigot size: | 60 - 60 mm |
Impact strength: | IK08 |
Protection class: | I |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
Rated ambient temperature according to IEC 62722-2-1: | -30 - +50 °C |
Remote control: | None |
With radio control: | no |
Constant light output (CLO): | no |
With light regulation program control: | no |
With connection cable: | yes |
Cable length: | 0.5 m |
Max. system power: | 30.00 W |
Rated luminous flux according to IEC 62722-2-1: | 3900 lm |
Luminaire efficacy: | 130 lm/W |
Colour of light: | White |
Colour temperature: | 3000 - 3000 K |
Colour rendering index CRI: | 70-79 |
Power factor: | 0.90 |
Width: | 172.00 mm |
Height/depth: | 73.00 mm |
Length: | 448.00 mm |
Type of wiring: | Ending |
Number of poles: | 3 |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Connection type: | Other |
Compatible with Amazon Alexa: | no |
IFTTT support available: | yes |
Operation by Bluetooth: | no |
Type of connection for sensor/communication module: | Other |
With light sensor: | no |
