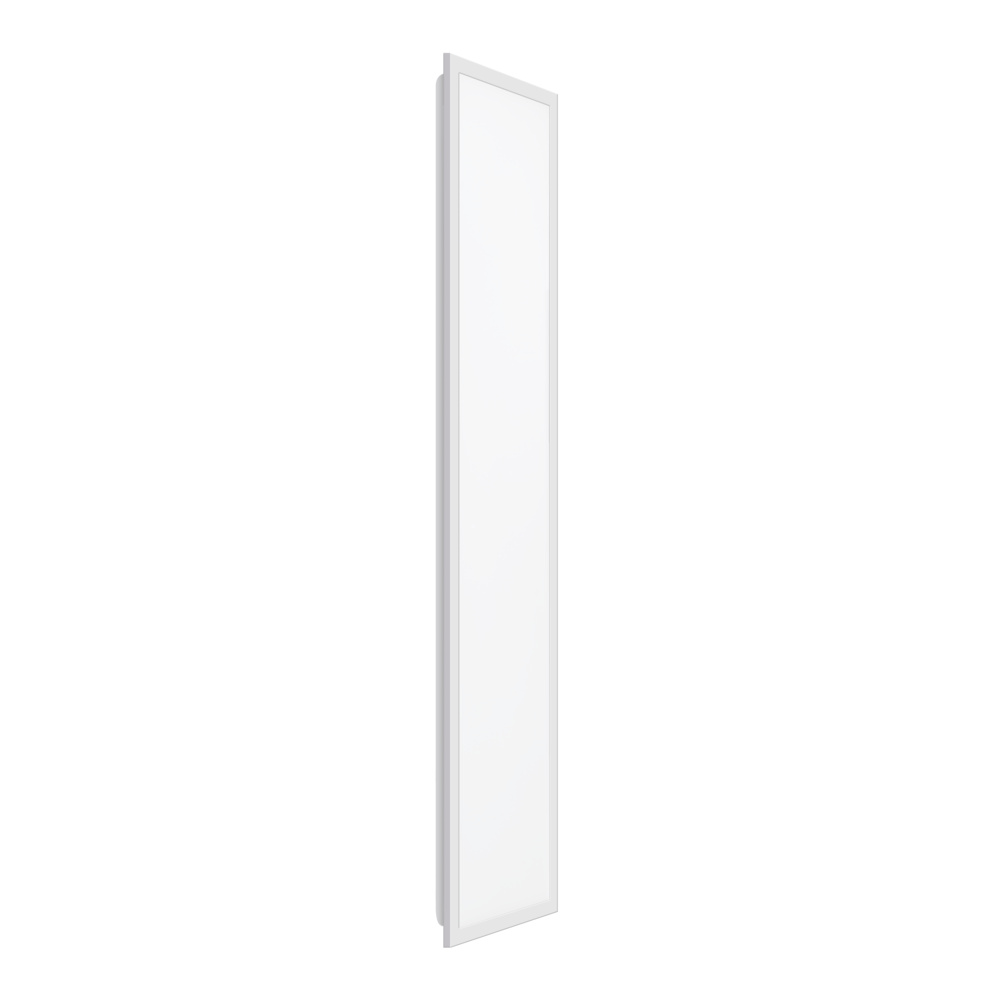

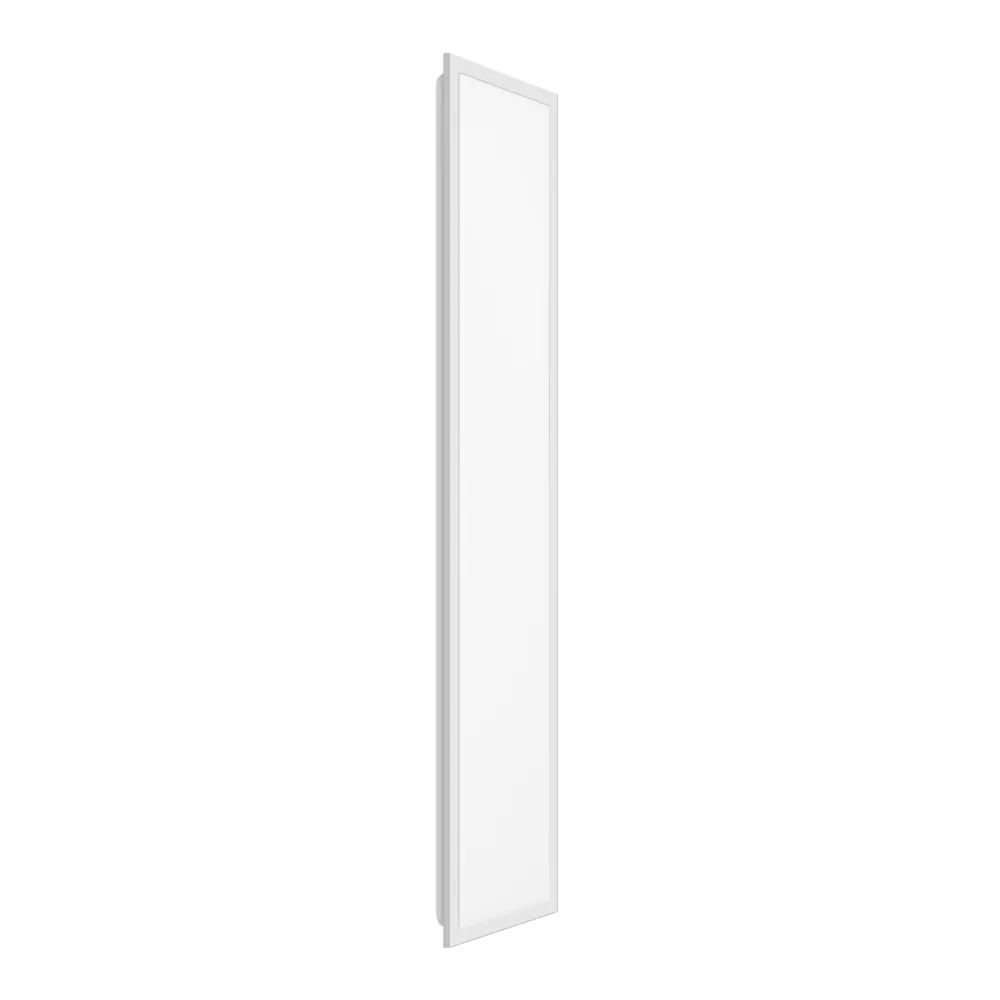

Oprawa PANEL COMPACT 1200 V 33W 840 U19
| Information | Value |
|---|---|
| Supplier | LEDVANCE Sp z o.o |
| Symbol | 4099854017209 |
| GTIN(EAN) | 4099854017209 |
| Price unit | piece |
| Catalog price | 573,48 zł (466,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Oprawy panelowe prostokątne wpuszczane o niskim olśnieniu, do systemów sufitowych 1200 x 300 mm. Cechy produktu: Rama z wytłaczanego aluminium. Dyfuzor z polistyrenu. Trwałość (L80/B50): do 50 tys. godzin (przy 25°C). Zalety produktu: Dobra redukcja olśnienia (UGR < 19). Niewielkie tętnienie światła dzięki specjalnemu statecznikowi elektronicznemu. Oszczędność energii dzięki wysokiej skuteczności świetlnej systemu: do 110 lm/W. Zewnętrzny sterownik z opcjonalną funkcją 3-biegunowego okablowania przelotowego. Dostępne wersje z EUZ DALI. 5-letnia gwarancja. Obszary zastosowań: Bezpośredni zamiennik świetlówkowych opraw oświetleniowych. Biura, sale konferencyjne. Recepcje, hole, korytarze, windy. Nadaje się do systemów sufitów podwieszanych o rozmiarze rastra 1200 x 300 mm. Wyposażenie / Akcesoria: Dostępne są akcesoria do kilku typów montażu. Linka zabezpieczająca oprawę oświetleniową w zestawie. Wstępnie zainstalowane wsporniki zabezpieczające. Stateczniki zewnętrzne w zestawie. Nadaje się do użytku z Emergency Conversion Box. Puszka przyłączeniowa z 5-biegunowym zaciskiem do okablowania przelotowego dostępna oddzielnie dla przewodów o przekroju do 2,5 mm².
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,79 kg |
| Country of origin | Chiny |
| ETIM class: | Ceiling-/wall luminaire |
| Suitable for suspended mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Suitable for built-in mounting: | yes |
| Suitable for surface mounting: | yes |
| Suitable for light line configuration: | no |
| Suitable for workplace according to EN 12464-1: | yes |
| With light source: | yes |
| Housing material: | Aluminium |
| Housing colour: | White |
| Type of grid: | High-gloss |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Nominal current: | 150.000 - 150.000 mA |
| With control gear: | yes |
| Exchangeable control gear: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI-2: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer's proprietary system: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase cut-off: | no |
| Dimming phase cut-on: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push-button: | no |
| No dim function: | yes |
| Light distributor: | Diffuser lens/optic/panel |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Light outlet: | Direct |
| Rated life time L70/B50 at 25 °C: | 70000 h |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 61 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 78 |
| Degree of protection (IP): | IP40 |
| Impact strength: | IK02 |
| Protection class: | II |
| Rated ambient temperature according to IEC 62722-2-1: | -10 - +45 °C |
| Suitable for emergency lighting: | yes |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| With air slots: | no |
| Max. system power: | 33.00 W |
| Luminaire efficacy: | 110 lm/W |
| Rated luminous flux according to IEC 62722-2-1: | 3630 lm |
| Colour of light: | White |
| Colour temperature: | 4000 - 4000 K |
| Colour rendering index CRI: | 80-89 |
| Constant light output (CLO): | no |

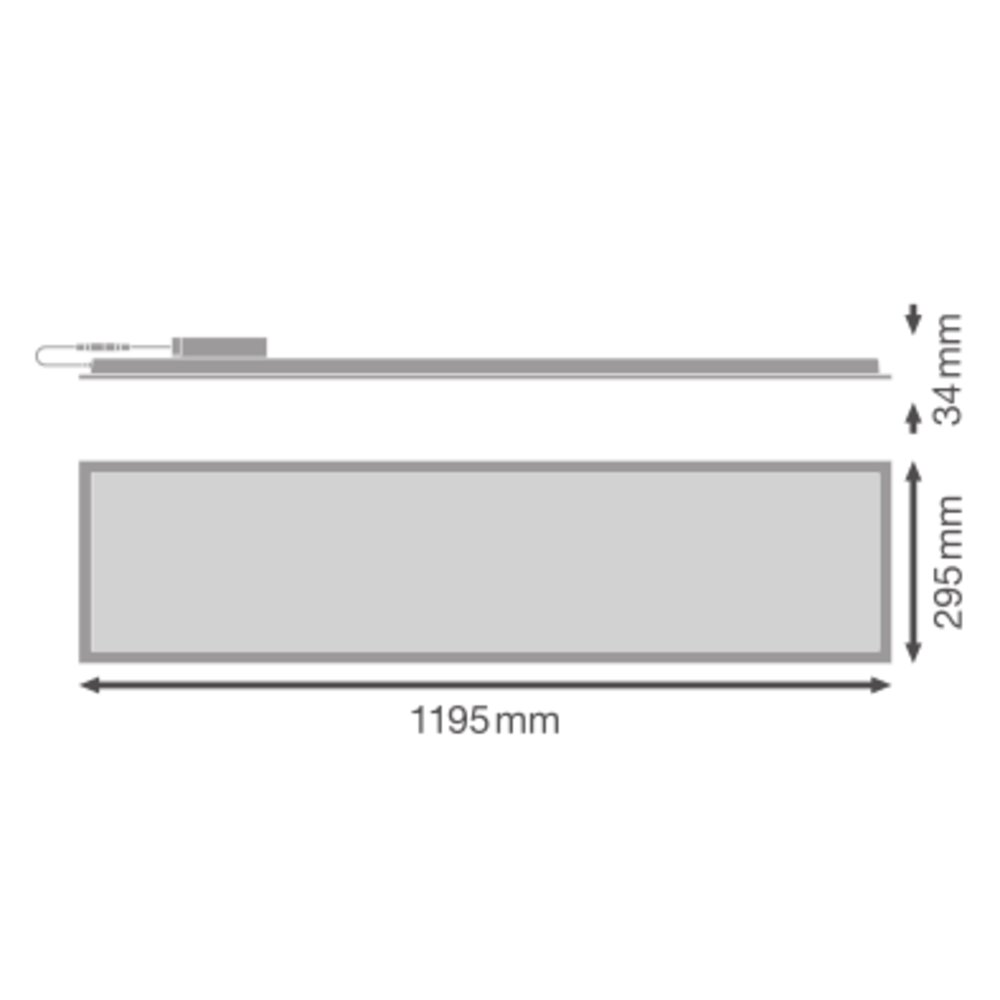

| Width: | 295.00 mm |
| Height/depth: | 34.00 mm |
| Length: | 1195.00 mm |
| Built-in length: | 1190 mm |
| Built-in width: | 290 mm |
| Built-in height/depth: | 50.0 mm |

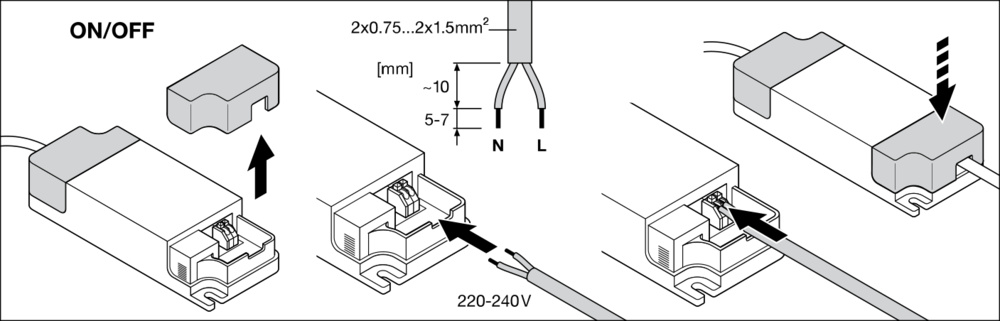

| Type of wiring: | Suitable for through wiring |
| Number of poles: | 2 |
| Connection type: | Push-in clamp |
| Photobiological safety according to EN 62471: | RG0 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
| Operation by Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Power factor: | 0.90 |
| Unified Glare Ratio (UGR): | 19 |
| Suitable for wall mounting: | no |
| Energy efficiency class of the light source according to EU regulation 2019/2015: | E |
| Compatible with Casambi: | no |
| Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C): | no |
