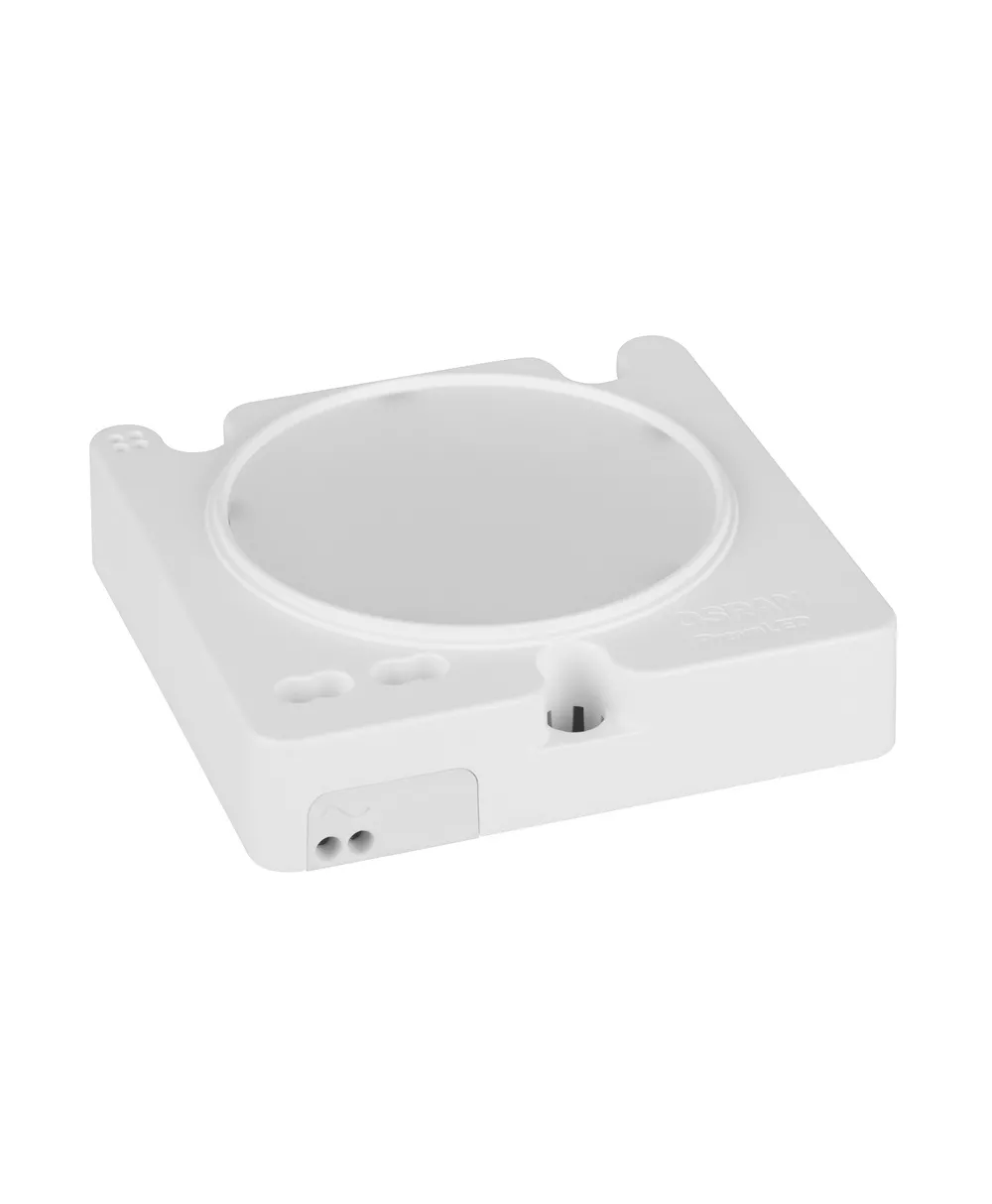

Moduł PANEL-CUBE-AC-1100-830-230V-G4 VS20 OSRAM
Information | Value |
---|---|
Supplier | LEDVANCE Sp z o.o |
Symbol | 4062172239479 |
GTIN(EAN) | 4062172239479 |
Price unit | piece |
Catalog price | 202,95 zł (165,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Moduły LED do oświetlenia punktowego . Cechy produktu: <li>Mains voltage driven LED engine</li><li>Integrated control gear</li><li>Diameter of light emitting surface: 61 mm</li><li>Common mechanic and photometric interfaces</li><li>Initial color consistency: < 3 SDCM</li><li>Lifetime (L70/B50): 50,000 h (temperature at T<sub>c</sub> = 70 °C)</li><li>LED module is reinforced isolated to mounting surface</li><li>Photobiological safety according to IEC/TR 62778, risk group RG1</li>. Zalety produktu: <li>Enables low-cost and compact luminaire designs</li><li>Low profile</li><li>Future-proof dimensions for reliable designs</li><li>Near Lambertian light distribution at 110° beam angle for high quality of light</li><li>Protection against overheating due to thermal derating</li><li>5 year guarantee</li>. Obszary zastosowań: <li>Suitable for diffuser and reflector luminaires</li><li>Hospitality, hotels, restaurants</li><li>Public and commercial buildings</li><li>Offices</li><li>Secondary rooms, garages, storerooms, cellars</li>.
Additional features:
Information | Value |
---|---|
Net weight: | 60 g |
ETIM class: | LED-module |
Lamp power: | 10.50 - 10.50 W |
Voltage type: | AC |
External driver required: | no |
Lamp voltage: | 230 - 230 V |
Shape: | Square |
Colour: | White |
Colour of light according to EN 12464-1: | Neutral white 3300-5300 K |
Flexible: | no |
Colour temperature: | 4000 K |
Luminous intensity: | 423 cd |
Luminous flux: | 964 - 964 lm |
Colour consistency (McAdam ellipse): | SDCM3 |
Suitable for general lighting: | yes |
Suitable for traffic lights: | no |
Suitable for variable road signs: | no |
Suitable for rail traffic: | no |
Suitable for matrix information boards: | no |

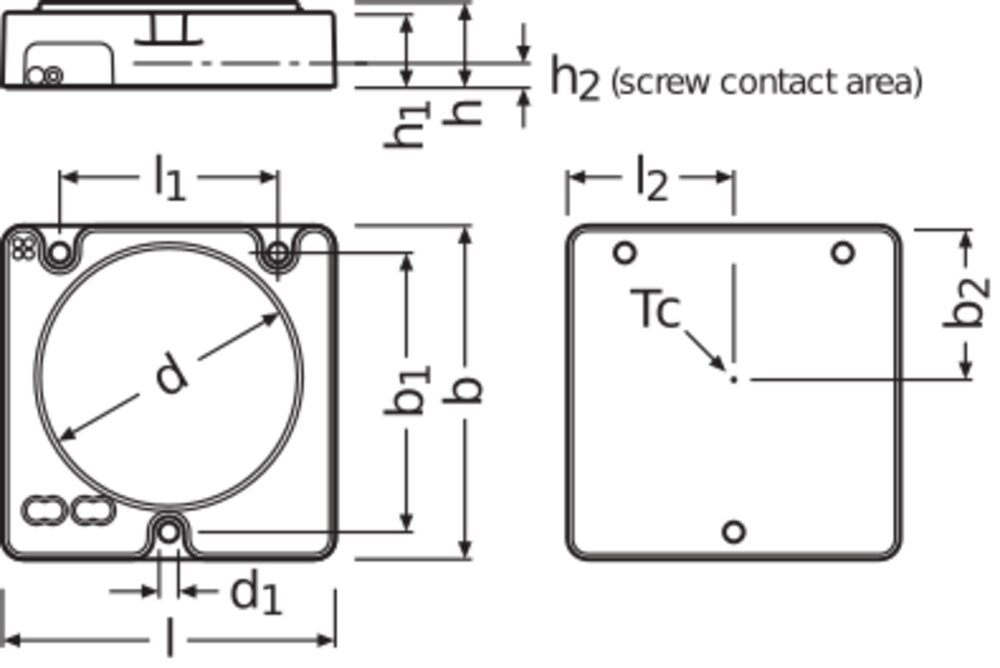

Length: | 82.80 mm |
Width: | 81.60 mm |
Height: | 21.10 mm |
Degree of protection (IP): | IP20 |
Average nominal lifespan: | 50000 h |
Photobiological safety according to EN 62471: | RG1 |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | yes |
Energy efficiency class according to EU regulation 2019/2015: | F |
