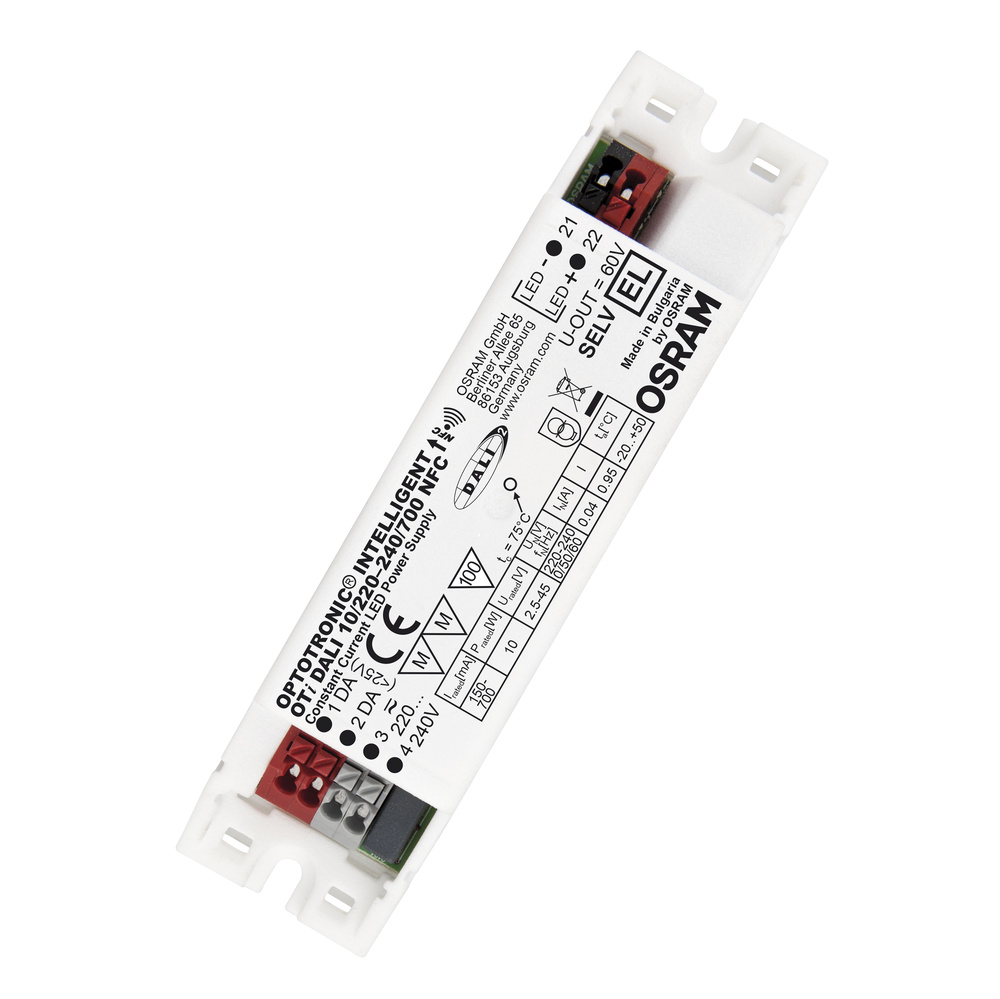

Zasilacz OTI DALI 10/220-240/700 NFC
Information | Value |
---|---|
Supplier | LEDVANCE Sp z o.o |
Symbol | 4062172143899 |
GTIN(EAN) | 4062172143899 |
Price unit | piece |
Catalog price | 296,43 zł (241,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Prąd stały – na zewnątrz. Cechy produktu: <li>Supply voltage: 220…240 V</li><li>Line frequency: 0 Hz, 50…60 Hz</li><li>Line voltage: 198…264 V</li><li>According to EN 61347-1, 61347-2-13, 62384</li><li>RI suppression according to EN 55015:2007+A1:2007/CDN</li><li>Immunity according to EN 61547</li><li>Type of protection: IP20</li>. Korzyści ze stosowania produktu: <li>Versatile DALI window driver due to flexible output characteristic</li><li>Locking and unlocking of luminaire/driver data</li><li>Easy and fast output current setting via NFC</li><li>Very high efficiency</li><li>High-quality dimming of 1…100 % by amplitude dimming</li><li>DALI-2 certified incl. Parts 251, 252, 253</li>. Obszar zastosowań: <li>Suitable for downlights, spotlights and LED panels</li><li>Suitable for use in luminaires with flexible current setting</li><li>Installation in emergency lighting systems according to IEC 61347-2-13, appendix J</li><li>Suitable for indoor SELV installations</li><li>Suitable for luminaires of protection classes I and II</li>.
Additional features:
Information | Value |
---|---|
Net weight: | 58 g |
ETIM class: | LED driver |
Model: | Dynamic |
Suitable for outdoor use: | no |
Dimming 0-10 V: | no |
Dimming 1-10 V: | no |
Dimming DALI: | yes |
Dimming DSI: | no |
Dimming DMX: | no |
Dimming potentiometer (integrated): | no |
Dimming LineSwitch: | no |
Dimming manufacturer's proprietary system: | no |
Dimming mains voltage modulation: | no |
Dimming phase cut-off: | no |
Dimming phase cut-on: | no |
Dimming programmable: | no |
Dimming RF: | no |
Dimming Sine Wave Reduction: | no |
Dimming Touch and Dim: | no |
Dimming Zigbee: | no |
Dimming with push-button: | no |
Constant light output (CLO): | yes |
No dim function: | no |
Housing: | Plastic housing |
Suitable for constant current: | yes |
Suitable for constant voltage: | no |
Suitable for DC-voltage (primary side): | yes |
Degree of protection (IP): | IP20 |
Protection class: | II |

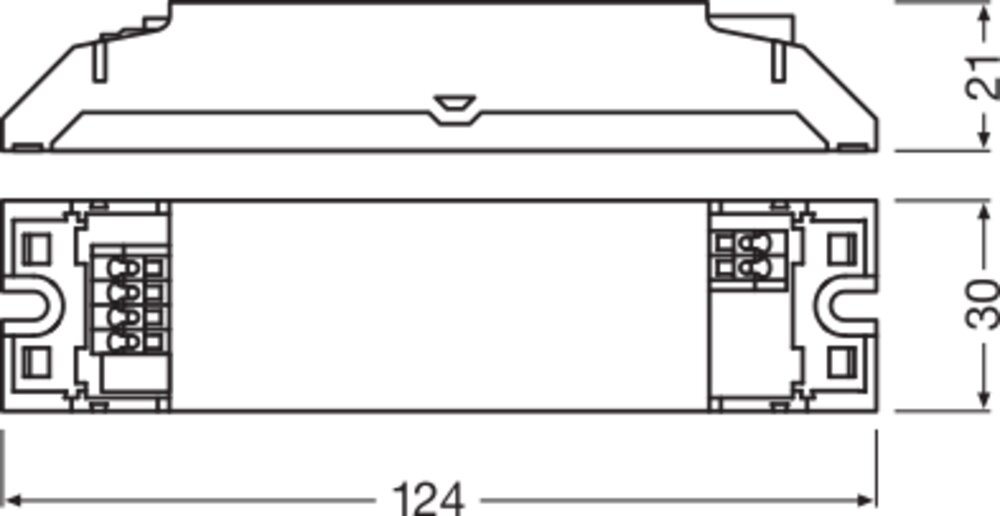

Length: | 124.00 mm |
Width: | 31.00 mm |
Height: | 21.00 mm |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | yes |
