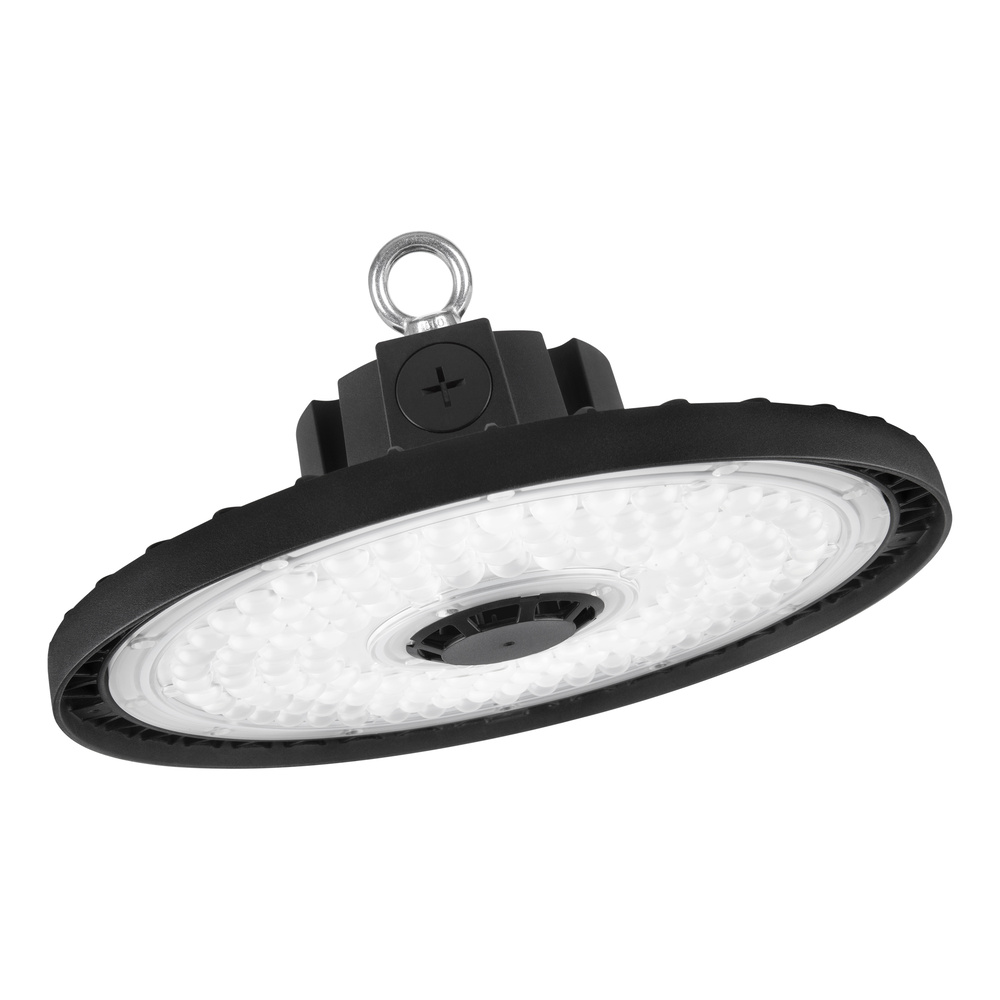

Oprawa HB P 200W 840 70DEG IP66 PS LEDV
| Information | Value |
|---|---|
| Supplier | LEDVANCE Sp z o.o |
| Symbol | 4058075844322 |
| GTIN(EAN) | 4058075844322 |
| Price unit | piece |
| Catalog price | 1 714,03 zł (1 393,52 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

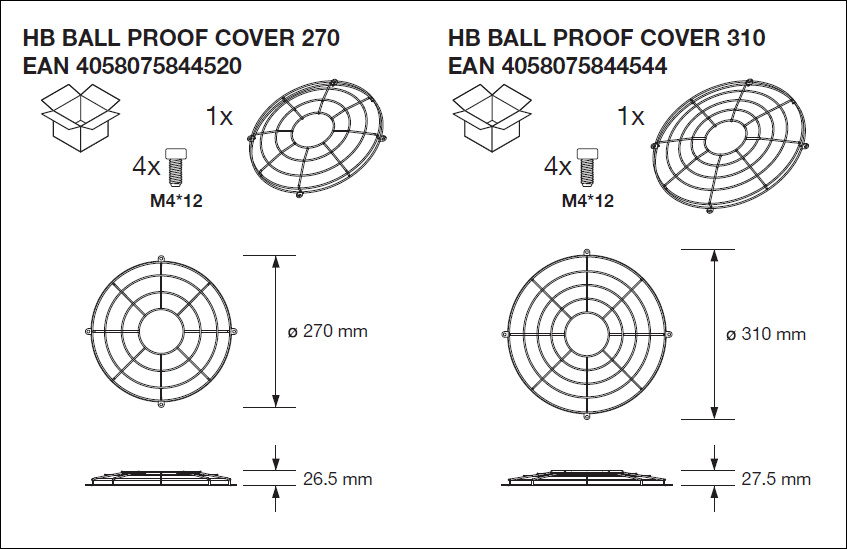

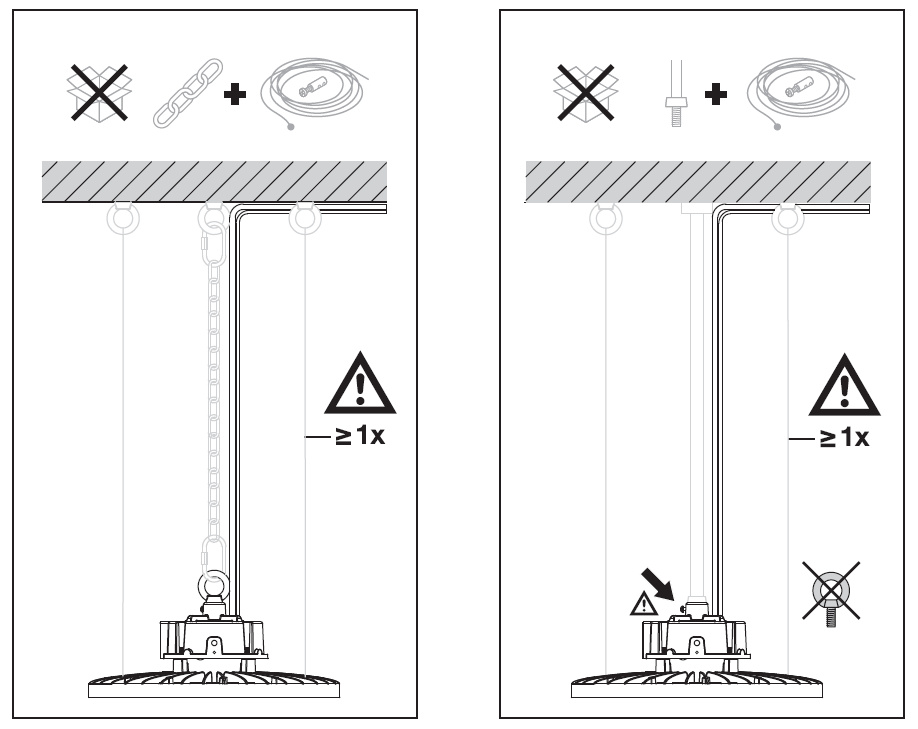

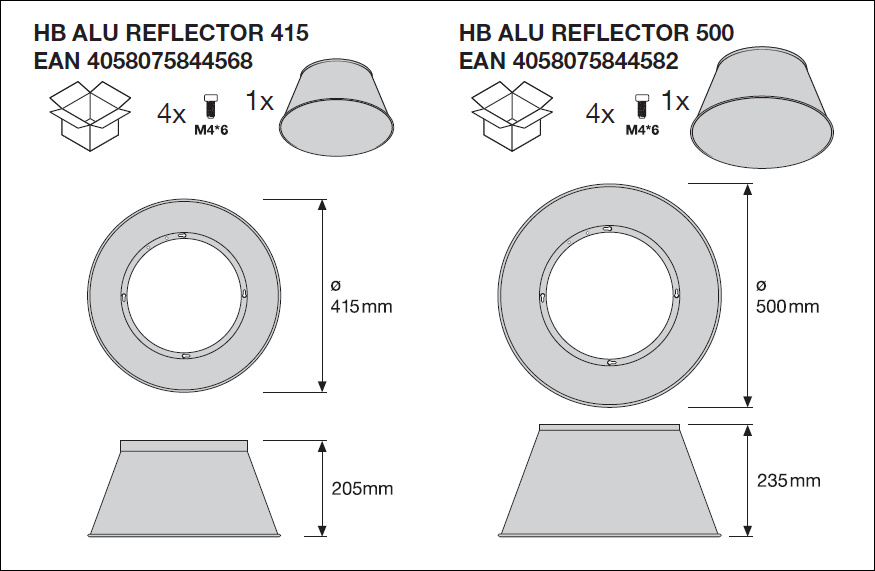

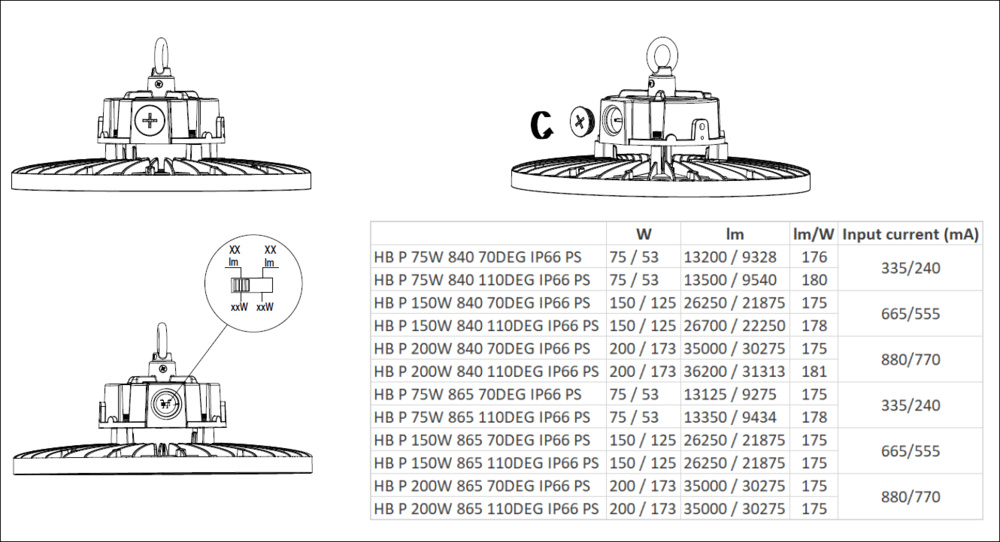

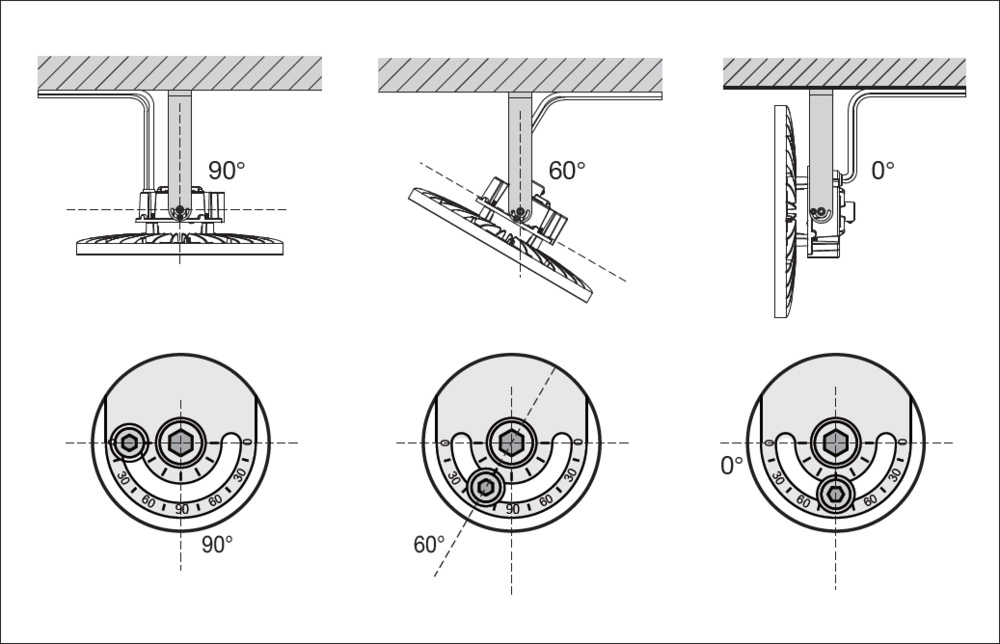

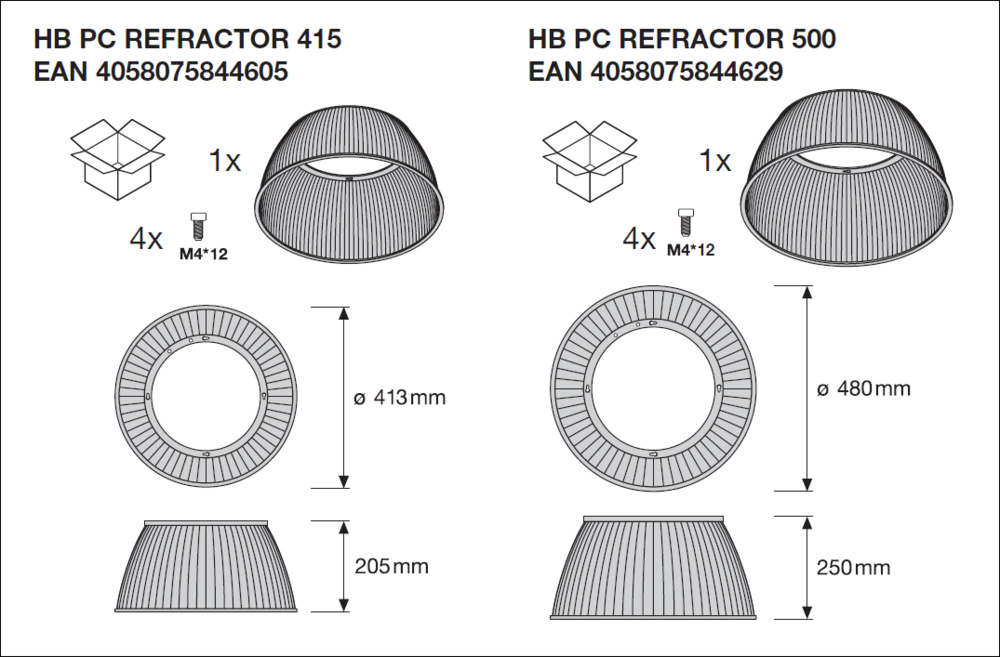

Oprawy High-bay o skuteczności świetlnej do 181 lm/W i niskim wskaźniku UGR. Cechy produktu: Funkcja Multi Lumen: możliwość wyboru stopni mocy. Różny strumień świetlny i kąt rozsyłu światła dla wysokości montażu od ~ 6 m do 18 m w temperaturze barwowej światła 4000 K lub 6500 K. Możliwość ściemniania 0-10 V. Trwałość (L80/B10): do 100 000 h (przy 35°C). Zalety produktu: Wysoka wszechstronność dzięki wybieranym stopniom mocy (Multi Lumen) na obudowie. Poprawiona wartość UGR w porównaniu do poprzednich generacji, aż do UGR ≤ 19 (<150W, 70°) w połączeniu z odbłyśnikiem. Wysoka skuteczność świetlna. Oszczędność energii do 70% w porównaniu z konwencjonalnymi oprawami oświetleniowymi typu high bay. Zoptymalizowana masa i rozmiary dzięki kompaktowej konstrukcji. Obszary zastosowań: Bezpośredni zamiennik opraw oświetleniowych typu High Bay do lamp rtęciowych lub metalohalogenkowych. Magazyny, hale logistyczne. Przemysł. Wysokie pomieszczenia (np.: centra handlowe, lotniska, budynki komercyjne, hole). Wyposażenie / Akcesoria: Zaczep do montażu w zestawie. Uchwyty montażowe, odbłyśniki i refraktory dostępne jako oddzielne akcesoria.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,3 kg |
| Country of origin | Chiny |
| ETIM class: | High bay luminaire |
| Lamp type: | LED not exchangeable |
| With light source: | yes |
| Suitable for number of light sources: | 0 |
| Suitable for auxiliary lamp: | no |
| Lamp holder: | None |
| Housing material: | Aluminium |
| Housing colour: | Black |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Nominal current: | 770 - 880 mA |
| Type of control gear: | Electronic ballast |
| Exchangeable control gear: | no |
| With control gear: | yes |
| Dimming 0-10 V: | yes |
| Dimming 1-10 V: | yes |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming phase cut-off: | no |
| Dimming phase cut-on: | no |
| Dimming potentiometer (integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer's proprietary system: | no |
| Dimming mains voltage modulation: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push-button: | no |
| No dim function: | no |
| Light distributor: | None |
| Light sharing: | Symmetric |
| Reflector: | None |
| Energy efficiency class of the light source according to EU regulation 2019/2015: | B |
| Colour consistency (McAdam ellipse): | SDCM4 |
| Rated life time L70/B50 at 25 °C: | 120000 h |
| Degree of protection (IP): | IP66 |
| Degree of protection (NEMA): | Other |
| Impact strength: | IK10 |
| Ball-proof: | no |
| Protection class: | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | yes |
| Rated ambient temperature according to IEC 62722-2-1: | -30 - +50 °C |
| Emergency power supply integrated: | no |
| Suitable for emergency lighting: | no |
| Max. system power: | 200 W |
| Rated luminous flux according to IEC 62722-2-1: | 35000 lm |
| Luminaire efficacy: | 175 lm/W |
| Colour of light: | White |
| Colour temperature: | 4000 - 4000 K |
| Colour rendering index CRI: | 80-89 |
| Photobiological safety according to EN 62471: | RG1 |
| Power factor: | 0.95 |
| Constant light output (CLO): | no |
| Colour of light adjustable: | No |
| Beam angle adjustable: | No |
| Luminous flux adjustable: | Positions |

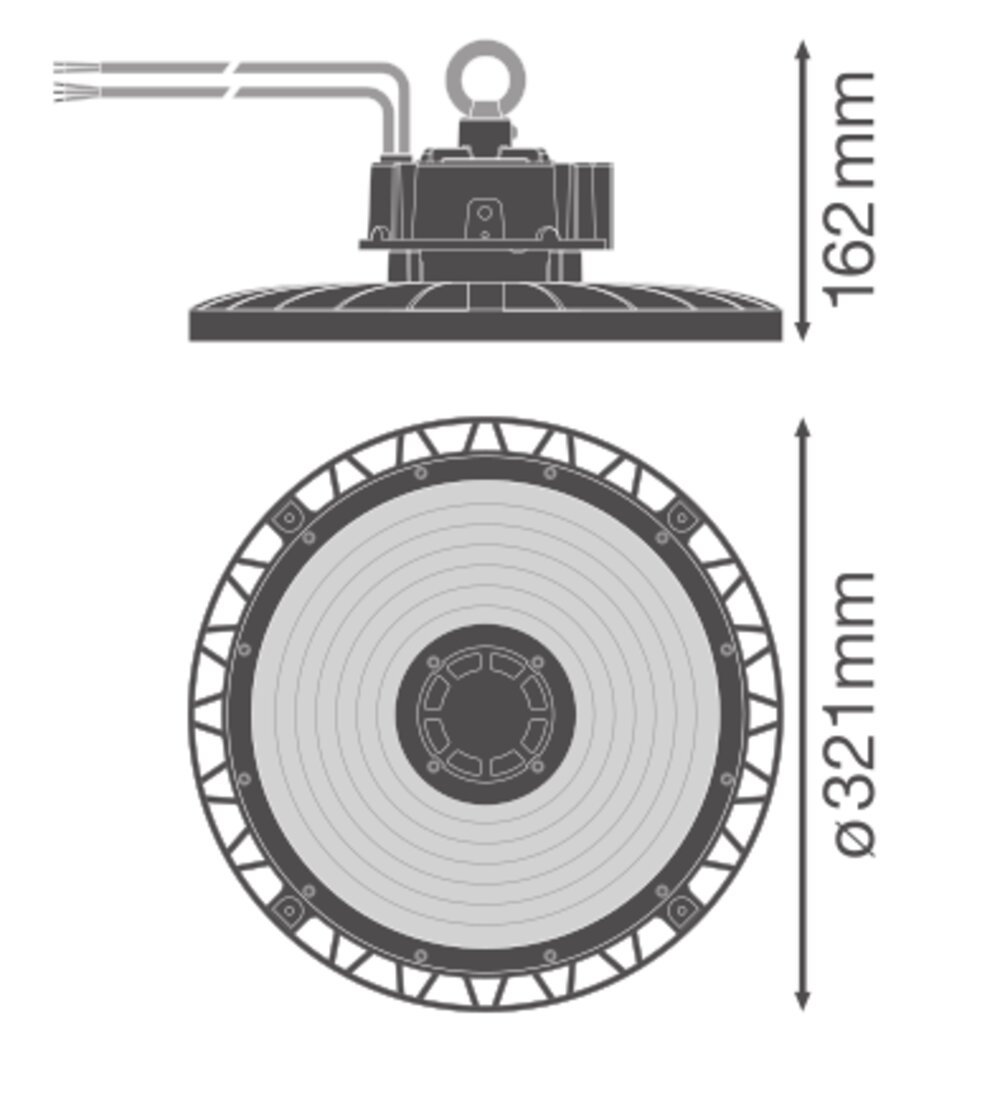

| Height/depth: | 162.00 mm |
| Length: | 321.00 mm |
| Outer diameter: | 321.00 mm |
| Type of wiring: | Ending |
| Number of poles: | 3 |
| Conductor cross section: | 1.0 mm² |
| Connection type: | Other |
| With protective cover: | yes |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 9 |
| Operation by Bluetooth: | no |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 12 |
| Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C): | no |
