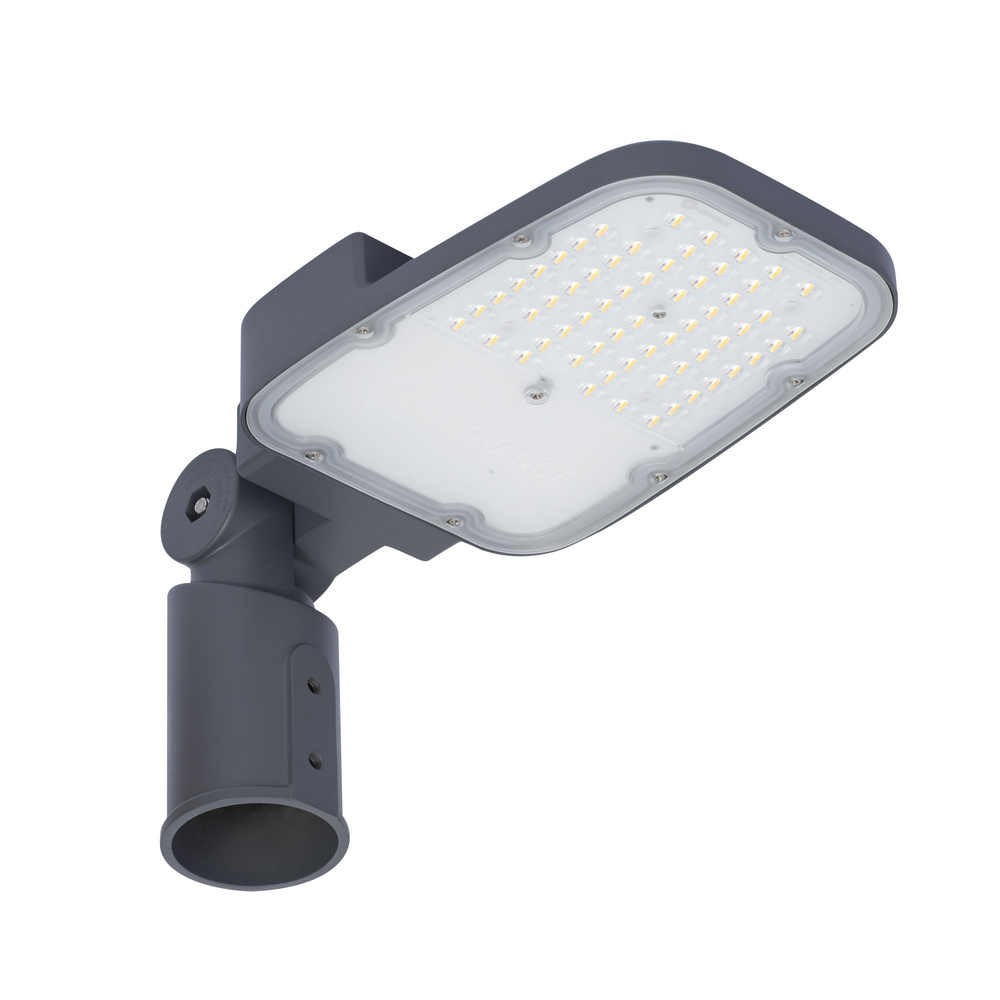

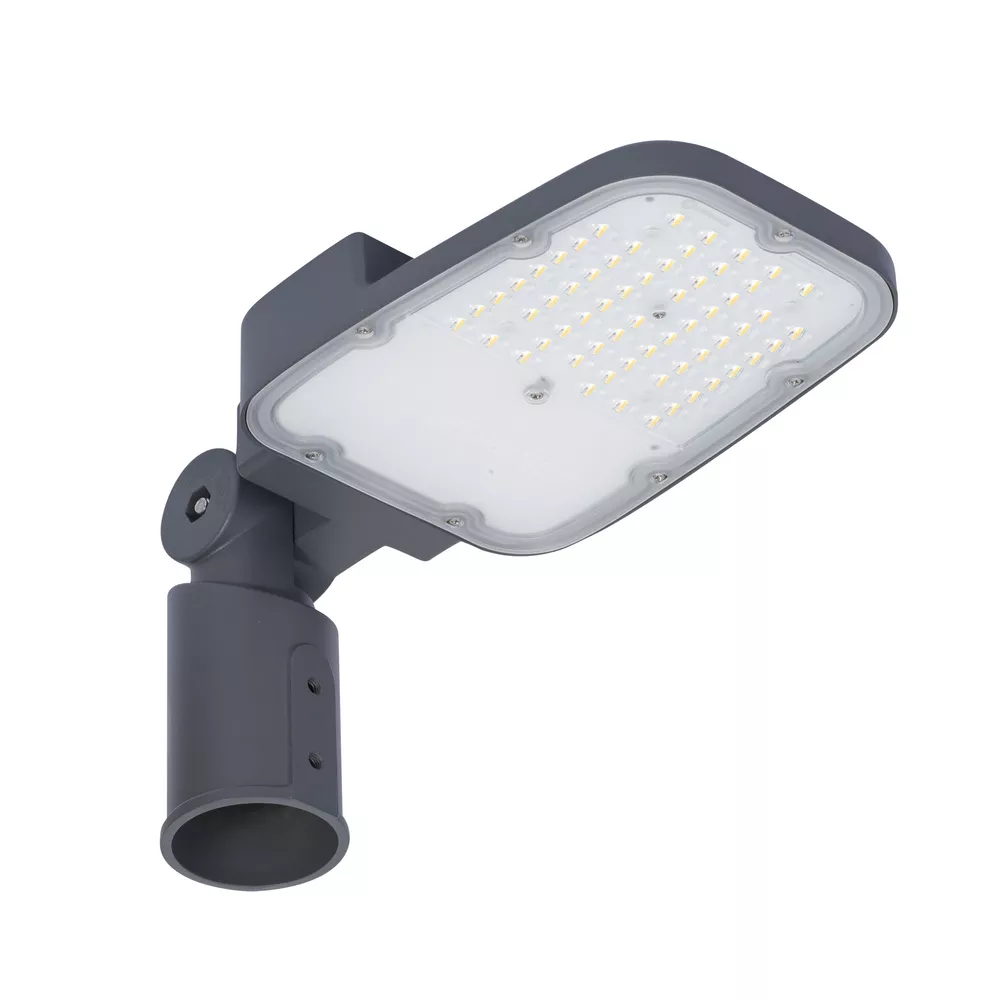

Oprawa STREETLIGHT AREA SM V 30W 765 RV20ST GY
| Information | Value |
|---|---|
| Supplier | LEDVANCE Sp z o.o |
| Symbol | 4058075725072 |
| GTIN(EAN) | 4058075725072 |
| Price unit | piece |
| Catalog price | 483,71 zł (393,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Możliwość zastosowania do oświetlenia ulicznego i obszarów zewnętrznych. Cechy produktu: Rozsył światła zoptymalizowany dla ulic o szerokości zbliżonej do wysokości słupa. W zestawie adapter montażowy, odpowiedni do wysięgników o średnicy 48...60 mm. Oprawa przystosowana do montażu bocznego lub na szczycie słupa. Regulacja kąta nachylenia +/- 30° bez otwierania obudowy. Wysoka skuteczność świetlna: do 135 lm/W. Zakres temperatury pracy: -30…50 °C. Wysoka ochrona przeciwprzepięciowa: dostępne wersje 2 kV i 10 kV (L/N-PE). Zalety produktu: Funkcjonalna konstrukcja i minimalistyczny wygląd. Niskie koszty konserwacji i eksploatacji dzięki długiej trwałości lamp LED. 5-letnia gwarancja. Obszary zastosowań: Zastosowania zewnętrzne (IP66). Drogi klasy M, C i P wg. Wymagań PN- EN 13201. Parkingi. Oświetlenie przestrzeni.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,4 kg |
| Country of origin | Chiny |
| ETIM class: | Luminaire for streets and places |
| Mounting method: | Post top |
| Lamp type: | LED not exchangeable |
| With light source: | yes |
| Suitable for number of light sources: | 0 |
| Housing material: | Aluminium |
| Surface protection: | Powder coating |
| Housing colour: | Grey |
| Voltage type: | AC |
| Nominal voltage: | 100 - 240 V |
| Nominal current: | 135.000 - 135.000 mA |
| With control gear: | yes |
| Exchangeable control gear: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer's proprietary system: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase cut-off: | no |
| Dimming phase cut-on: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push-button: | no |
| No dim function: | yes |

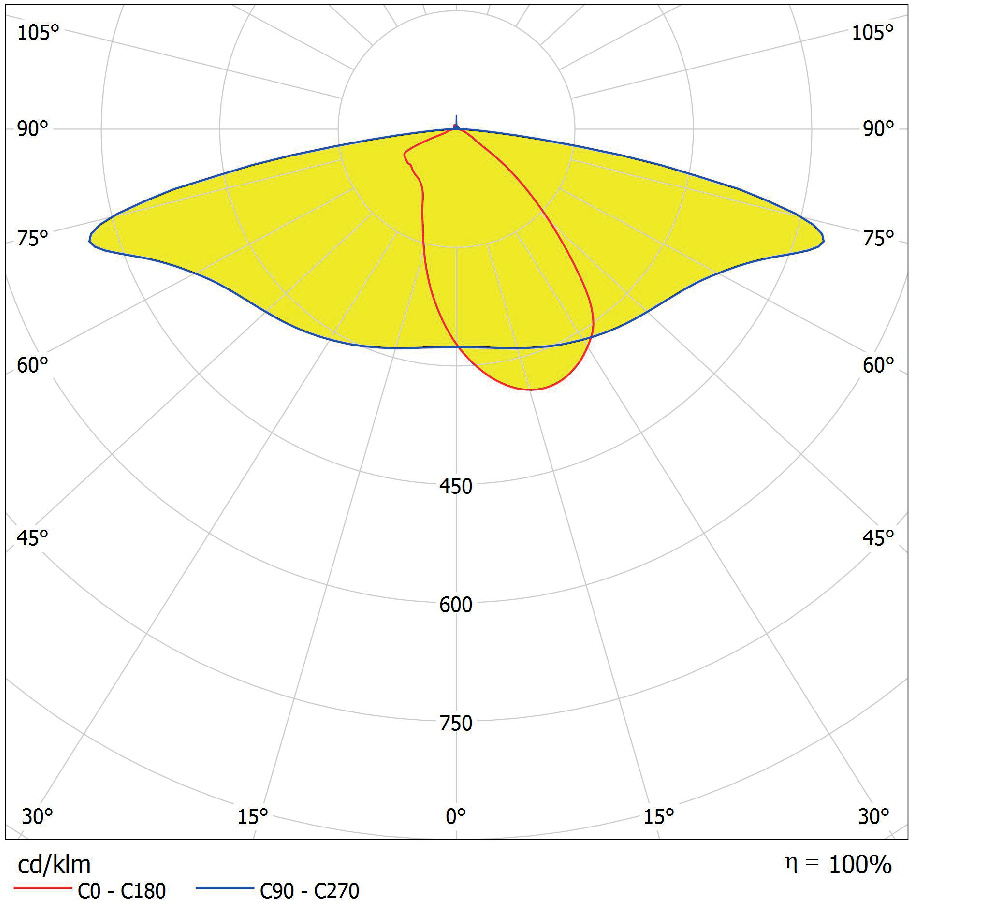

| Light distributor: | Focal lens |
| Rated life time L70/B50 at 25 °C: | 70000 h |
| Degree of protection (IP): | IP66 |
| Adjustable optics: | no |
| Impact strength: | IK08 |
| Protection class: | I |
| Rated ambient temperature according to IEC 62722-2-1: | -30 - +50 °C |
| Remote control: | None |
| With radio control: | no |
| Constant light output (CLO): | no |
| With light regulation program control: | no |
| With connection cable: | yes |
| Cable length: | 0.5 m |
| Max. system power: | 30.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 4050 lm |
| Luminaire efficacy: | 135 lm/W |
| Colour temperature: | 6500 - 6500 K |
| Colour rendering index CRI: | 70-79 |

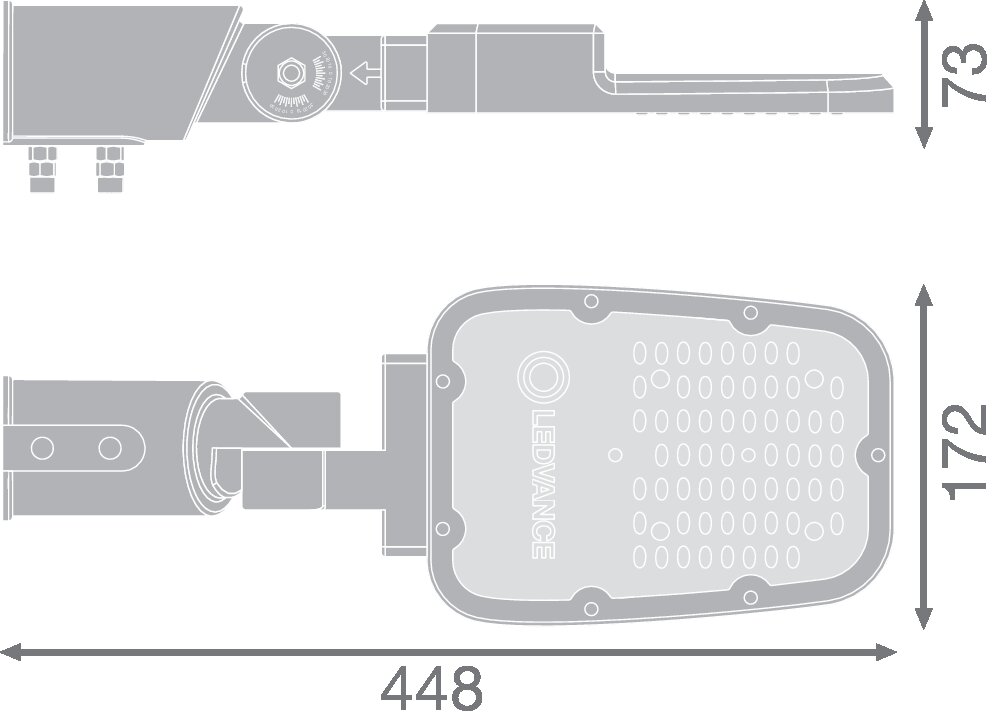

| Width: | 172.00 mm |
| Height/depth: | 73.00 mm |
| Length: | 448.00 mm |
| Type of wiring: | Ending |
| Number of poles: | 3 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Connection type: | Other |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Lamp holder: | None |
| Material cover: | Plastic, opal |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Power factor: | 0.90 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 82 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 88 |
| Operation by Bluetooth: | no |
| With light sensor: | no |
