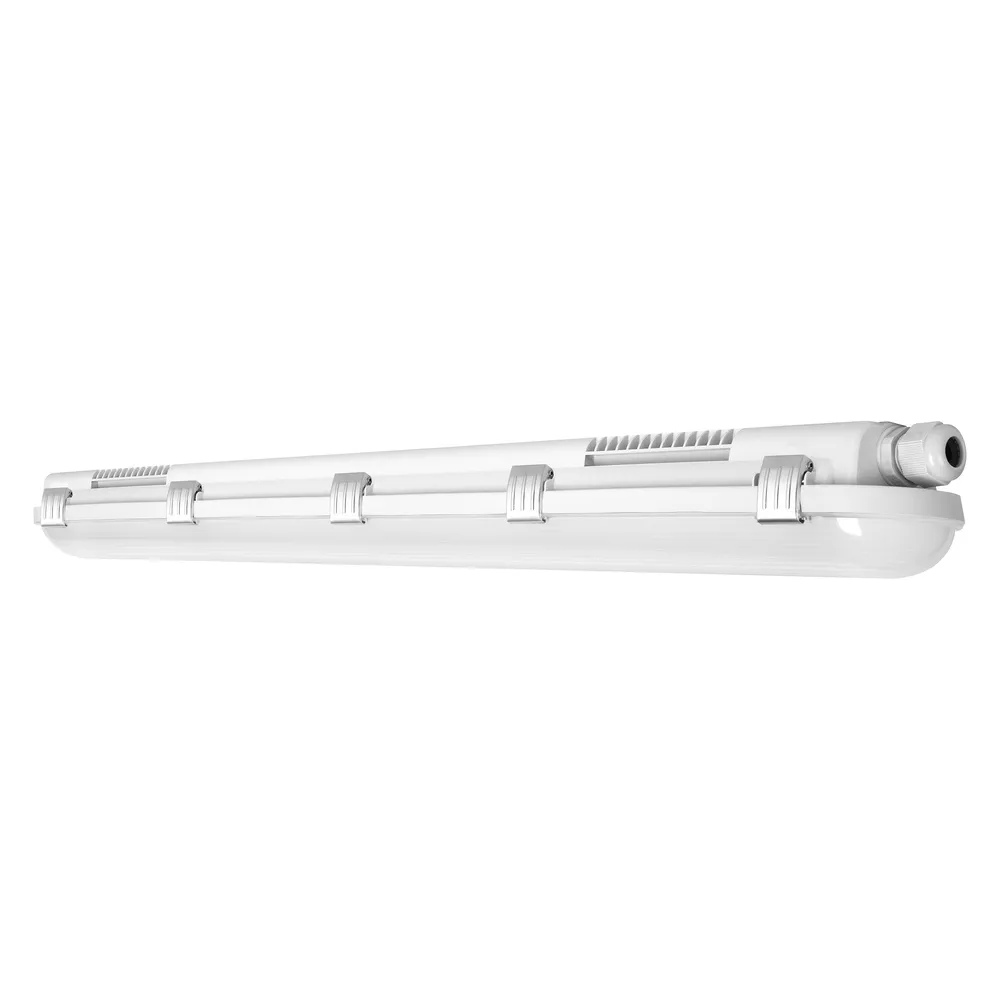

Oprawa DAMP PROOF DALI 1200 18W 840 IP65 GY
Information | Value |
---|---|
Supplier | LEDVANCE Sp z o.o |
Symbol | 4058075541641 |
GTIN(EAN) | 4058075541641 |
Price unit | piece |
Catalog price | 845,44 zł (687,35 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Odporne na wilgoć oprawy oświetleniowe, o klasycznym kształcie, z interfejsem DALI. Cechy produktu: Wysoka skuteczność świetlna: do139 lm/W. Stopień ochrony: IP65. Kąt wiązki światła: 110°. Korzyści ze stosowania produktu: Certyfikat DALI-2 zapewnia wysoką kompatybilność. Wysokiej klasy zasilacz o trwałości do 100 000 godzin. Zasilacz przystosowany jest do systemów awaryjnego oświetlenia ewakuacyjnego zgodnie z EN 50172. Konfiguracja sterownika i ściemniania możliwe jest za pośrednictwem sieci zasilającej. Niskie tętnienie ≤ 3%. 5-letnia gwarancja. Obszar zastosowań: Idealne do pomieszczeń przemysłowych i magazynowych. Instalacje DALI. Parkingi i przejścia podziemne. Garaże. Warsztaty, linie montażowe. Wyposażenie / Akcesoria: Klamry ze stali nierdzewnej z wkrętami zabezpieczającymi w zestawie. Akcesoria do montażu w zestawie (zestaw do montażu podwieszanego, zestaw zabezpieczający przed kradzieżą).
Additional features:
Information | Value |
---|---|
Net weight: | 1,43 kg |
ETIM class: | Ceiling-/wall luminaire |
Suitable for suspended mounting: | yes |
Suitable for ceiling mounting: | yes |
Suitable for built-in mounting: | no |
Suitable for surface mounting: | yes |
Suitable for light line configuration: | no |
Suitable for workplace according to EN 12464-1: | no |
Lamp type: | LED not exchangeable |
With light source: | yes |
Suitable for number of light sources: | 0 |
Housing material: | Plastic |
Surface protection housing: | Untreated |
Housing colour: | Grey |
Material cover: | Plastic, opal |
Type of grid: | Other |
Voltage type: | AC |
Nominal voltage: | 220 - 240 V |
Nominal current: | 100 - 100 mA |
Type of control gear: | Electronic ballast |
With control gear: | yes |
Exchangeable control gear: | no |
Dimming 0-10 V: | no |
Dimming 1-10 V: | no |
Dimming DALI-2: | yes |
Dimming DALI: | yes |
Dimming DMX: | no |
Dimming DSI: | no |
Dimming potentiometer (integrated): | no |
Dimming LineSwitch: | no |
Dimming manufacturer's proprietary system: | no |
Dimming mains voltage modulation: | no |
Dimming phase cut-off: | no |
Dimming phase cut-on: | no |
Dimming programmable: | no |
Dimming RF: | no |
Dimming Sine Wave Reduction: | no |
Dimming Touch and Dim: | no |
Dimming Zigbee: | no |
Dimming with push-button: | no |
No dim function: | no |
Light distributor: | Diffuser lens/optic/panel |
Colour consistency (McAdam ellipse): | SDCM4 |
Light outlet: | Direct |
Rated life time L70/B50 at 25 °C: | 70000 h |
Max. number of luminaires per miniature circuit breaker B16 (MCB): | 13 |
Max. number of luminaires per miniature circuit breaker C16 (MCB): | 36 |
Degree of protection (IP): | IP65 |
Impact strength: | IK08 |
Protection class: | I |
Rated ambient temperature according to IEC 62722-2-1: | -25 - +40 °C |
Suitable for emergency lighting: | no |
Emergency power supply integrated: | no |
With movement sensor: | no |
With light sensor: | no |
Covering of the luminaire with thermally insulating material possible: | no |
With air slots: | no |
Max. system power: | 18.00 W |
Luminaire efficacy: | 133 lm/W |
Rated luminous flux according to IEC 62722-2-1: | 2400 lm |
Colour of light: | White |
Colour temperature: | 4000 - 4000 K |
Colour rendering index CRI: | 80-89 |

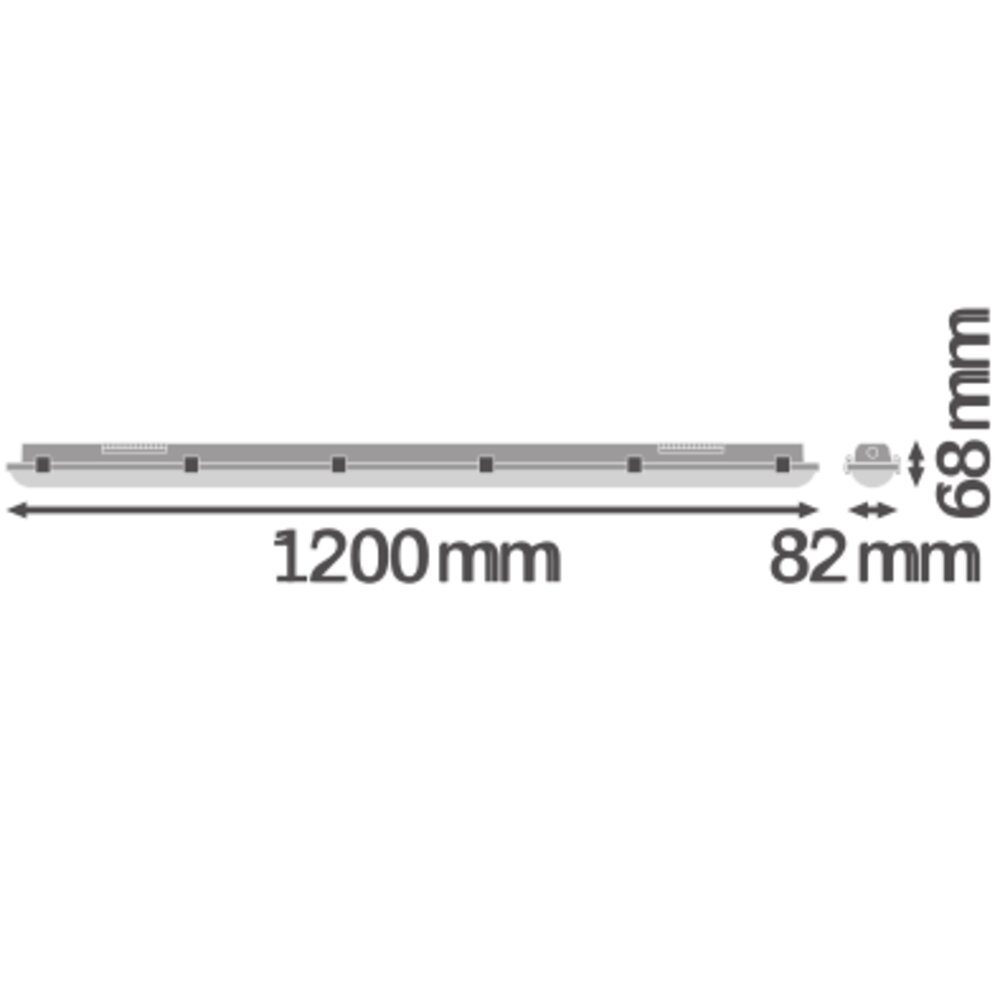

Width: | 82.00 mm |
Height/depth: | 68.00 mm |
Length: | 1200.00 mm |
Type of wiring: | Suitable for through wiring |
Number of poles: | 5 |
Connection type: | Push-in clamp |
Photobiological safety according to EN 62471: | RG0 |
Colour of light adjustable: | No |
Luminous flux adjustable: | No |
Beam angle adjustable: | No |
Operation by Bluetooth: | no |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | yes |
Power factor: | 0.87 |
