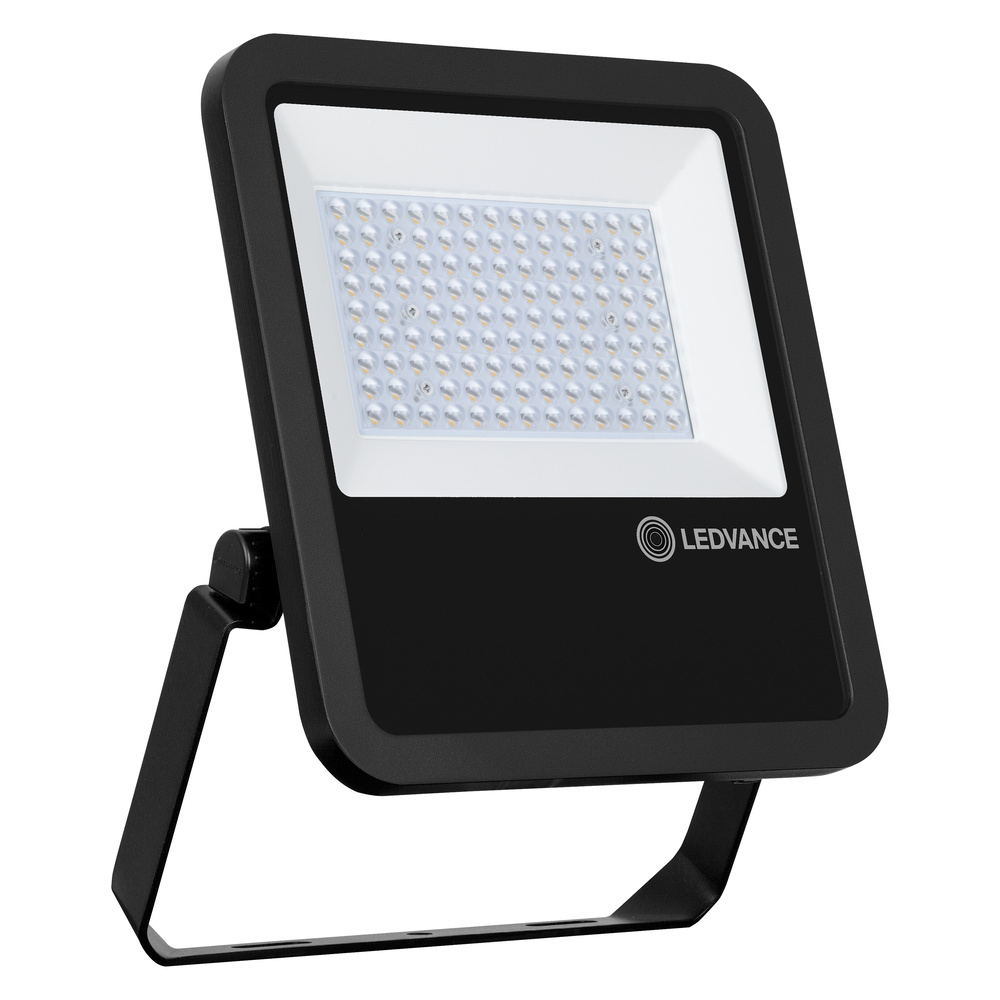

Naświetlacz FLOOD LED AREA 72W 840 ASYM 48x92 black
| Information | Value |
|---|---|
| Supplier | LEDVANCE Sp z o.o |
| Symbol | 4058075539747 |
| GTIN(EAN) | 4058075539747 |
| Price unit | piece |
| Catalog price | 1 479,06 zł (1 202,49 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Floodlight, naświetlacz z rozsyłem światła formowanym przez soczewki, skuteczność świetlna 140 lm/W. Cechy produktu: Wysoka skuteczność świetlna: do 140 lm / W. Asymetryczny rozsył strumienia świetlnego do różnych obszarów zastosowań. Zintegrowany zasilacz szerokonapięciowy, 100 - 277 V AC. Montaż pod kątem (30 °) wspornik montażowy i przechylanie do 210 °. Stopień ochrony: IP65. Odporność na uderzenia: IK08. Temperatura otoczenia podczas pracy: -30…+50°C. Wysoka ochrona przed przepięciami: do 6 kV (L/N-PE), 4 kV (L-N). Zintegrowany odpowietrznik zapobiegający kondensacji wody wewnątrz oprawy oświetleniowej. Fabrycznie zainstalowany, elastyczny przewód o długości 1 m (H05RN-F), 3 x 1,0 mm². Zalety produktu: Oszczędność energii aż do 90% (w porównaniu z naświetlaczami z lampami halogenowymi). Oszczędność energii do 45 % w porównaniu z oprawami oświetleniowymi wykorzystującymi konwencjonalne lampy wyładowcze. Wysoka jednorodność światła. Brak górnego współczynnika rozsyłu światła (ULOR 0%) w przypadku zamontowania pod kątem 0°. 5-letnia gwarancja. Obszary zastosowań: Bezpośredni zamiennik opraw oświetleniowych wykorzystujących lampy wyładowcze. Zastosowanie na zewnątrz (IP65). Strefy publiczne. Przemysł. Obiekty sportowe. Parking.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,7 kg |
| Country of origin | Chiny |
| ETIM class: | Downlight/spot/floodlight |
| Suitable for surface mounting: | yes |
| Suitable for built-in mounting: | no |
| Suitable for wall mounting: | yes |
| Suitable for suspended mounting: | no |
| Suitable for ceiling mounting: | no |
| Suitable for traverse mounting: | no |
| Suitable for pedestal/floor mounting: | yes |
| Suitable for light-track mounting: | no |
| Suitable for clamp-mounting: | no |
| Suitable for low voltage cable system: | no |
| Adjustability: | Swivelling |
| With movement sensor: | no |
| With light sensor: | no |
| Lamp type: | LED not exchangeable |
| With light source: | yes |
| Suitable for number of light sources: | 0 |
| Housing material: | Aluminium |
| Surface protection: | Powder coating |
| Housing colour: | Black |
| Surface brushed: | no |
| Voltage type: | AC |
| Nominal voltage: | 100 - 277 V |
| Type of control gear: | Electronic ballast |
| With control gear: | yes |
| Exchangeable control gear: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI-2: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer's proprietary system: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase cut-off: | no |
| Dimming phase cut-on: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push-button: | no |
| No dim function: | yes |
| Reflector: | None |
| Light distributor: | Focal lens |
| Light sharing: | Asymmetric |
| Light outlet: | Direct |
| Rated life time L70/B50 at 25 °C: | 70000 h |
| Constant light output (CLO): | no |
| Degree of protection (IP): | IP65 |
| Impact strength: | IK08 |
| Protection class: | I |
| Rated ambient temperature according to IEC 62722-2-1: | -30 - +50 °C |
| Max. system power: | 72.00 W |
| Colour of light: | White |
| Colour temperature: | 4000 - 4000 K |
| Colour rendering index CRI: | 80-89 |
| Luminous flux: | 10000 - 10000 lm |
| Rated luminous flux according to IEC 62722-2-1: | 10000 lm |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |

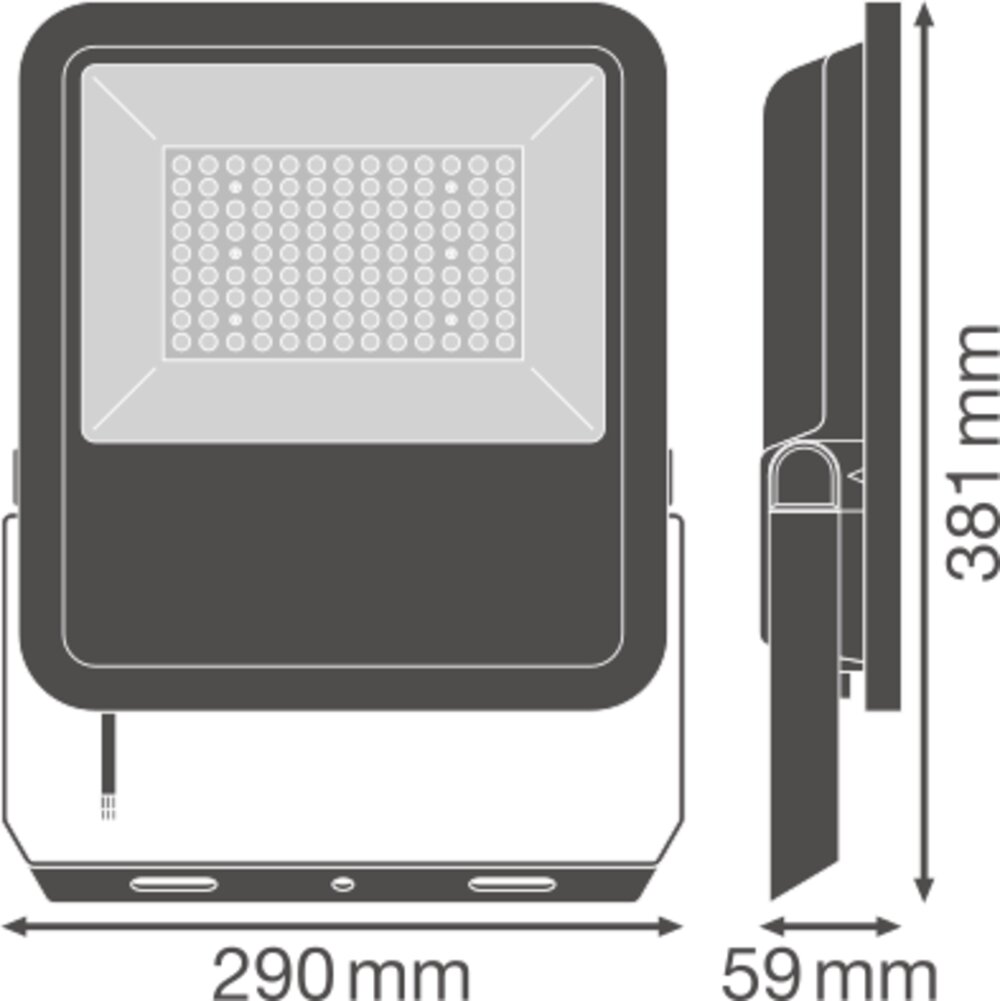

| Width: | 290.00 mm |
| Height/depth: | 59.00 mm |
| Length: | 381.00 mm |
| Type of wiring: | Ending |
| Number of poles: | 3 |
| Connection type: | Push-in clamp |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 22 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 25 |
| Emergency power supply integrated: | no |
| Luminaire efficacy: | 139 lm/W |
| Photobiological safety according to EN 62471: | RG1 |
| Suitable for workplace according to EN 12464-1: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| IFTTT support available: | yes |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| Lamp holder: | None |
| Power factor: | 0.90 |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | yes |
| Nominal current: | 380 - 380 mA |
| Operation by Bluetooth: | no |
