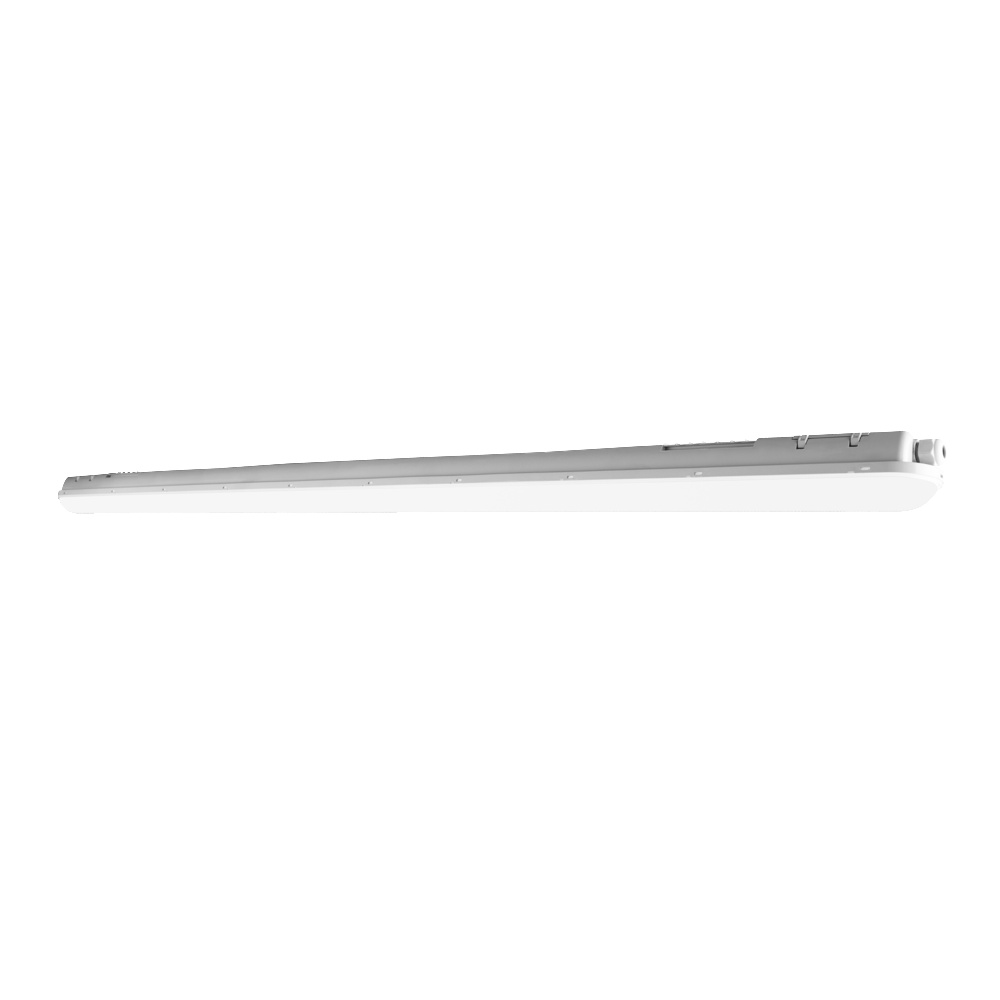

Oprawa DAMP PROOF LED ECO HIGH LUMEN OUTPUT 66W 865 1500 IP65 GY
| Information | Value |
|---|---|
| Supplier | LEDVANCE Sp z o.o |
| Symbol | 4058075464049 |
| GTIN(EAN) | 4058075464049 |
| Price unit | piece |
| Catalog price | 630,74 zł (512,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

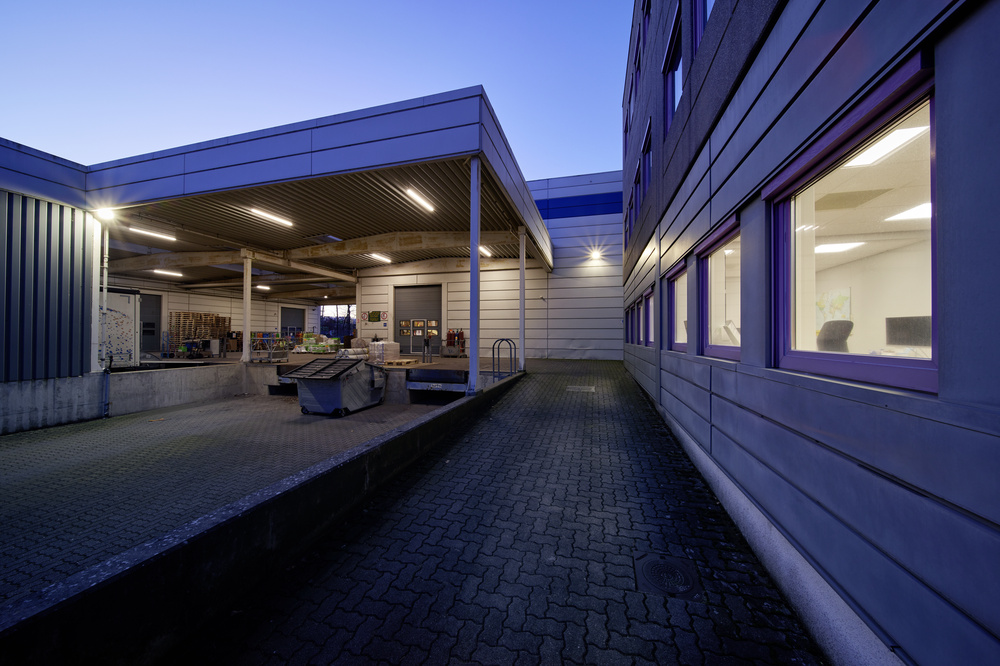

Odporne na wilgoć oprawy oświetleniowe, o klasycznym kształcie. Cechy produktu: Wysoka skuteczność świetlna: do 140 lm / W. Stopień ochrony: IP65. Kąt wiązki światła: 120°. Zasilanie (L, N, E). Obudowa z poliwęglanu. Zalety produktu: Równomierne rozproszenie światła. Aż do 50 % oszczędności energii (w porównaniu z oprawami świetlówkowymi). Łatwa instalacja, podłączenie nie wymaga zastosowania narzędzi. 5-letnia gwarancja. Obszary zastosowań: Idealne do pomieszczeń przemysłowych i magazynowych. Parkingi i przejścia podziemne. Garaże. Warsztaty, linie montażowe. Wyposażenie / Akcesoria: W zestawie znajduje się zestaw montażowy do instalacji na ścianie i suficie.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,79 kg |
| Country of origin | Chiny |
| ETIM class: | Ceiling-/wall luminaire |
| Suitable for suspended mounting: | no |
| Suitable for ceiling mounting: | yes |
| Suitable for built-in mounting: | no |
| Suitable for surface mounting: | yes |
| Suitable for light line configuration: | no |
| Suitable for workplace according to EN 12464-1: | no |
| Lamp type: | LED not exchangeable |
| With light source: | yes |
| Suitable for number of light sources: | 0 |
| Housing material: | Plastic |
| Surface protection housing: | Untreated |
| Housing colour: | Grey |
| Material cover: | Plastic, opal |
| Type of grid: | Matt |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Type of control gear: | Electronic ballast |
| With control gear: | yes |
| Exchangeable control gear: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI-2: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer's proprietary system: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase cut-off: | no |
| Dimming phase cut-on: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push-button: | no |
| No dim function: | yes |
| Light distributor: | Diffuser lens/optic/panel |
| Light outlet: | Direct |
| Rated life time L70/B50 at 25 °C: | 50000 h |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 25 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 32 |
| Degree of protection (IP): | IP65 |
| Impact strength: | IK08 |
| Protection class: | II |
| Rated ambient temperature according to IEC 62722-2-1: | -20 - +40 °C |
| Suitable for emergency lighting: | no |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| With air slots: | no |
| Max. system power: | 66.00 W |
| Luminaire efficacy: | 136 lm/W |
| Rated luminous flux according to IEC 62722-2-1: | 9000 lm |
| Colour temperature: | 6500 - 6500 K |
| Colour rendering index CRI: | 80-89 |
| Power factor: | 0.90 |

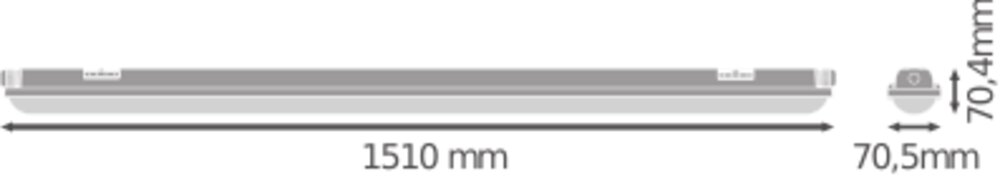

| Width: | 70.50 mm |
| Height/depth: | 70.40 mm |
| Length: | 1510.00 mm |
| Type of wiring: | Suitable for through wiring |
| Number of poles: | 3 |
| Connection type: | Push-in clamp |
| Total harmonic distortion: | 20 |
| Photobiological safety according to EN 62471: | RG1 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
| Operation by Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Suitable for wall mounting: | yes |
