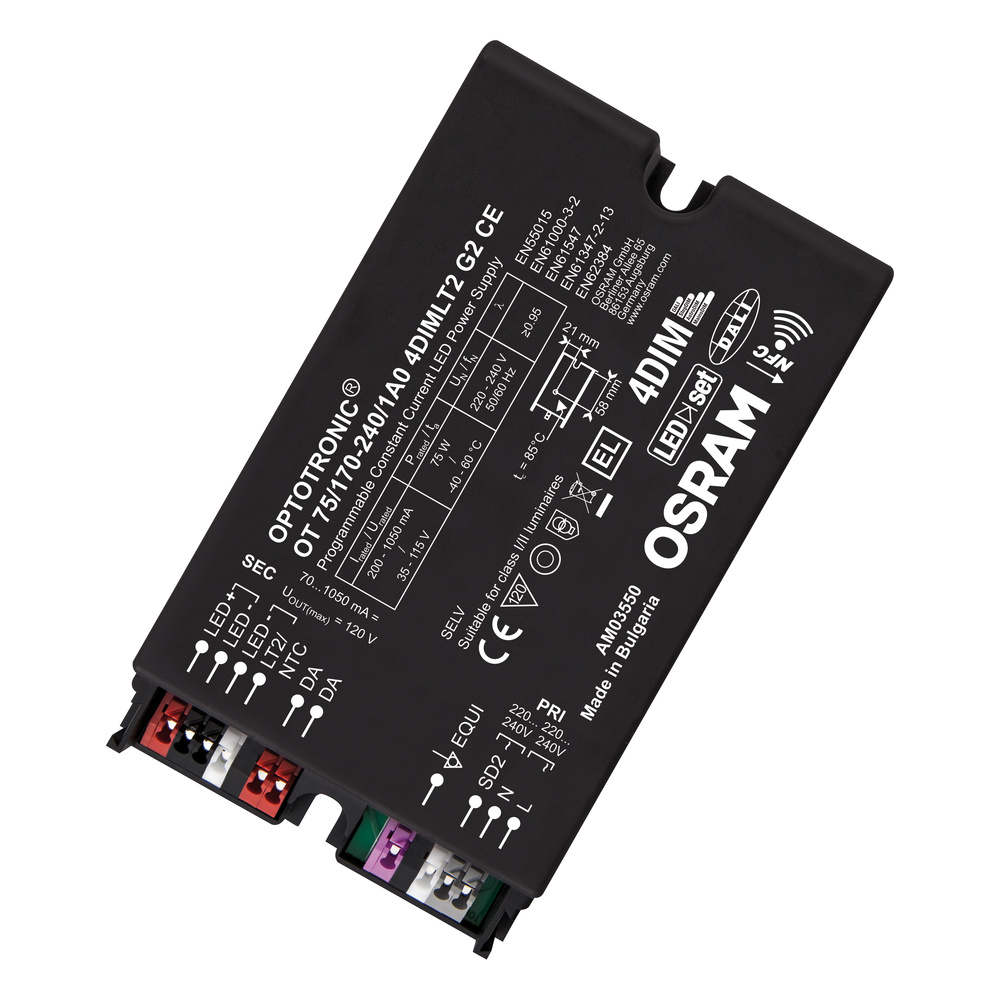

Zasilacz OT 75/170-240/1A0 4DIM NFC E
| Information | Value |
|---|---|
| Supplier | LEDVANCE Sp z o.o |
| Symbol | 4052899981942 |
| GTIN(EAN) | 4052899981942 |
| Price unit | piece |
| Catalog price | 473,55 zł (385,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Prąd stały – na zewnątrz – z regulacją. Cechy produktu: <li>Supply voltage: 220…240 V</li><li>Current output range: 70…1,050 mA</li><li>Easy and fast wireless luminaire programming via NFC</li><li>Flexible current setting with one additional wire (LEDset2)</li><li>AstroDIM for autonomous dimming with five independent levels (astro, time mode)</li><li>Allows for energy saving in twilight phases</li><li>MainsDIM function for dimming via reduction of line voltage amplitude</li><li>Isolated DALI interface for bidirectional telemanagement systems</li><li>Standby power consumption: < 0.35 W</li><li>Constant Lumen Output (CLO)</li><li>Overtemperature protection via external NTC</li><li>Integrated customizable thermal management (Driver Guard)</li>. Zalety produktu: <li>4DIM functionality in one device (StepDIM, AstroDIM, MainsDIM, DALI)</li><li>DALI-2 certified incl. Parts 251, 252, 253</li><li>Easy and fast wireless luminaire programming</li><li>Very high efficiency</li><li>Wide current output range: 200 mA…1050 mA</li><li>High surge protection: up to 10 kV (in protection class I or II)</li><li>Great flexibility due to wide operating temperature range of -40…55 °C or 60 °C</li><li>Protection through double isolation between mains input and LED output</li>. Obszary zastosowań: <li>Street and urban lighting</li><li>Industry</li><li>Suitable for outdoor applications in luminaires with IP > 54</li><li>Suitable for use in outdoor luminaires of protection class I and II</li>.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 300 g |
| Country of origin | Chiny |
| ETIM class: | LED driver |
| Model: | Dynamic |
| Suitable for outdoor use: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DSI: | no |
| Dimming DMX: | no |
| Dimming potentiometer (integrated): | no |
| Dimming LineSwitch: | yes |
| Dimming manufacturer's proprietary system: | no |
| Dimming mains voltage modulation: | yes |
| Dimming phase cut-off: | no |
| Dimming phase cut-on: | no |
| Dimming programmable: | yes |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | yes |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push-button: | no |
| Constant light output (CLO): | yes |
| No dim function: | no |
| Housing: | Plastic housing |
| Suitable for constant current: | yes |
| Suitable for constant voltage: | no |
| Suitable for DC-voltage (primary side): | yes |
| Degree of protection (IP): | IP20 |
| Protection class: | I |

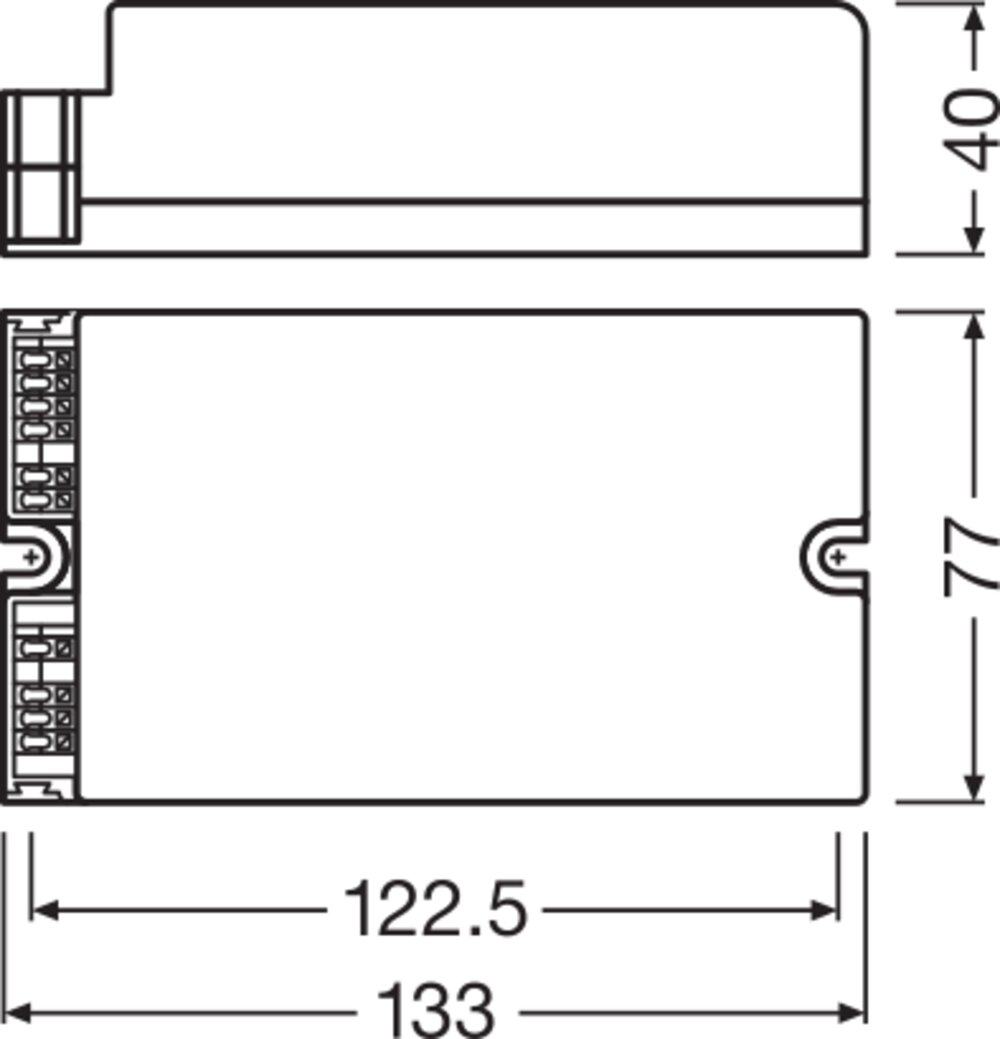

| Length: | 133.00 mm |
| Width: | 77.00 mm |
| Height: | 40.00 mm |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Operation by Bluetooth: | no |
