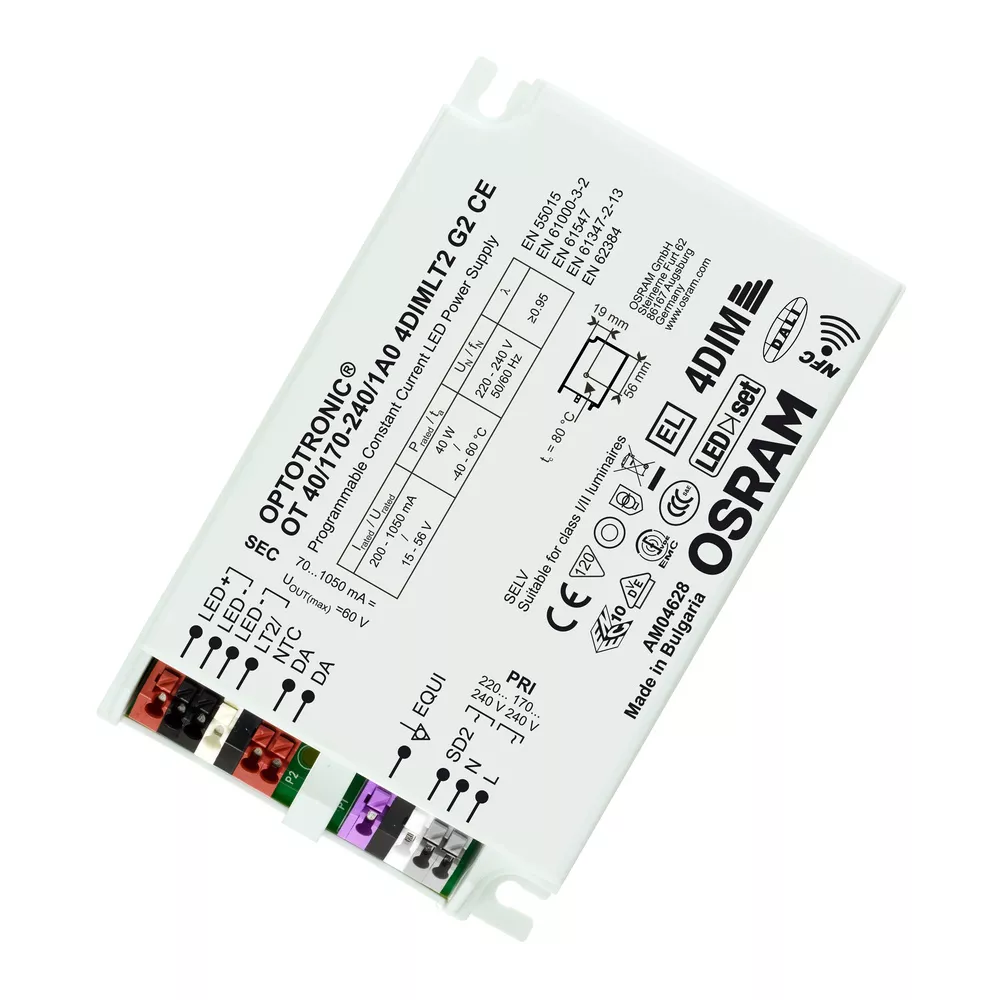

Zasilacz OT 40/170-240/1A0 4DIM NFC E
Information | Value |
---|---|
Supplier | LEDVANCE Sp z o.o |
Symbol | 4052899981935 |
GTIN(EAN) | 4052899981935 |
Price unit | piece |
Catalog price | 420,66 zł (342,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Prąd stały – na zewnątrz – z regulacją. Cechy produktu: <li>Supply voltage: 220…240 V</li><li>Current output range: 70…1,050 mA</li><li>Easy and fast wireless luminaire programming via NFC</li><li>Flexible current setting with one additional wire (LEDset2)</li><li>AstroDIM for autonomous dimming with five independent levels (astro, time mode)</li><li>Allows for energy saving in twilight phases</li><li>MainsDIM function for dimming via reduction of line voltage amplitude</li><li>Isolated DALI interface for bidirectional telemanagement systems</li><li>Standby power consumption: < 0.35 W</li><li>Constant Lumen Output (CLO)</li><li>Overtemperature protection via external NTC</li><li>Integrated customizable thermal management (Driver Guard)</li>. Zalety produktu: <li>4DIM functionality in one device (StepDIM, AstroDIM, MainsDIM, DALI)</li><li>DALI-2 certified incl. Parts 251, 252, 253</li><li>Easy and fast wireless luminaire programming</li><li>Very high efficiency</li><li>Wide current output range: 200 mA…1050 mA</li><li>High surge protection: up to 10 kV (in protection class I or II)</li><li>Great flexibility due to wide operating temperature range of -40…55 °C or 60 °C</li><li>Protection through double isolation between mains input and LED output</li>. Obszary zastosowań: <li>Street and urban lighting</li><li>Industry</li><li>Suitable for outdoor applications in luminaires with IP > 54</li><li>Suitable for use in outdoor luminaires of protection class I and II</li>.
Additional features:
Information | Value |
---|---|
Net weight: | 210 g |
ETIM class: | LED driver |
Model: | Dynamic |
Suitable for outdoor use: | yes |
Dimming 0-10 V: | no |
Dimming 1-10 V: | no |
Dimming DALI: | no |
Dimming DSI: | no |
Dimming DMX: | no |
Dimming potentiometer (integrated): | no |
Dimming LineSwitch: | yes |
Dimming manufacturer's proprietary system: | no |
Dimming mains voltage modulation: | yes |
Dimming phase cut-off: | no |
Dimming phase cut-on: | no |
Dimming programmable: | yes |
Dimming RF: | no |
Dimming Sine Wave Reduction: | yes |
Dimming Touch and Dim: | no |
Dimming Zigbee: | no |
Dimming with push-button: | no |
Constant light output (CLO): | yes |
No dim function: | no |
Housing: | Plastic housing |
Suitable for constant current: | yes |
Suitable for constant voltage: | no |
Suitable for DC-voltage (primary side): | yes |
Degree of protection (IP): | IP20 |
Protection class: | I |

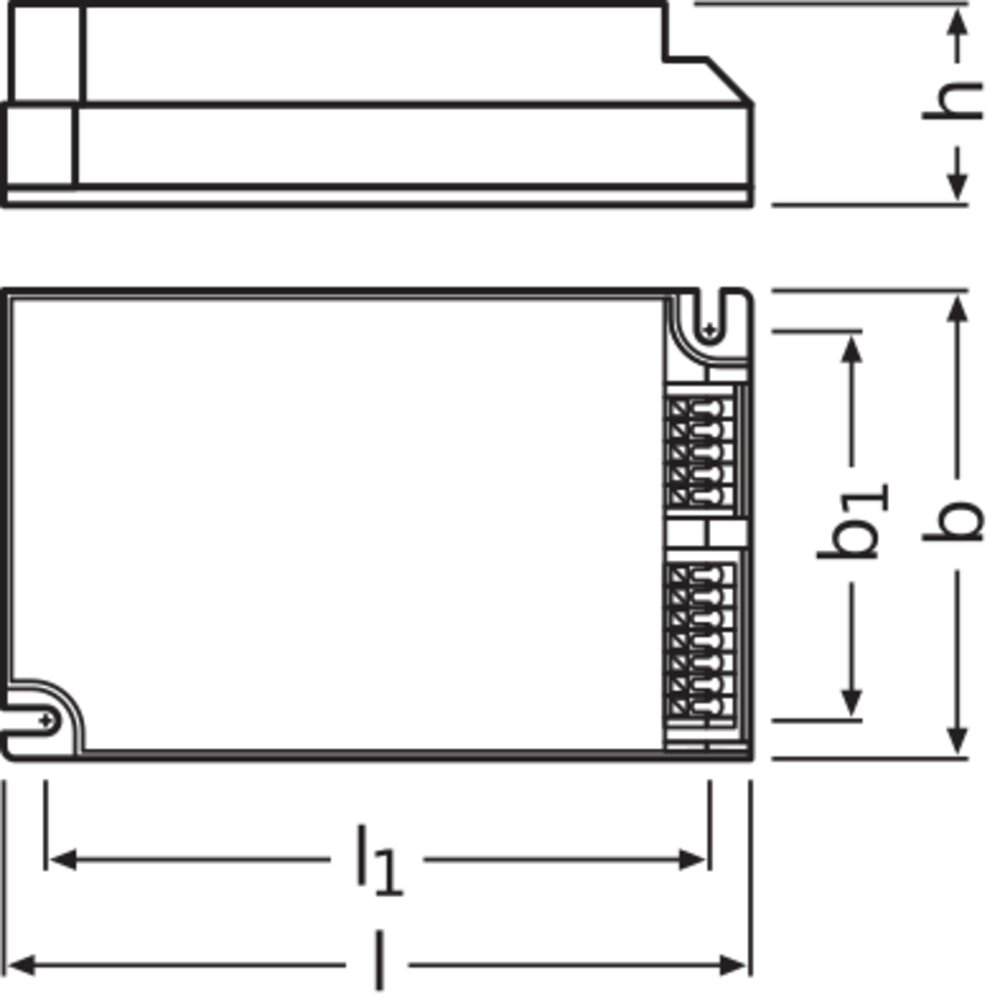

Length: | 123.00 mm |
Width: | 79.00 mm |
Height: | 33.00 mm |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | yes |
Operation by Bluetooth: | no |
