Moduł PANEL-CN50-COB-1400-840-24D-G2 FS1 OSRAM
| Information | Value |
|---|---|
| Supplier | LEDVANCE Sp z o.o |
| Symbol | 4052899621251 |
| GTIN(EAN) | 4052899621251 |
| Price unit | piece |
| Catalog price | 141,45 zł (115,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Moduł LED z wbudowanym układem optycznym i radiatorem. Cechy produktu: <li>Color consistency < 2 SDCM</li><li>TM30 compliant</li><li>High flux output up to 1500 lm</li><li>Beam angle: 24°, 36°</li><li>Type of protection: IP20</li>. Zalety produktu: <li>Compatible with conventional MR16 lamps</li><li>Precise optical control and free from multi-shadow issue</li><li>Replaceable front cover to maximize optics flexibility and future extension</li><li>Dual mode options in High-Output (HO) and High-Efficacy (HE)</li>. Obszary zastosowań: <li>Retail, shop, restaurant, hospitality</li><li>High-end residential</li><li>Suitable for indoor applications</li><li>Connecting multiple modules in parallel on one LED driver is not permitted</li><li>Connecting multiple modules in series on one LED driver is not recommended</li><li>Do not use in sealed fixtures</li><li>Avoid covering the lens with dust or any object</li>.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 90 g |
| Country of origin | Chiny |
| ETIM class: | LED-module |
| Lamp power: | 12,8 - 12,8 W |
| Voltage type: | DC |
| Suitable for constant current: | yes |
| Suitable for constant voltage: | no |
| External driver required: | yes |
| Lamp voltage: | 36,5 - 36,5 V |
| Number of LEDs: | 1 |
| Shape: | Round |
| Colour: | White |
| Colour of light according to EN 12464-1: | Neutral white 3300-5300 K |
| Flexible: | no |
| Colour temperature: | 3 900 K |
| Luminous intensity: | 4 350 cd |
| Luminous flux: | 1 250 - 1 250 lm |
| Beam angle: | 24 - 24 ° |
| Colour consistency (McAdam ellipse): | SDCM2 |
| Suitable for general lighting: | yes |
| Suitable for traffic lights: | no |
| Suitable for variable road signs: | no |
| Suitable for rail traffic: | no |
| Suitable for matrix information boards: | no |

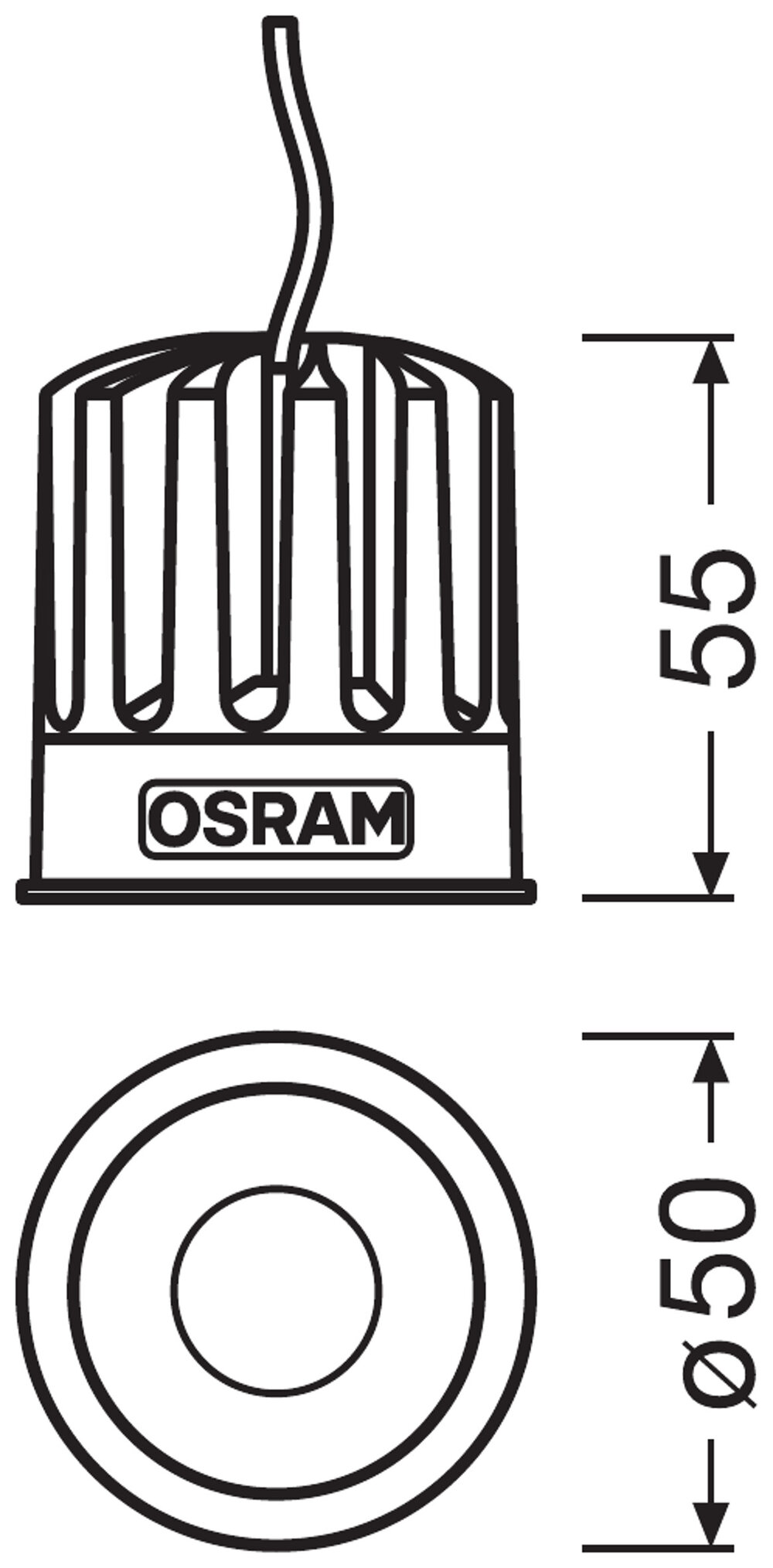

| Length: | 50 mm |
| Width: | 50 mm |
| Height: | 55 mm |
| Diameter: | 50 mm |
| Degree of protection (IP): | IP20 |
| Average nominal lifespan: | 50 000 h |
| Photobiological safety according to EN 62471: | RG1 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Energy efficiency class according to EU regulation 2019/2015: | F |
