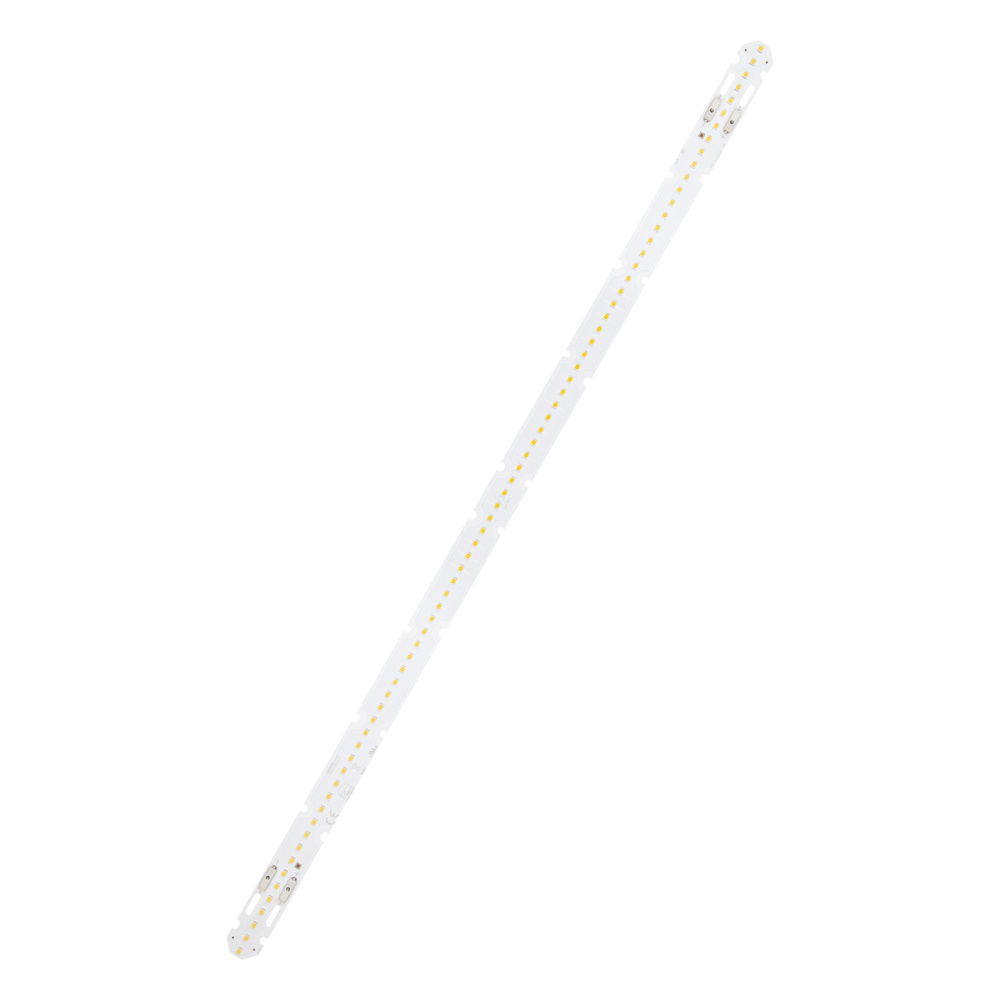

Moduł PrevaLED PL-LIN-Z6 2200-840 560x20-LV
| Information | Value |
|---|---|
| Supplier | LEDVANCE Sp z o.o |
| Symbol | 4052899606180 |
| GTIN(EAN) | 4052899606180 |
| Price unit | piece |
| Catalog price | 129,14 zł (104,99 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Liniowe systemy oświetleniowe. Cechy produktu: <li>Module efficacy: up to 206 lm/W</li><li>Available with luminous flux: 245 lm on 62 mm, 275 lm on 70 mm</li><li>Available with luminous flux: 550 lm on 140 mm</li><li>Available with luminous flux: 1,100 lm or 2,000 lm on 280 mm</li><li>Available with luminous flux: 2,200 lm or 4,000 lm on 560 mm</li><li>Available with color temperature: 2,700K, 3,000 K, 4,000 K, 5,000 K or 6,500 K</li><li>High initial color consistency: ≤ 3 SDCM</li><li>Average lifetime (L80 B50): > 70,000 h (temperature at T<sub>c</sub> = 50 °C)</li><li>CE marked, ENEC certified; UL listed</li>. Zalety produktu: <li>Slim luminaire design by small and flexible form factor</li><li>High homogeneity thanks to small LED pitch</li><li>High voltage (HV) optimized for non-isolated, low voltage (LV) optimized for SELV operation</li><li>Adjustable luminous flux, efficacy and lifetime</li><li>Direct the light where it’s needed while using PrevaLED Linear Optics</li>. Obszary zastosowań: <li>Office</li><li>Industry</li>.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 40 g |
| Country of origin | Chiny |
| ETIM class: | LED-module |
| Lamp power: | 11.80 - 11.80 W |
| Voltage type: | DC |
| External driver required: | yes |
| Lamp voltage: | 23.6 - 23.6 V |
| Number of LEDs: | 72 |
| Shape: | Rectangular |
| Colour of light according to EN 12464-1: | Neutral white 3300-5300 K |
| Flexible: | no |
| Colour temperature: | 4000 K |
| Luminous intensity: | 735 cd |
| Luminous flux: | 2267 - 2267 lm |
| Beam angle: | 120.00 - 120.00 ° |
| Colour consistency (McAdam ellipse): | SDCM3 |
| Suitable for general lighting: | yes |
| Suitable for traffic lights: | no |
| Suitable for variable road signs: | no |
| Suitable for rail traffic: | no |
| Suitable for matrix information boards: | no |

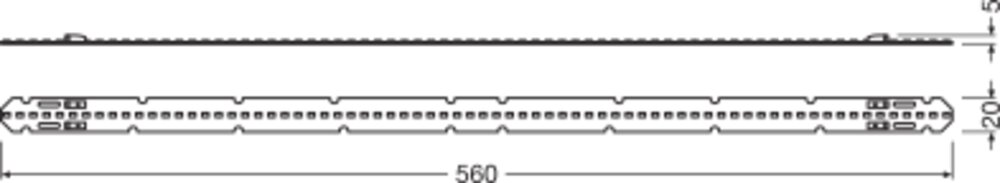

| Length: | 560.00 mm |
| Width: | 20.00 mm |
| Height: | 5.00 mm |
| Degree of protection (IP): | IP20 |
| Average nominal lifespan: | 50000 h |
| Photobiological safety according to EN 62471: | RG1 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Energy efficiency class according to EU regulation 2019/2015: | C |
