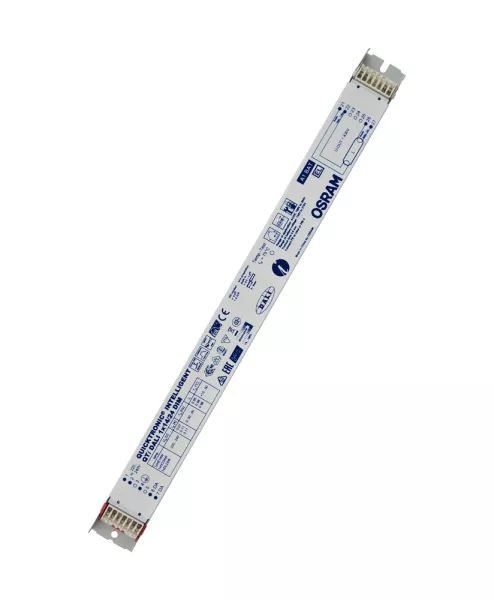

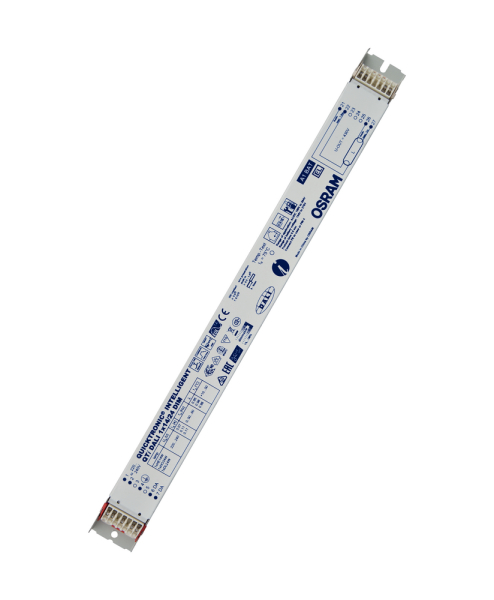

QTi DALI 1x14/24/220-240 DIM OSPRZĘT DO ŚWIETLÓWEK

• buy at the outlet / on sale
• Buy / order

Information	Value
Supplier	LEDVANCE Sp z o.o
Symbol	4050300870380
GTIN(EAN)	4050300870380
Price unit	piece
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock

Additional features:

Information	Value
ETIM class:	Ballast
Model:	Electronic
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DSI:	no
Dimming DMX:	no
Dimming potentiometer (integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer's proprietary system:	no
Dimming mains voltage modulation:	no
Dimming phase cut-off:	no
Dimming phase cut-on:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push-button:	no
No dim function:	no
For lamp type T7:	yes
For lamp type T16:	yes
For lamp type T-U:	yes
For lamp type TC-D:	yes
For lamp type TC-DD:	yes
For lamp type TC-DEL:	yes
For lamp type TC-L:	yes
For lamp type TC-S:	yes
For lamp type TC-SEL:	yes
For lamp type TC-T:	yes
For lamp type TC-TEL:	yes
Suitable for lamp power (1 lamp):	14 - 24 W
Nominal voltage:	220 - 240 V
Housing:	Metal housing
Degree of protection (IP):	IP20
Protection class:	I
Length:	360.0 mm
Width:	30.0 mm
Height:	21.0 mm

Additional information:

Information	Value
Updated:	2023-02-03 03:01:43

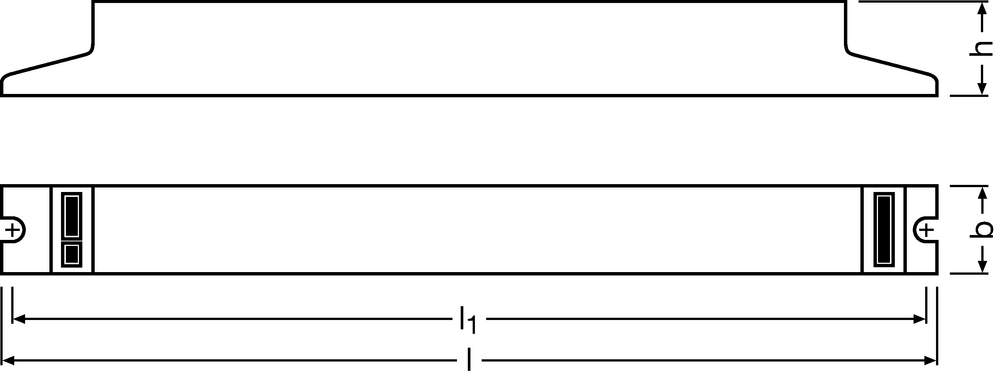

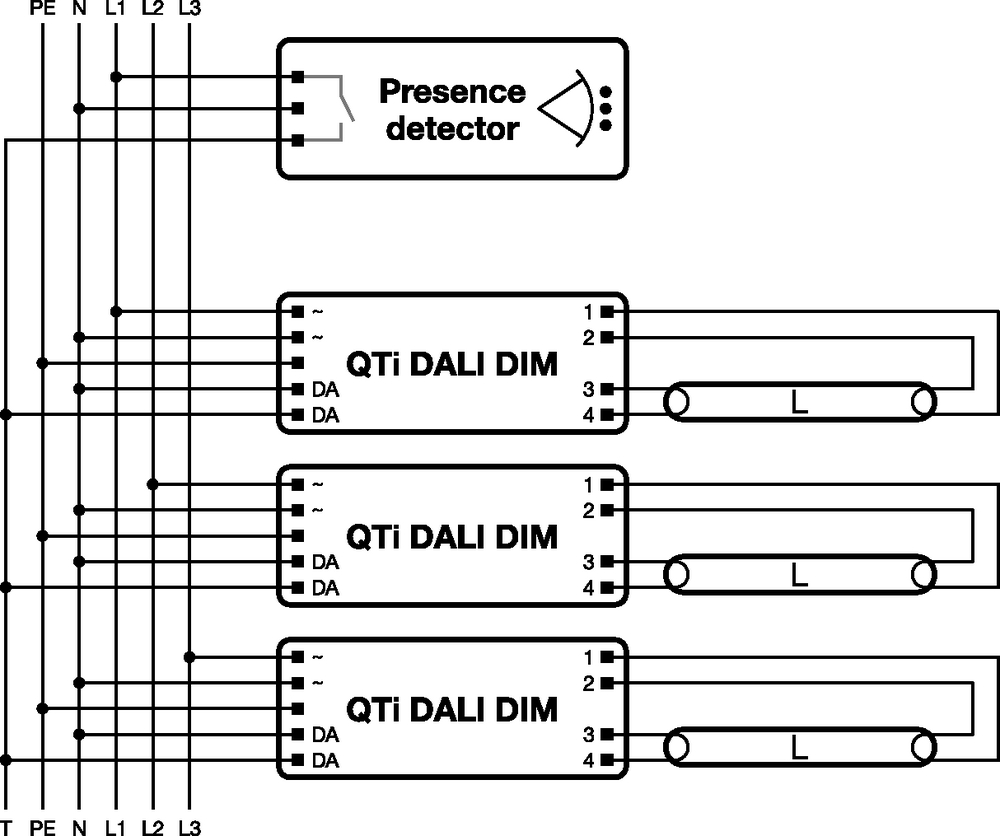

Files to download:	asset-277183.jpg (30,63 KB) (, Rysunek wymiarowy) asset-399047.jpg (131,6 KB) (, Schemat połączeń)
External links:	Głęboki link do str. produktu Głęboki link dot. REACH Karta produktu
