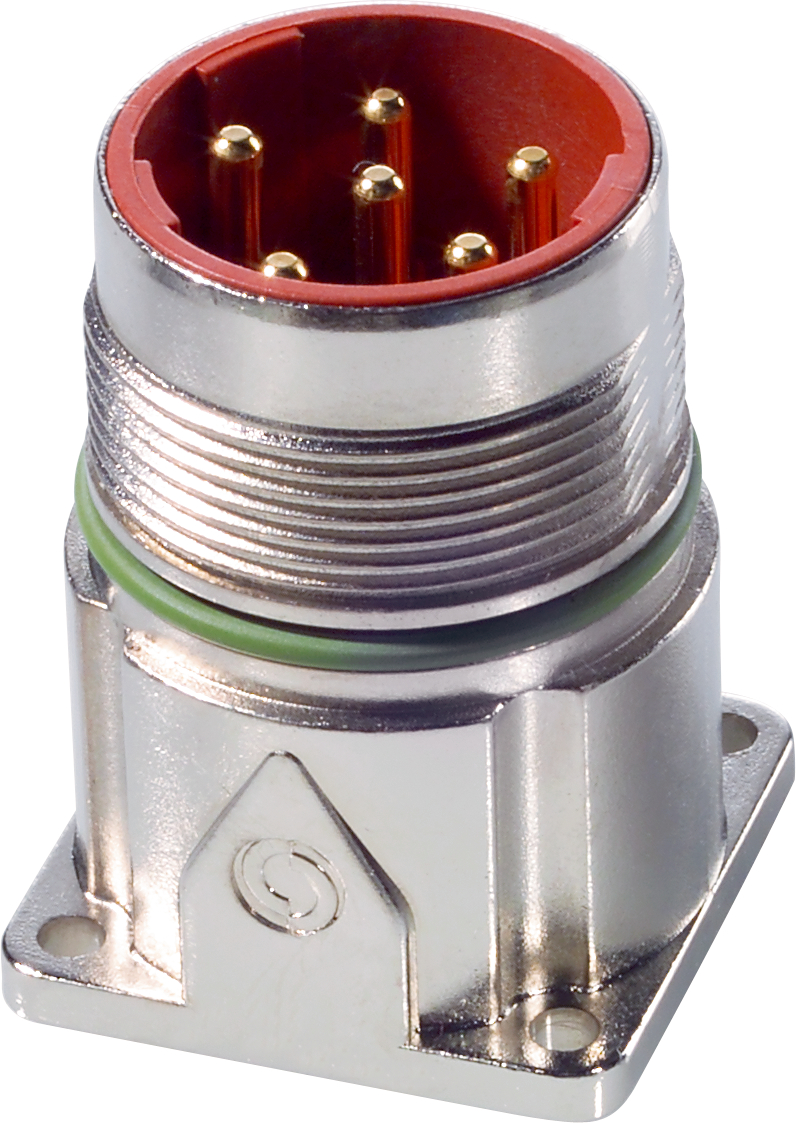

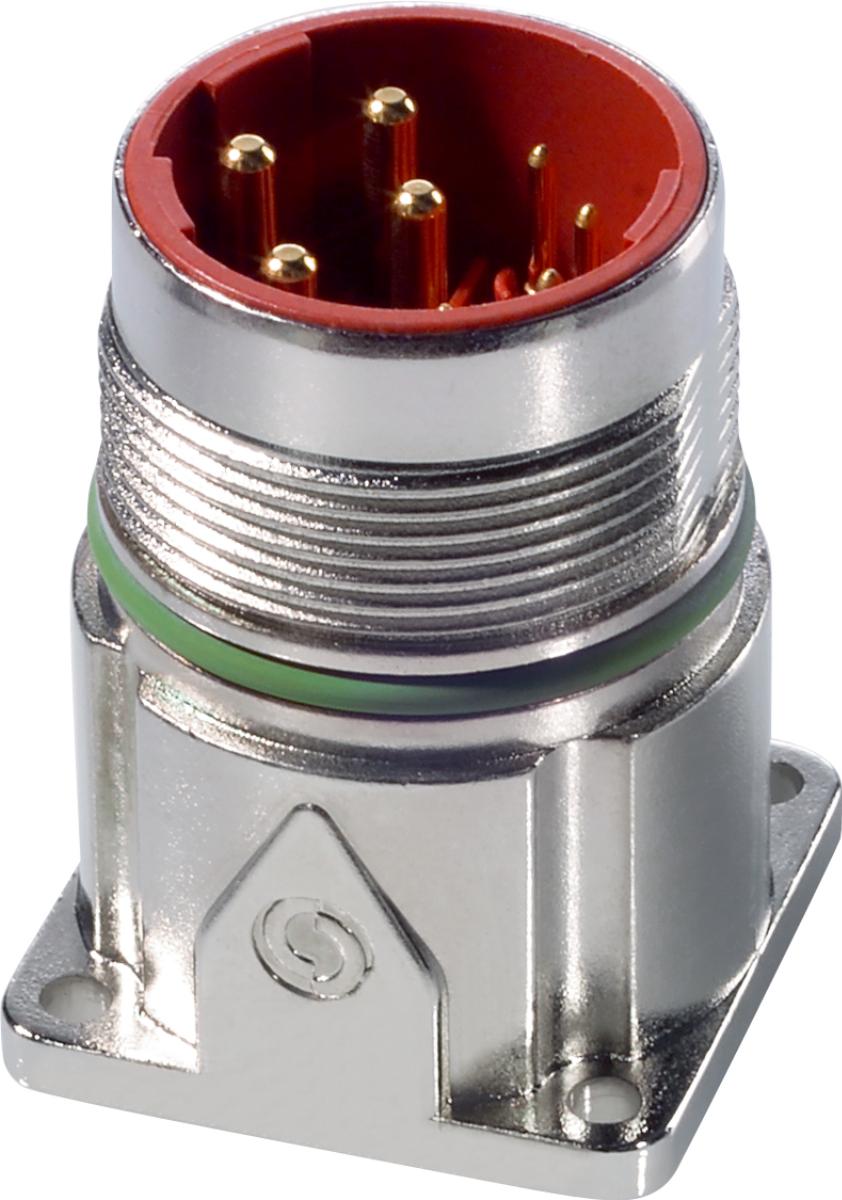

EPIC POWER LS1 A1 5+PE K (5) Złącza
| Information | Value |
|---|---|
| Supplier | Lapp Kabel Sp. z o.o. |
| Symbol | 76003000 |
| GTIN(EAN) | 4044773534627 |
| Price unit | piece |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Circular connector for field assembly (industrial connector) |
| Rated voltage: | 630 V |
| Housing material: | Zinc |
| Pollution degree: | 3 |
| Degree of protection (IP), mounted: | IP68 |
| With protective conductor: | yes |
| Contact type: | Pin |
| Type of electric connection: | Crimp connection |
| Material of contact surface: | Gold |
| Rated current In: | 26 A |
| Ambient temperature: | -25 - 125 °C |
| Type of locking: | Gland nut |
| Thread size M: | 23 mm |
| Type of housing: | Straight |
| Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 0.5 - 2.5 mm² |
