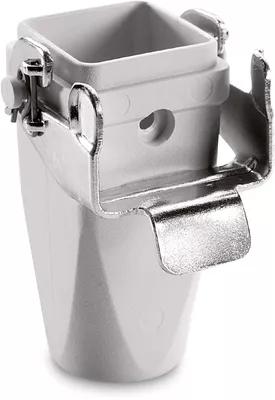

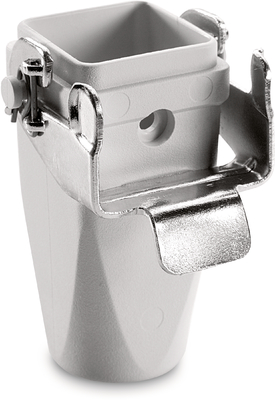

EPIC KIT H-A 4 BS TGVB M20
| Information | Value |
|---|---|
| Supplier | Lapp Kabel Sp. z o.o. |
| Symbol | 75009623 |
| GTIN(EAN) | 4044774420455 |
| Price unit | piece |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Rectangular connector, set (industrial connector) |
| Width: | 23.8 mm |
| Operating temperature: | -40 - 125 °C |
| Height: | 53.5 mm |
| Rated voltage: | 400 V |
| Housing material: | Plastic |
| Pollution degree: | 3 |
| Degree of protection (IP), mounted: | IP65 |
| With protective conductor: | yes |
| Contact type: | Bus |
| Type of electric connection: | Screw connection |
| Material of contact surface: | Silver |
| Material insulation body: | Thermoplastic |
| Rated current In: | 23 A |
| Ambient temperature: | -40 - 125 °C |
| Type of locking: | Single locking lever |
| Coating housing: | Uncoated |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated surge voltage: | 4 kV |
| Over voltage category: | III |
| Number of plug-in contact rows: | 2 |
| Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 0.5 - 2.5 mm² |
| Material contact: | Brass |
