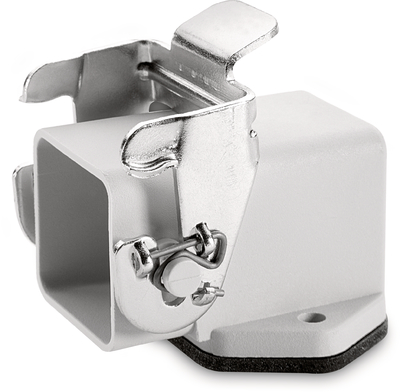

EPIC KIT H-A 4 BS AGS
Information | Value |
---|---|
Supplier | Lapp Kabel Sp. z o.o. |
Symbol | 75009619 |
GTIN(EAN) | 4044774421667 |
Price unit | piece |
Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Rectangular connector, set (industrial connector) |
Width: | 22.3 mm |
Operating temperature: | -40 - 125 °C |
Height: | 40.5 mm |
Rated voltage: | 400 V |
Housing material: | Plastic |
Pollution degree: | 3 |
Degree of protection (IP), mounted: | IP65 |
With protective conductor: | yes |
Contact type: | Bus |
Type of electric connection: | Screw connection |
Material of contact surface: | Silver |
Material insulation body: | Thermoplastic |
Rated current In: | 23 A |
Ambient temperature: | -40 - 125 °C |
Type of locking: | Single locking lever |
Coating housing: | Uncoated |
Inflammability class of insulation material according to with UL94: | V0 |
Rated surge voltage: | 4 kV |
Over voltage category: | III |
Number of plug-in contact rows: | 2 |
Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 0.5 - 2.5 mm² |
Material contact: | Brass |
