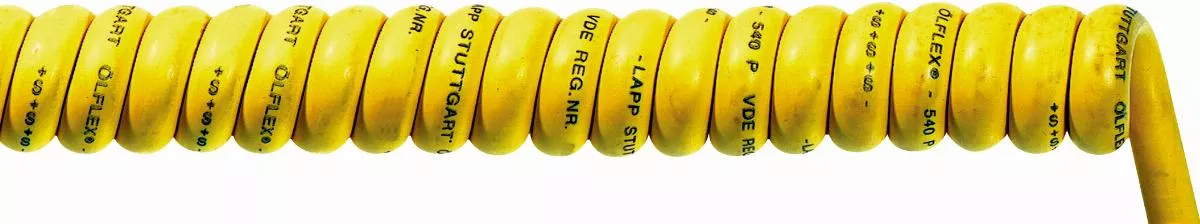

ÖLFLEX SPIRAL 540 P 4G0,75/1000; Przewód spiralny
| Information | Value |
|---|---|
| Supplier | Lapp Kabel Sp. z o.o. |
| Symbol | 71220117 |
| GTIN(EAN) | 4044773332155 |
| Price unit | piece |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Płaszcz zewnętrzny ze specjalnego poliuretanu, iIzolacja żył na bazie TPE. Odporna na ścieranie i uszkodzenia mechaniczne, na większość olejów, niskie temperatury,mikroby i hydrolizę, samogasnący. Napięcie pracy: 0,75-1,0 mm²: 300/500V od 1,5-10,0 mm²: 450/750V. Zakres temperatur: -30°C do +50°C. Klasa 5 giętkości żyły - VDE 0295 Kl.5; IEC 60228 Cl.5. Żyły: do 5 żył – kod kolorowy VDE 0293-308, od 6 żył - czarne żyły z białymi numerami.
Additional features:
| Information | Value |
|---|---|
| kolor: | żółty (RAL 1016) |
| ETIM class: | Spiralized cable |
| Nominal cross section conductor: | 0.75 mm² |
| Material core insulation: | Other |
| Core identification: | Colour |
| Flame retardant: | According to IEC/EN 60332-1-2 |
| Nominal voltage U: | 500 V |
| Colour outer sheath: | Yellow |
| Material outer sheath: | Polyurethane (PUR) |
| Conductor category: | Class 5 = flexible |
| Permitted cable outer temperature during assembling/handling: | -30 - 50 °C |
| Nominal voltage U0: | 300 V |
| Number of cores: | 4 |
| Outer diameter approx.: | 7.6 mm |
| Spiral length (retracted): | 1000 mm |
| Spiral length (extended): | 3500 mm |
