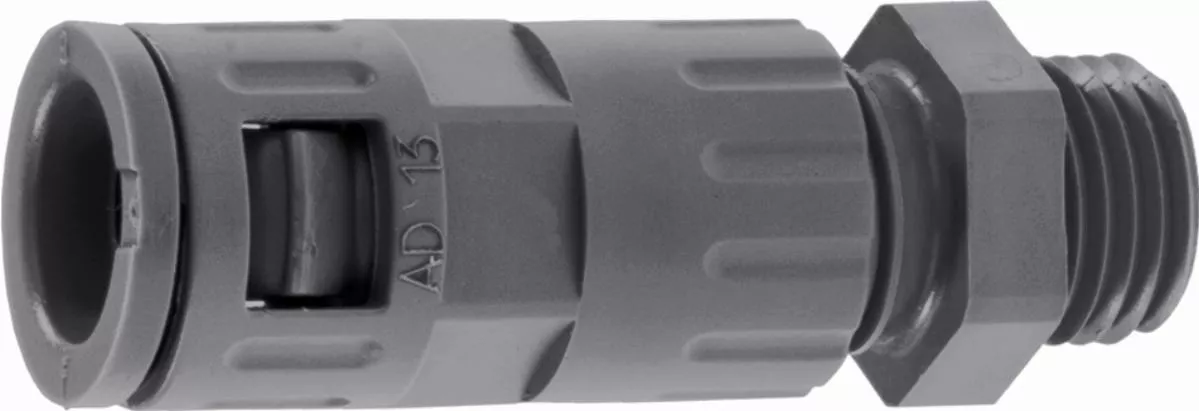

SILVYN KLICK-GPZ-M 63X1,5 GY Złączka
| Information | Value |
|---|---|
| Supplier | Lapp Kabel Sp. z o.o. |
| Symbol | 55500870 |
| GTIN(EAN) | 4044773267877 |
| Price unit | piece |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Złączka prosta do węży SILVYN® RILL. Gwint metryczny. Materiał: poliamid PA. Zakres temperatur: -30°C do + 100°C. Stopień ochrony IP68. Kolor szary. Złączki są dostępne także w kolorze czarnym (odporne na UV). Posiada dodatkowo zintegrowany wkład, który umożliwia jednoczesne zadławienie przewodu znajdującego się wewnątrz węża.
Additional features:
| Information | Value |
|---|---|
| kolor: | szary lub czarny (UV odporny) |
| ETIM class: | Screw connection for corrugated plastic hose |
| Model: | Straight |
| Thread type: | Metric |
| Colour: | Grey |
| Degree of protection (IP): | IP68 |
| Thread length: | 14.0 mm |
| Total length: | 145.0 mm |
| Type of connection: | Thread |
| Construction type: | External thread |
| Revolving thread: | no |
| Lowest inner diameter hose: | 48.0 mm |
| Approved in combination with protective conduit UR: | yes |
| Approved in combination with protective conduit CSA: | yes |
| Max. outer diameter hose: | 54.5 mm |
| Nominal diameter: | 54.5 mm |
| Nominal size in inch: | 1 1/2 inch |
| Thread connection size: | Other |
| Approved in combination with protective conduit according to DIN EN 61386-23: | yes |
