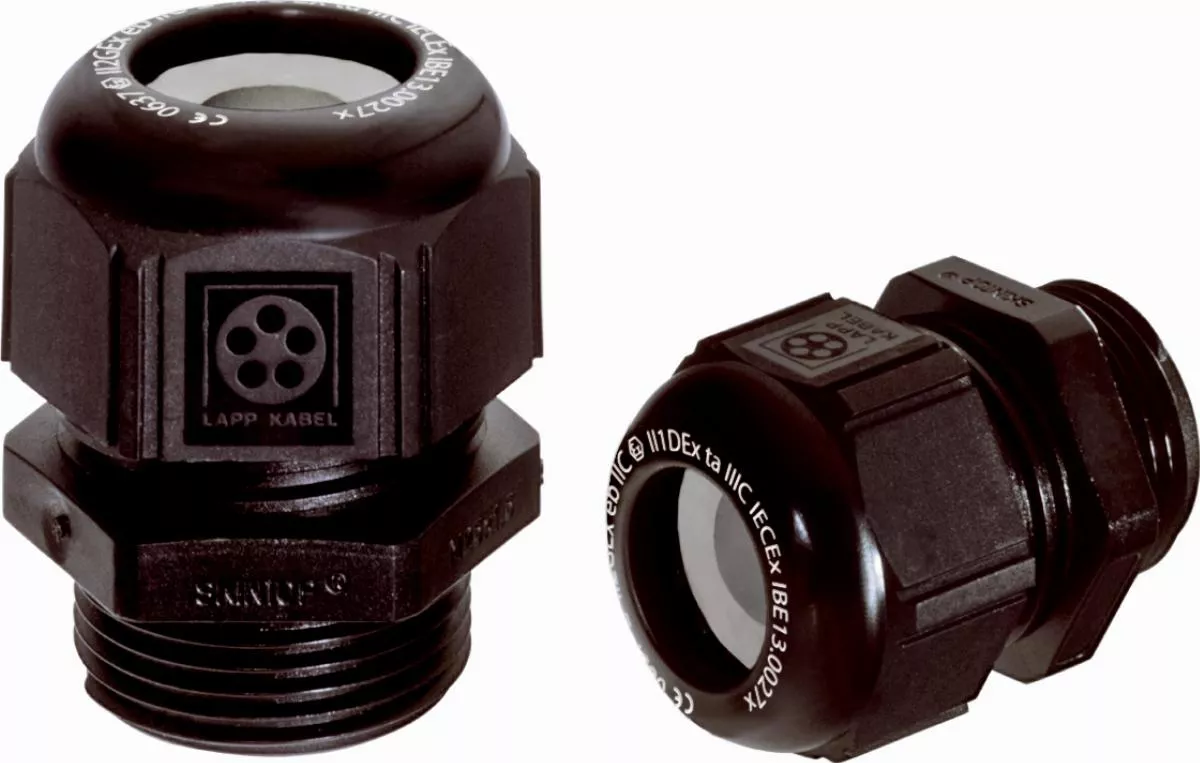

SKINTOP KR-M 25X1,5 ATEX plus BK Dławnica
| Information | Value |
|---|---|
| Supplier | Lapp Kabel Sp. z o.o. |
| Symbol | 54115235 |
| GTIN(EAN) | 4044773335637 |
| Price unit | piece |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Dopuszczenie do zastosowania w urządzeniach z grupy II/ Kategoria 2G+1D. Metryczny gwint przyłączeniowy wg EN 50262. Materiał: korpus: specjalny poliamid, uszczelnienie: specjalny elastomer, O-ring Viton. Wkładka redukcyjna zmniejszająca średnicę dławionych przewodów. Stopień ochrony IP 68- dla rozmiarów od 12x1,5 do 25x1,5; IP 64- dla rozmiarów od 32x1,5 do 63x1,5; IP 68- dla rozmiarów od 32x1,5 do 63x1,5 (dla dławnic z O-ringiem). Zakres temperatur: -20°C do + 80°C.
Additional features:
| Information | Value |
|---|---|
| kolor: | czarny (RAL 9005) |
| ETIM class: | Cable gland |
| Model: | Straight |
| Thread type: | Metric |
| Material: | Plastic |
| Material quality: | Polyamide (PA) |
| Glass-fibre reinforced: | yes |
| Shock resistant: | yes |
| Halogen free: | no |
| Colour: | Black |
| Operating temperature: | -20 - 80 °C |
| Degree of protection (IP): | IP68 |
| Bend radius protection/trumpet flare: | no |
| Nominal thread size metric/PG: | 25 |
| Pitch thread: | 1.5 mm |
| Explosion-tested version: | yes |
| Thread length: | 10 mm |
| Wrench width: | 30 mm |
| Suitable for cable diameter: | 6 - 13 mm |
| With locknut: | no |
| Surface protection: | Untreated |
| Screened: | no |
| RAL-number: | 9005 |
| For Ex-Zone dust: | 20, 21, 22 |
| For Ex-zone gas: | 1, 2 |
| Separable screw gland: | no |
| Type of sealing: | Sealing ring |
| With strain relief: | yes |
| Flat cable coupling: | no |
| Multi seal area: | no |
| EMC-version: | no |
| Snapping in opening: | no |
| For armoured cable: | no |
