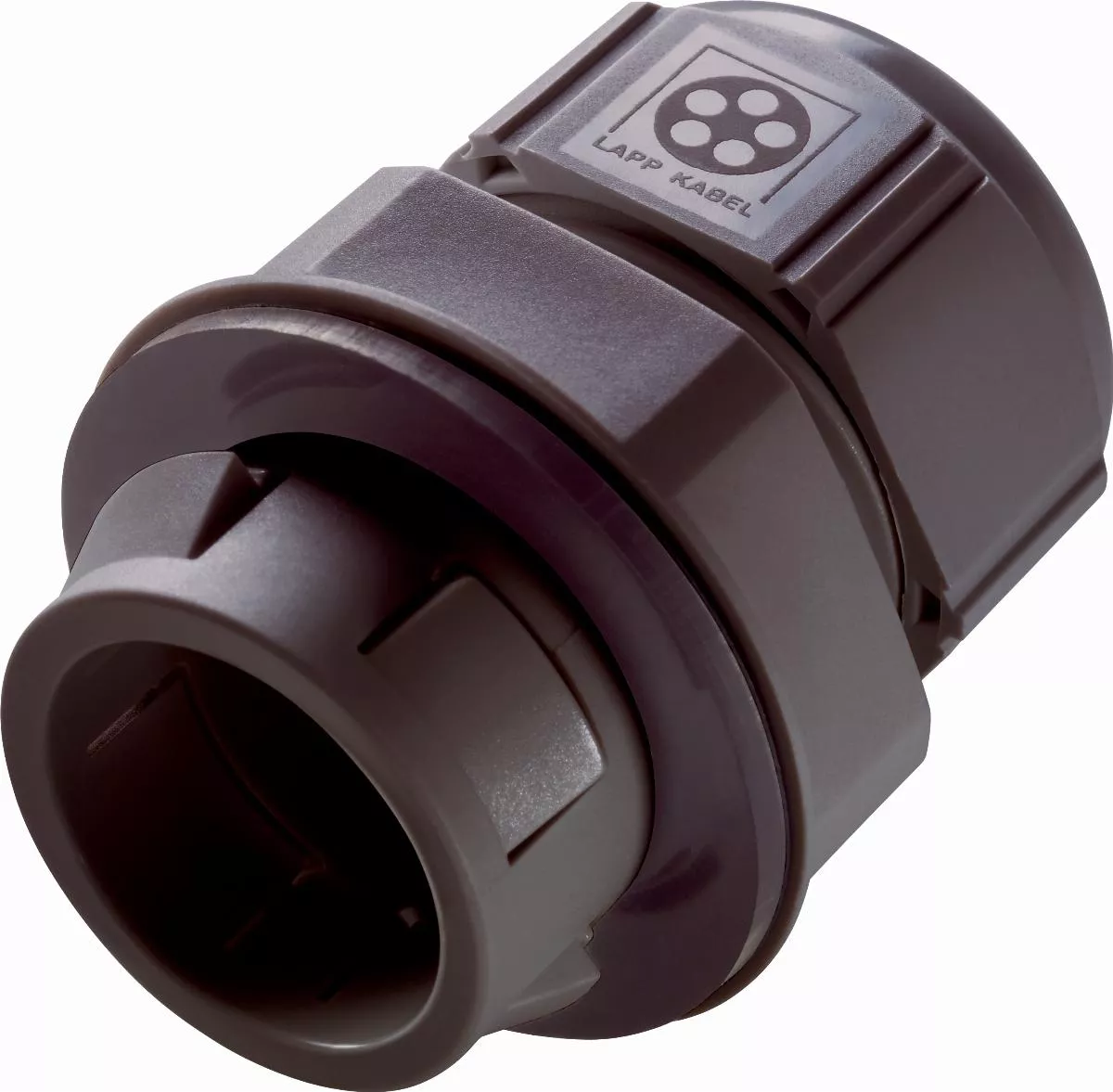

SKINTOP CLICK 32 RAL 9005 BK Dławnica
Information | Value |
---|---|
Supplier | Lapp Kabel Sp. z o.o. |
Symbol | 53112924 |
GTIN(EAN) | 4044774409061 |
Price unit | piece |
Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Złącze typu CLICK skraca czas montażu do 70%. Materiał: poliamid, uszczelnienie: specjalny elastomer. Normy: UL File Nr. E79903. Stopień ochrony IP 68 - 4 bar (M12), IP 68 - 5 bar (M16 - M32). Zakres temperatur: -20°C do + 100°C. Kolory: RAL 7001 srebrnoszary, RAL 7035 jasnoszary, RAL 9005 czarny odporny na UV.
Additional features:
Information | Value |
---|---|
kolor: | zgodny z opisem produktu |
ETIM class: | Cable gland |
Model: | Straight |
Thread type: | None |
Material: | Plastic |
Material quality: | Polyamide (PA) |
Glass-fibre reinforced: | no |
Shock resistant: | no |
Halogen free: | no |
Colour: | Black |
Operating temperature: | -40 - 100 °C |
Degree of protection (IP): | IP68 |
Bend radius protection/trumpet flare: | no |
Nominal thread size metric/PG: | 32 |
Explosion-tested version: | no |
Thread length: | 8 mm |
Wrench width: | 36 mm |
Suitable for cable diameter: | 11 - 21 mm |
With locknut: | no |
Surface protection: | Untreated |
Screened: | no |
RAL-number: | 9005 |
Separable screw gland: | no |
Type of sealing: | Sealing ring |
With strain relief: | yes |
Flat cable coupling: | no |
Multi seal area: | no |
EMC-version: | no |
Snapping in opening: | yes |
For armoured cable: | no |
