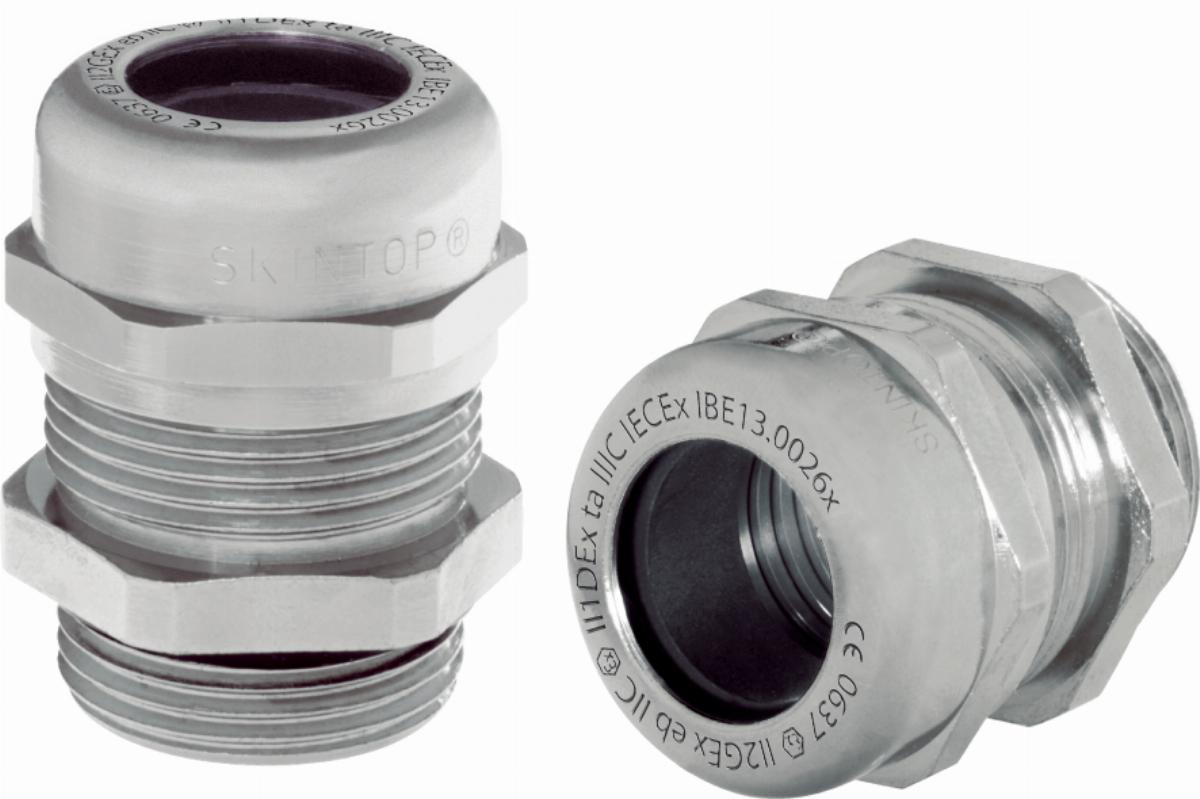

SKINTOP MS-M 32X1,5 ATEX Dławnica
| Information | Value |
|---|---|
| Supplier | Lapp Kabel Sp. z o.o. |
| Symbol | 53112740 |
| GTIN(EAN) | 4044773169980 |
| Price unit | piece |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Dopuszczenie do zastosowania w urządzeniach z grupy II/ Kategoria 2G+1D. Gwint: metryczny wg EN 50262. Materiał: korpus: mosiądz niklowany, wkład: poliamid, uszczelnienie: CR, o-ring: NBR. Testy: DIN EN 60079-0, DIN EN 60079-7. Stopień ochrony: IP 68 - 10 bar. Zakres temperatur: -30°C do +90°C. SKINTOP® MS-M- XL ATEX - wersja z dłuższym gwintem.
Additional features:
| Information | Value |
|---|---|
| kolor: | nikiel |
| ETIM class: | Cable gland |
| Model: | Straight |
| Thread type: | Metric |
| Material: | Metal |
| Material quality: | Brass |
| Glass-fibre reinforced: | no |
| Shock resistant: | yes |
| Halogen free: | no |
| Colour: | Other |
| Operating temperature: | -40 - 100 °C |
| Degree of protection (IP): | IP68 |
| Bend radius protection/trumpet flare: | no |
| Nominal thread size metric/PG: | 32 |
| Pitch thread: | 1.5 mm |
| Explosion-tested version: | yes |
| Thread length: | 9 mm |
| Wrench width: | 36 mm |
| Suitable for cable diameter: | 11 - 21 mm |
| With locknut: | no |
| Surface protection: | Nickel-plated |
| Screened: | no |
| For Ex-Zone dust: | 20, 21, 22 |
| For Ex-zone gas: | 1, 2 |
| Separable screw gland: | no |
| Type of sealing: | Sealing ring |
| With strain relief: | yes |
| Flat cable coupling: | no |
| Multi seal area: | no |
| EMC-version: | no |
| Snapping in opening: | no |
| For armoured cable: | no |
