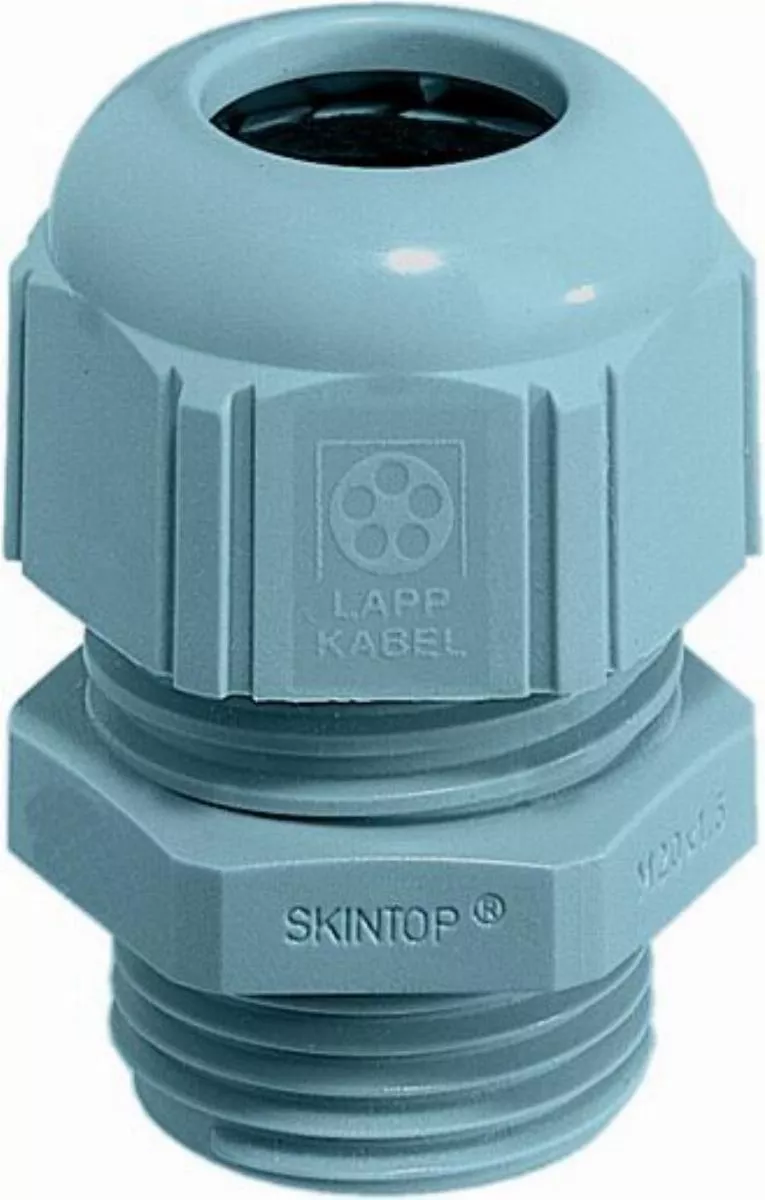

SKINTOP ST ISO M 20x1,5 RAL 7001 SGY
| Information | Value |
|---|---|
| Supplier | Lapp Kabel Sp. z o.o. |
| Symbol | 53017030 |
| GTIN(EAN) | 4044773158991 |
| Price unit | piece |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Cable gland |
| Model: | Straight |
| Thread type: | Metric |
| Material: | Plastic |
| Material quality: | Polyamide (PA) |
| Glass-fibre reinforced: | no |
| Shock resistant: | no |
| Halogen free: | no |
| Colour: | |
| Operating temperature: | -40 - 80 °C |
| Degree of protection (IP): | IP68 |
| Bend radius protection/trumpet flare: | no |
| Nominal thread size metric/PG: | 20 |
| Pitch thread: | 1.5 mm |
| Explosion-tested version: | no |
| Thread length: | 13 mm |
| Wrench width: | 24 mm |
| Suitable for cable diameter: | 5 - 12 mm |
| With locknut: | no |
| Surface protection: | Untreated |
| Screened: | no |
| RAL-number: | 7001 |
| Separable screw gland: | no |
| Type of sealing: | Sealing ring |
| With strain relief: | yes |
| Flat cable coupling: | no |
| Multi seal area: | no |
| EMC-version: | no |
| Snapping in opening: | no |
| For armoured cable: | no |
