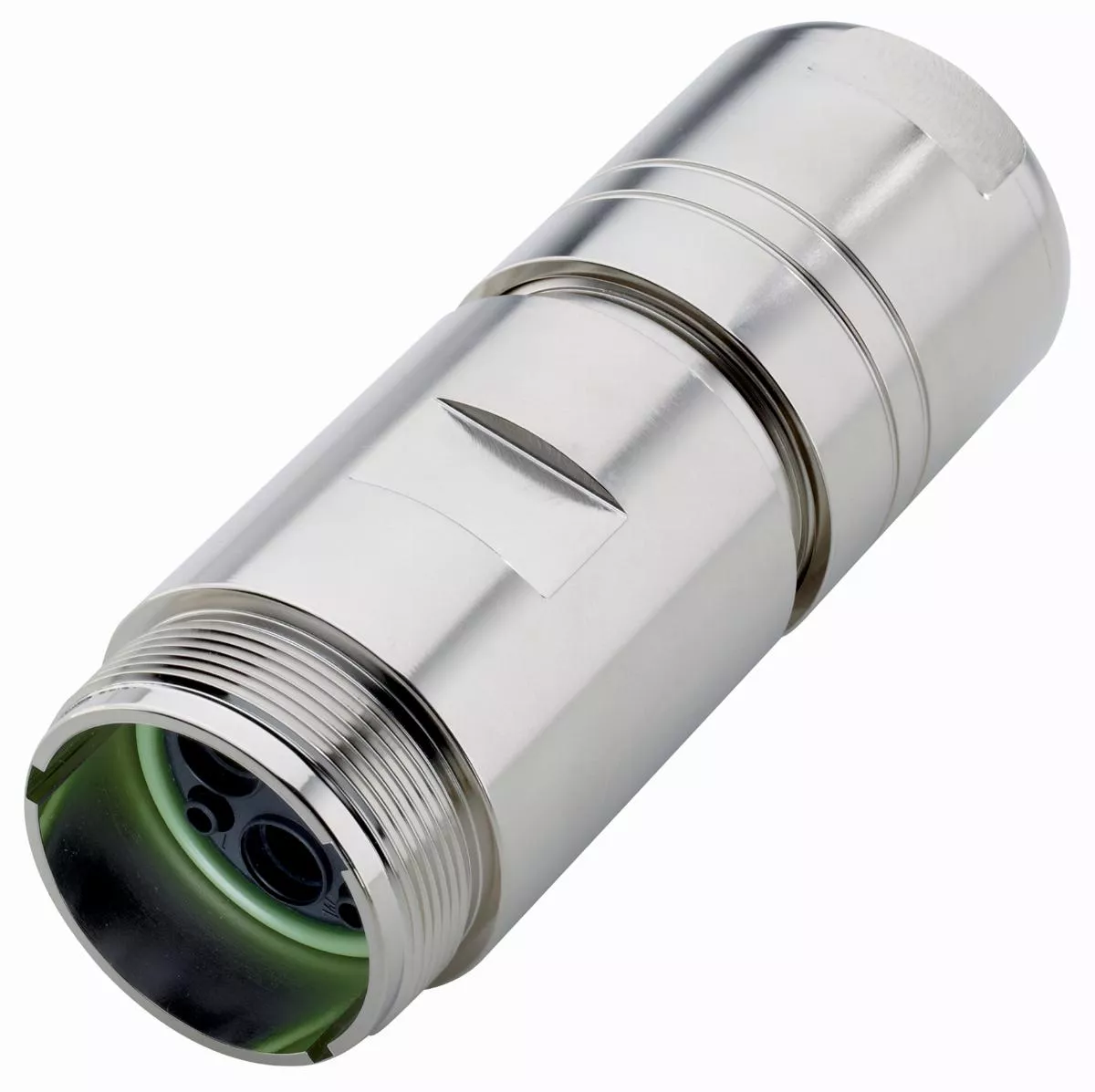

EPIC POWER LS3 F6 3+PE+4 25,0-36,0 (1) Złącza
Information | Value |
---|---|
Supplier | Lapp Kabel Sp. z o.o. |
Symbol | 44429351 |
GTIN(EAN) | 4044775043851 |
Price unit | piece |
Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Circular connector for field assembly (industrial connector) |
Rated voltage: | 630 V |
Housing material: | Aluminium |
Pollution degree: | 3 |
Degree of protection (IP), mounted: | IP67 |
With protective conductor: | yes |
Contact type: | Bus |
Type of electric connection: | Crimp connection |
Material of contact surface: | Gold |
Rated current In: | 150 A |
Ambient temperature: | -20 - 120 °C |
Type of locking: | Gland nut |
Thread size M: | 58 mm |
Type of housing: | Straight |
Connectable conductor cross section solid-core: | 10 - 50 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 10 - 50 mm² |
Connectable conductor cross section fine-strand without cable end sleeve: | 10 - 50 mm² |
Connectable conductor cross section multi-wired: | 10 - 50 mm² |
