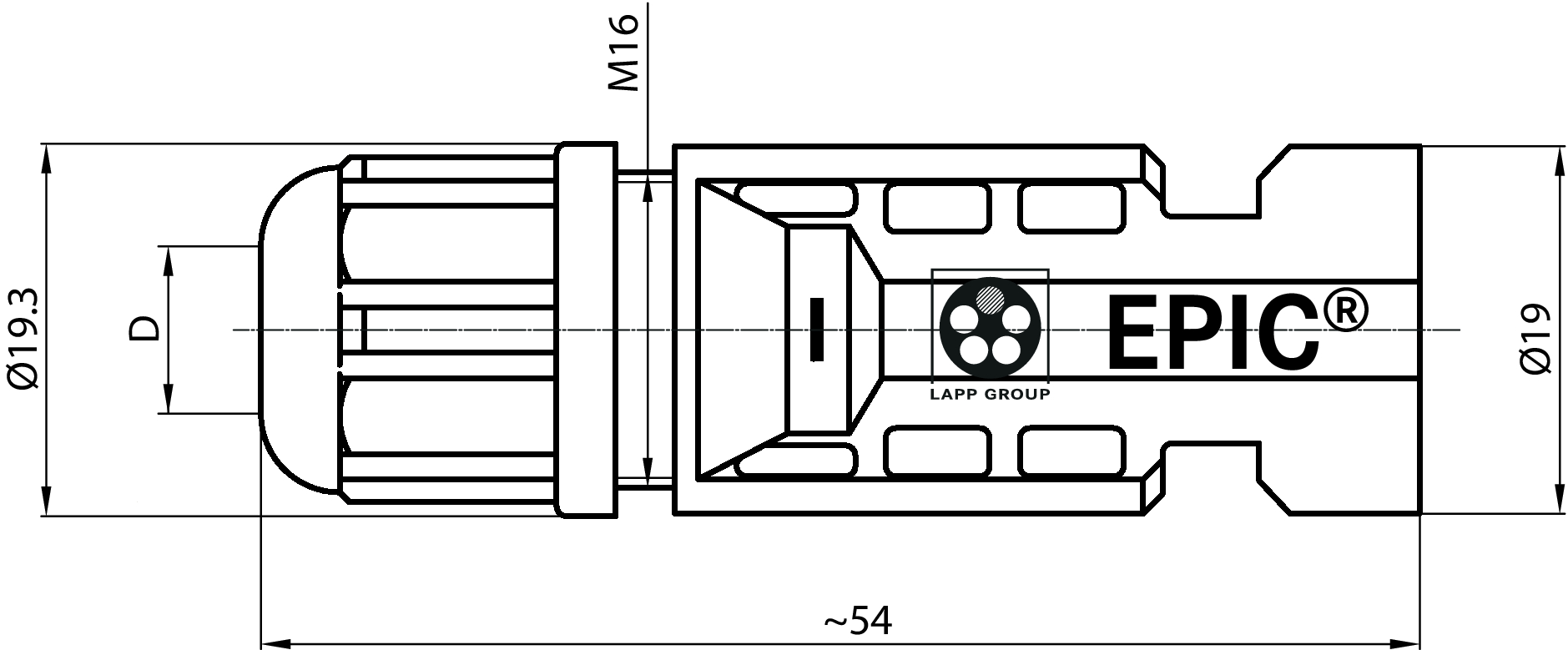

EPIC SOLAR 4 M 2,5mm˛ Złącza
Information | Value |
---|---|
Supplier | Lapp Kabel Sp. z o.o. |
Symbol | 44428200 |
GTIN(EAN) | 4044774878782 |
Price unit | piece |
Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Circular connector for field assembly (industrial connector) |
Rated voltage: | 1000 V |
Housing material: | Plastic |
Pollution degree: | 2 |
Degree of protection (IP), mounted: | IP67 |
With protective conductor: | yes |
Contact type: | Pin |
Type of electric connection: | Crimp connection |
Material of contact surface: | Tin |
Rated current In: | 22 A |
Ambient temperature: | -40 - 105 °C |
Type of locking: | Other |
Inflammability class of insulation material according to with UL94: | V0 |
Thread size M: | 4 mm |
Type of housing: | Straight |
Connectable conductor cross section solid-core: | 2.5 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 2.5 - 2.5 mm² |
Connectable conductor cross section fine-strand without cable end sleeve: | 2.5 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 2.5 - 2.5 mm² |
Diameter connector: | 19 mm |
