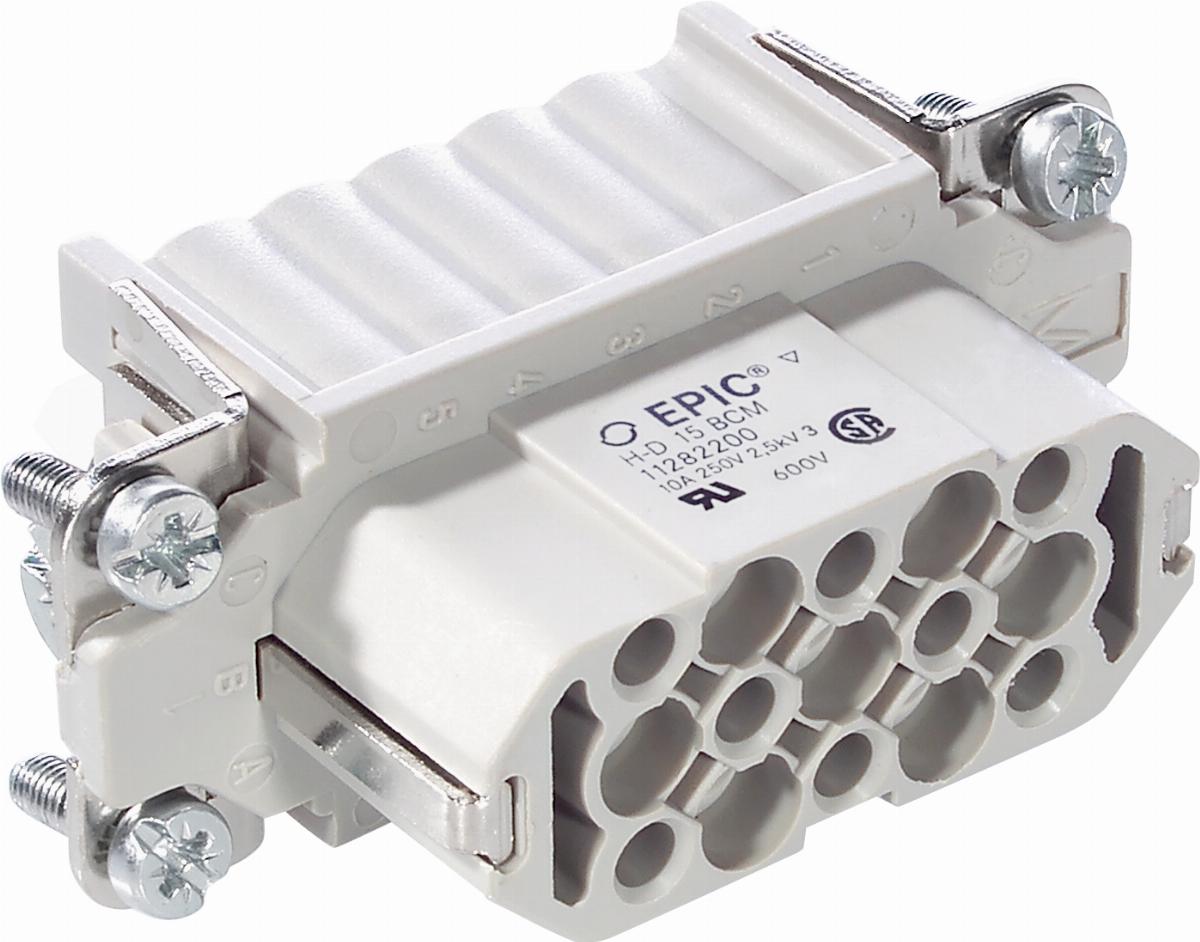

H-D 15 BCM FEMALE INSERT Złącza
Information | Value |
---|---|
Supplier | Lapp Kabel Sp. z o.o. |
Symbol | 11282200 |
GTIN(EAN) | 4044773598179 |
Price unit | piece |
Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Contact insert for rectangular connectors |
Rated voltage: | 250 V |
Pollution degree: | 3 |
With protective conductor: | yes |
Number of poles: | 15 |
Contact type: | Bus |
Type of electric connection: | Crimp connection |
Material of contact surface: | Silver |
Rated current In: | 10 A |
Ambient temperature: | -40 - 125 °C |
With wire protection: | yes |
Inflammability class of insulation material according to with UL94: | V0 |
Rated surge voltage: | 2.5 kV |
Over voltage category: | II |
Diameter plug-in contact: | 1.6 mm |
Contact insert without contacts: | no |
Connectable conductor cross section solid-core: | 0.14 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.14 - 2.5 mm² |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 0.14 - 2.5 mm² |
Material contact: | Brass |
Material connector insert: | Thermoplastic |
