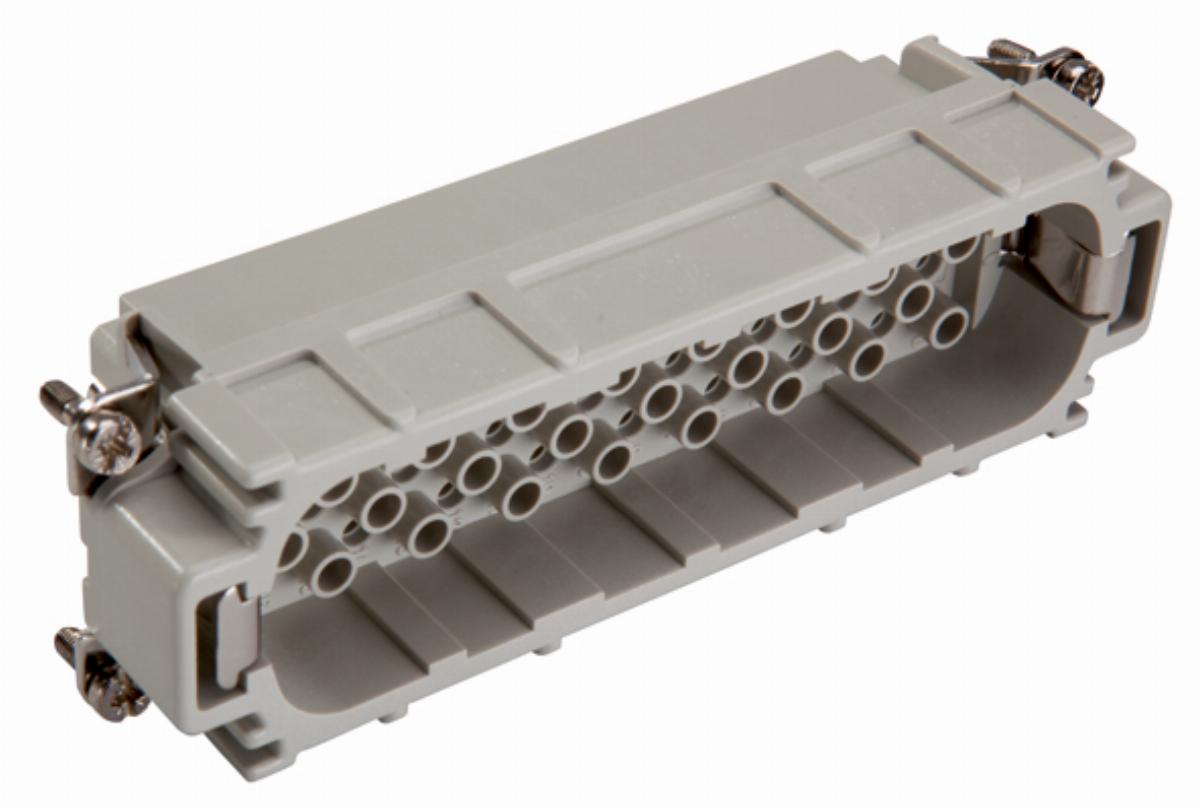

H-D 64 SCG MALE INSERT (A) Złącza
| Information | Value |
|---|---|
| Supplier | Lapp Kabel Sp. z o.o. |
| Symbol | 11270000 |
| GTIN(EAN) | 4044773100570 |
| Price unit | piece |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Contact insert for rectangular connectors |
| Rated voltage: | 250 V |
| Pollution degree: | 3 |
| With protective conductor: | yes |
| Number of poles: | 64 |
| Contact type: | Pin |
| Type of electric connection: | Crimp connection |
| Material of contact surface: | Silver |
| Rated current In: | 10 A |
| Ambient temperature: | -40 - 125 °C |
| With wire protection: | yes |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated surge voltage: | 2.5 kV |
| Over voltage category: | II |
| Diameter plug-in contact: | 1.6 mm |
| Contact insert without contacts: | no |
| Connectable conductor cross section solid-core: | 0.14 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.14 - 2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 0.14 - 2.5 mm² |
| Material contact: | Brass |
| Material connector insert: | Thermoplastic |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-06-21 13:02:46 |
| External links: |
