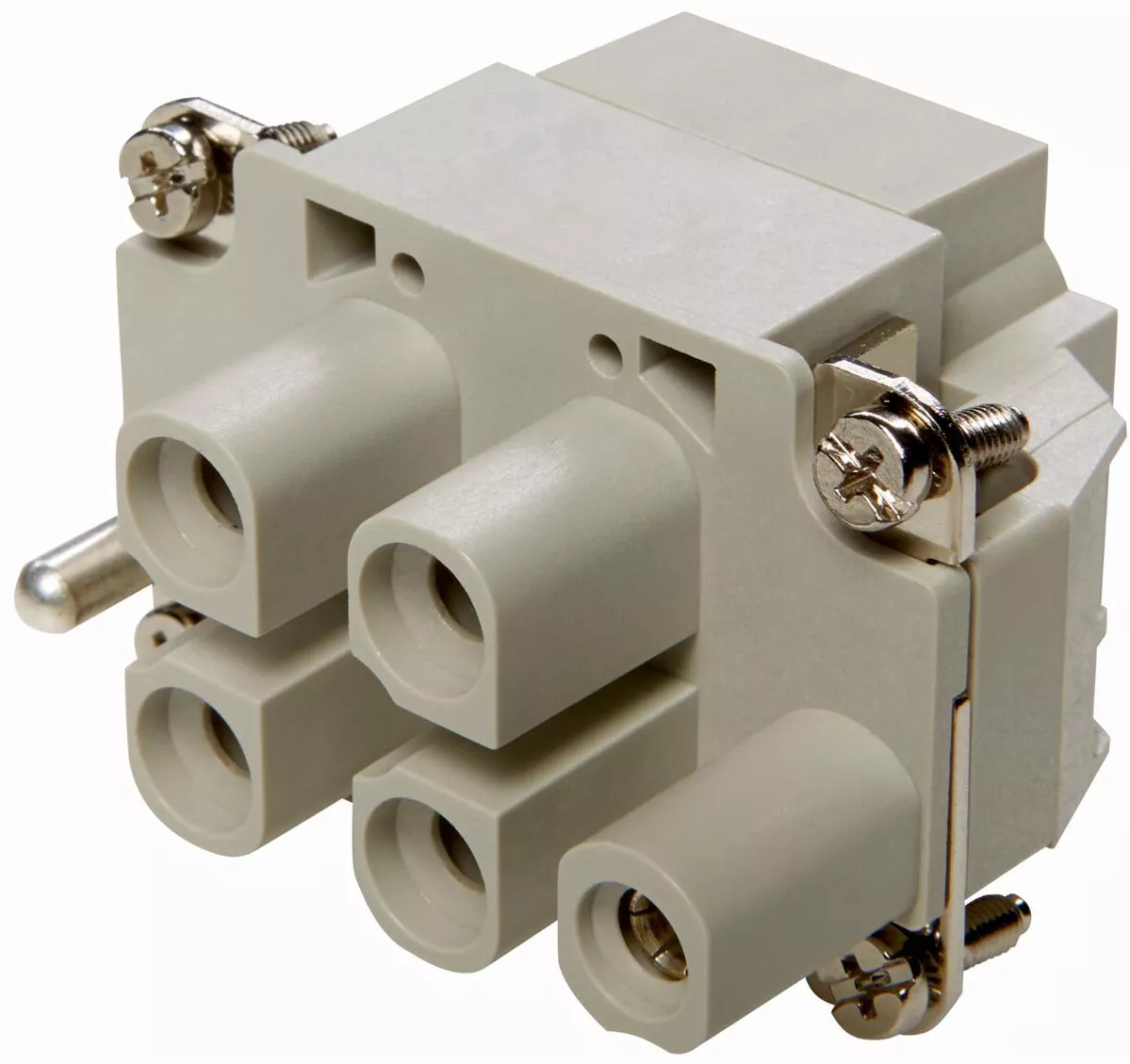

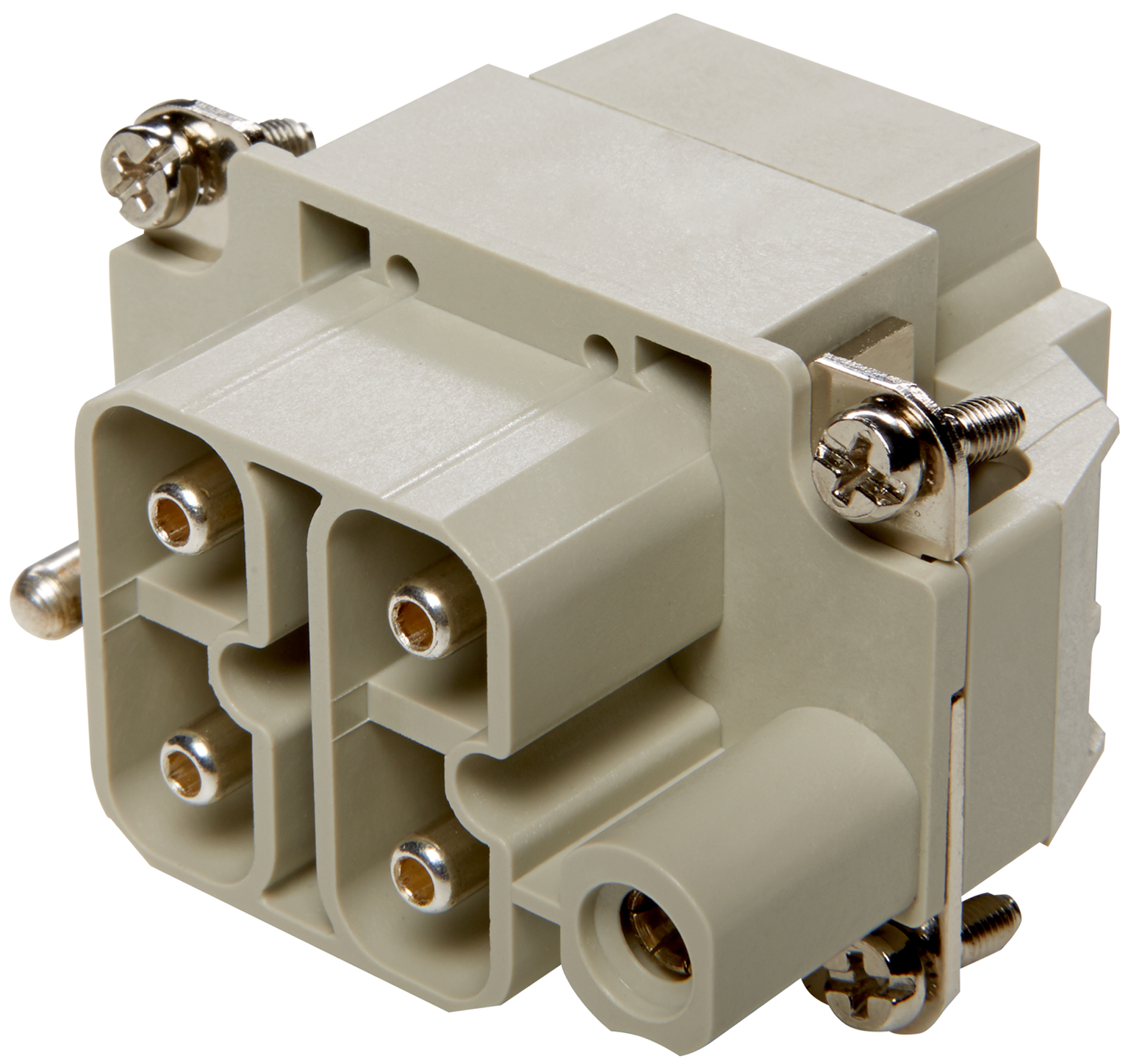

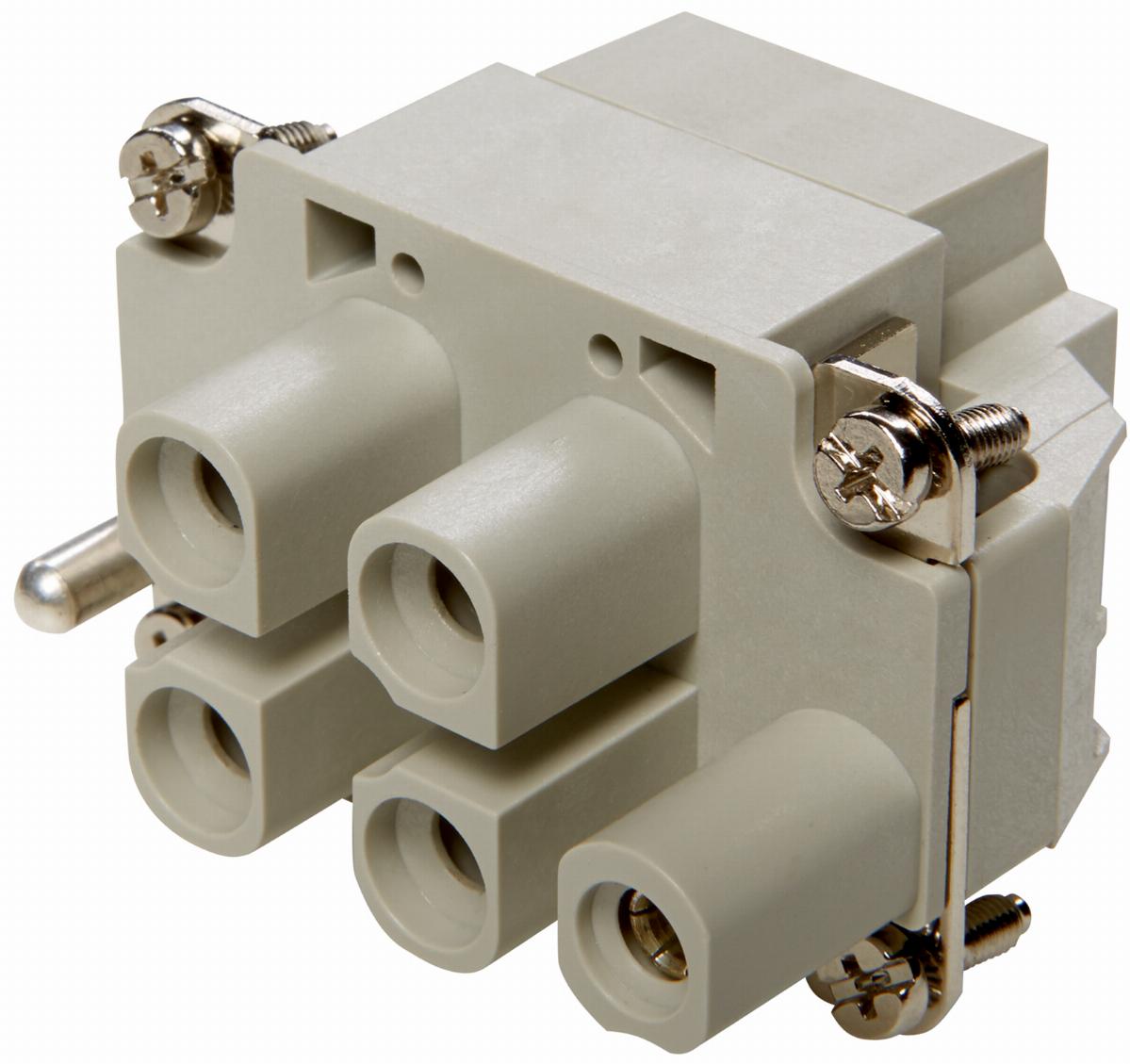

H-S 4+2xPE BAS Złącza
| Information | Value |
|---|---|
| Supplier | Lapp Kabel Sp. z o.o. |
| Symbol | 10407900 |
| GTIN(EAN) | 4044773612769 |
| Price unit | piece |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Contact insert for rectangular connectors |
| Rated voltage: | 1000 V |
| Pollution degree: | 3 |
| With protective conductor: | yes |
| Number of poles: | 4 |
| Contact type: | Bus |
| Type of electric connection: | Axial screw connection |
| Material of contact surface: | Silver |
| Rated current In: | 65 A |
| Ambient temperature: | -40 - 125 °C |
| With wire protection: | yes |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated surge voltage: | 8 kV |
| Over voltage category: | III |
| Diameter plug-in contact: | 4 mm |
| Contact insert without contacts: | no |
| Connectable conductor cross section solid-core: | 2.5 - 10.0 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 2.5 - 10.0 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 2.5 - 10.0 mm² |
| Connectable conductor cross section multi-wired: | 2.5 - 10.0 mm² |
| Material contact: | Other |
| Material connector insert: | Thermoplastic |
