PUSZKA ROZGAŁĘŹNA Z POKRYWĄ KO 180/LD_NA
Information | Value |
---|---|
Supplier | KOPOS Elektro Pl Sp. z o.o. |
Symbol | KO 180/LD_NA |
GTIN(EAN) | 8595568932600 |
Price unit | piece |
Catalog price | 72,29 zł (58,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

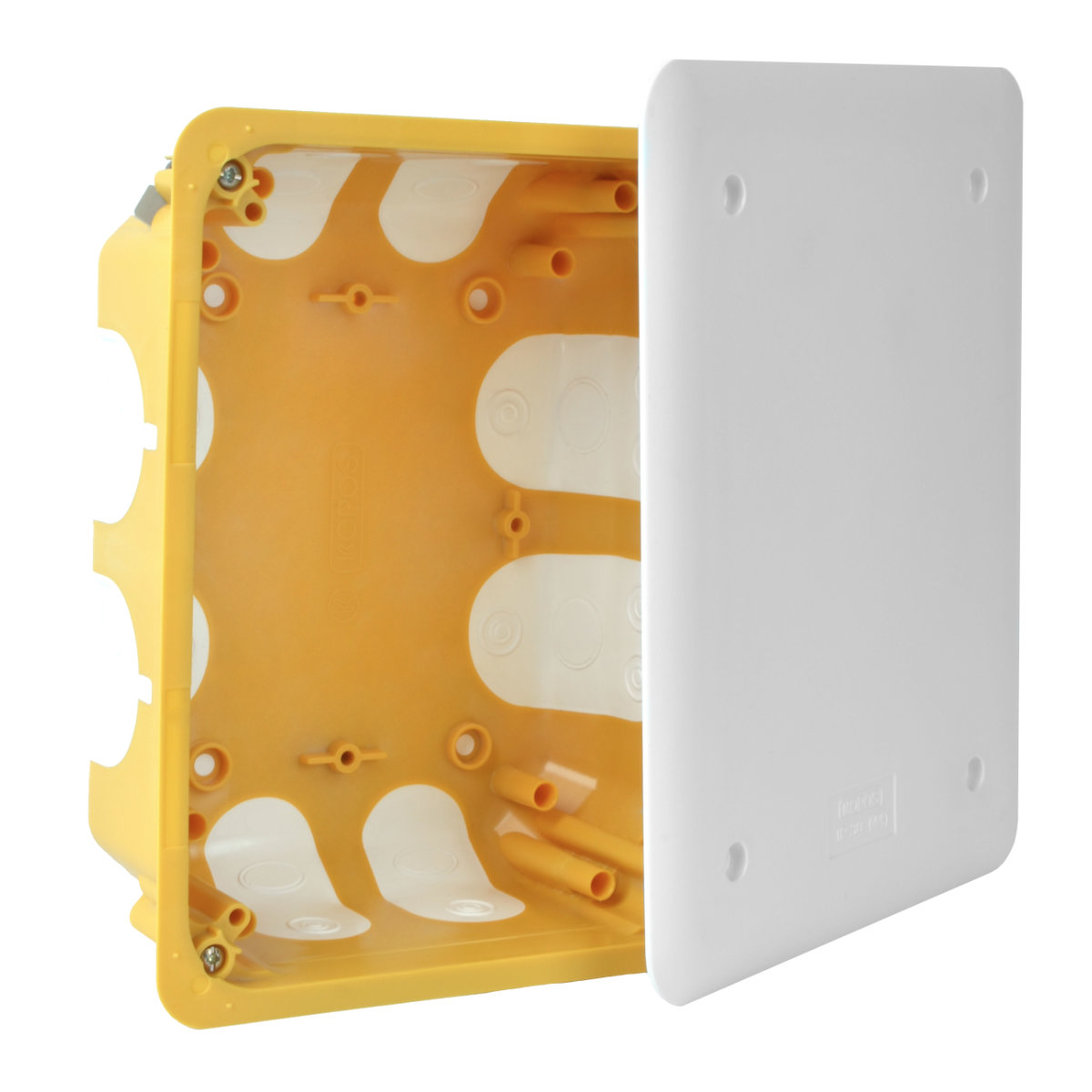

KO 180/LD - Skrzynka rozgałęźna do płyt gipsowo-kartonowych, konfiguracja NA, kolor ochry, opakowanie - 20 sztuk - wystarczająca ilość miejsca dla bardziej rozległych instalacji, otwory wlotowe wykonane z elastycznego materiału, szczelność zapewniona nawet przy włożonym kablu lub rurze, nadaje się do domów niskoenergetycznych lub pasywnych, śruby przyrządów są wyposażone w gwint dwugwintowy dla łatwiejszego montażu
Additional features:
Information | Value |
---|---|
Net weight: | 220 g |
ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
Mounting method: | Hollow wall |
Shape: | Rectangular |
Construction type: | Cable junction box |
Model: | Single |
Equipped with: | None |

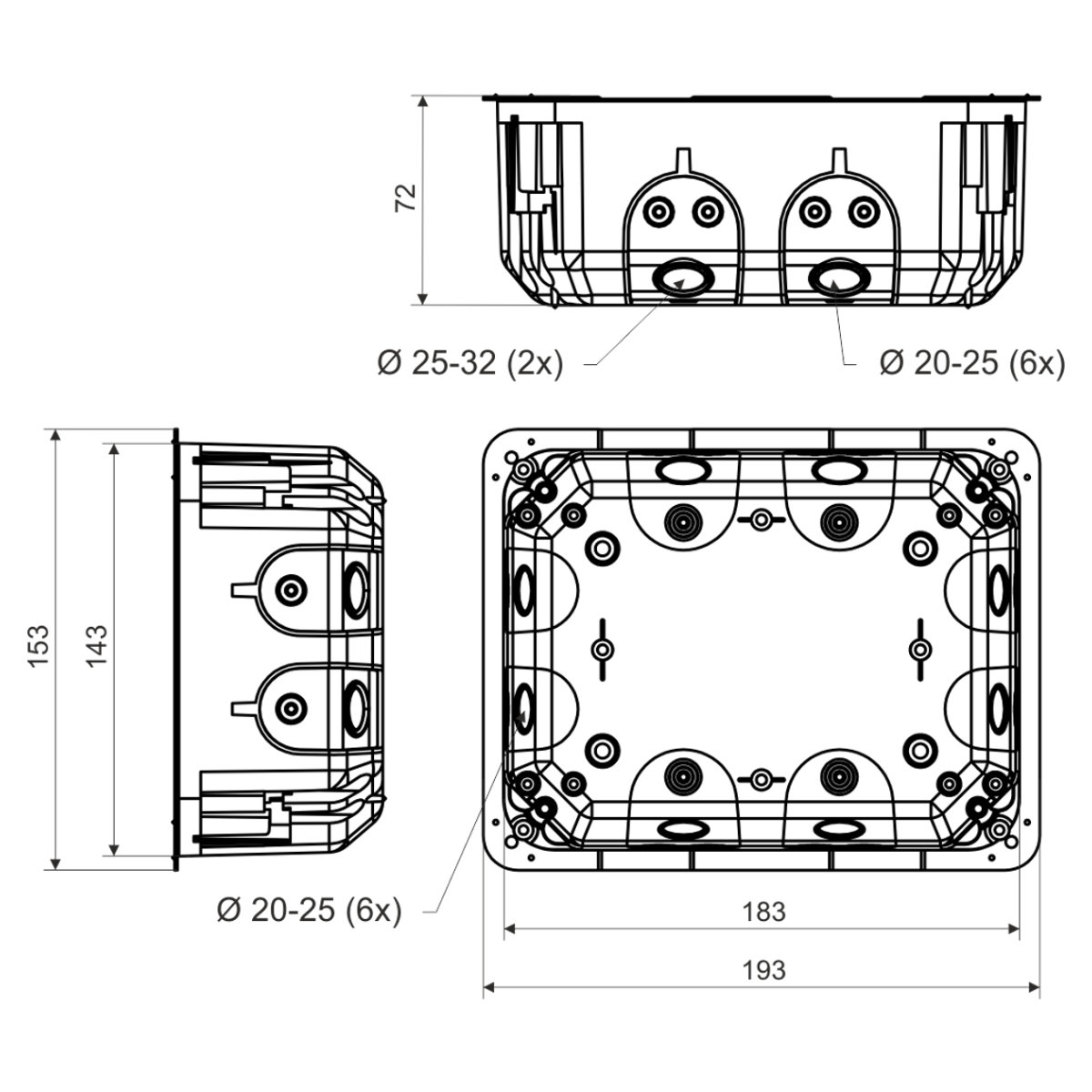

Length: | 183 mm |
Width: | 143 mm |
Depth: | 72 - 72 mm |
Inner depth: | 69 mm |
Mounting switching equipment: | Screwing |
With screws: | yes |
Housing feed-through by break-out opening: | no |
Housing feed-through by seal membrane: | yes |
Housing feed-through by nozzle: | no |
Housing feed-through by step membrane: | no |
For tube diameter: | 32 mm |
Suitable for cable diameter: | 6 - 32 mm |
Pipe locking: | no |
Pipe locking optional: | no |
Inlet from the rear: | yes |
Number of inlets: | 24 |
Material: | Plastic |
Halogen free: | no |
Colour: | Yellow |
Degree of protection (IP): | IP30 |
Cover attachment: | Screwed |
Circuit integrity: | None |
With screening: | no |
Air tight: | yes |
Max. conductor cross section: | 4 mm² |
Luminaire hook mounting: | no |
