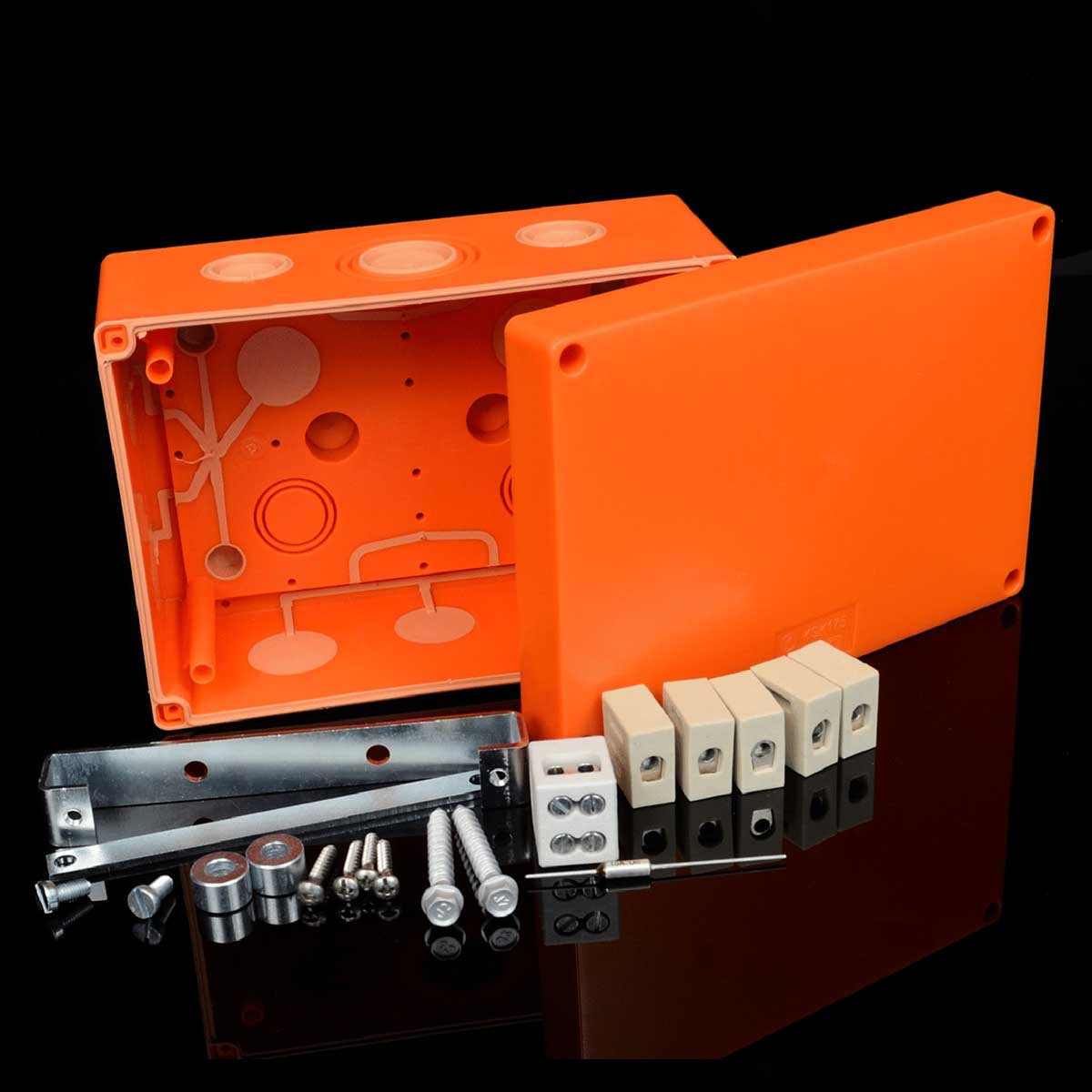

PUSZKA IP66 - KSK 175 PO10P (1/22 szt.)
| Information | Value |
|---|---|
| Supplier | KOPOS Elektro Pl Sp. z o.o. |
| Symbol | KSK 175_PO10P |
| GTIN(EAN) | 8595568924360 |
| Price unit | piece |
| Catalog price | 460,61 zł (374,48 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszka instalacyjna KSK 175 PO10P z zachowaną funkcjonalnością podczas pożaru, sklasyfikowana zgodnie z ZP 27/2008, DIN 4102-12, STN 920205.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 640 g |
| ETIM class: | Terminal box |
| Number of connection clamps: | 5 |
| Max. conductor cross section: | 10 mm² |

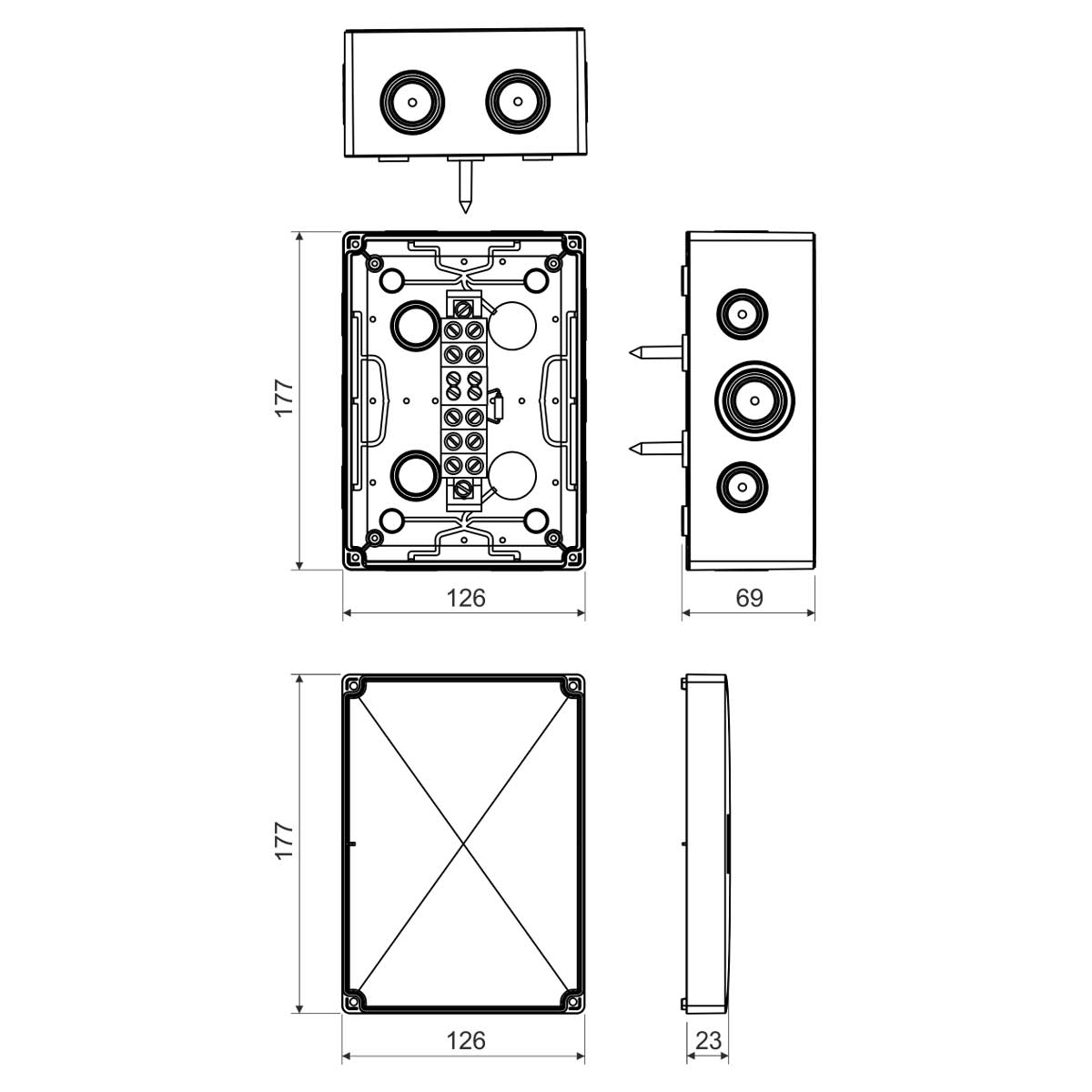

| Length: | 176 mm |
| Width: | 126 mm |
| Depth: | 92 mm |
| Mounting method: | Surface mounted |
| Extension possible: | no |
| Number of inlets: | 23 |
| Type of inlet: | Trimmable step membrane |
| Material: | Plastic |
| Halogen free: | yes |
| Colour: | Orange |
| Degree of protection (IP): | IP66 |
| With cover: | yes |
| Cover attachment: | Screwed |
| With transparent cover: | no |
| Sealable: | no |
| Circuit integrity: | E90 |
| Surface protection: | Untreated |
| Rated insulation voltage Ui: | 400 V |
| Operating temperature: | -5 - 60 °C |
| Shape: | Rectangular |
| RAL-number: | 2004 |
| Connection type: | Screwed terminal |
